Labomed Inc.

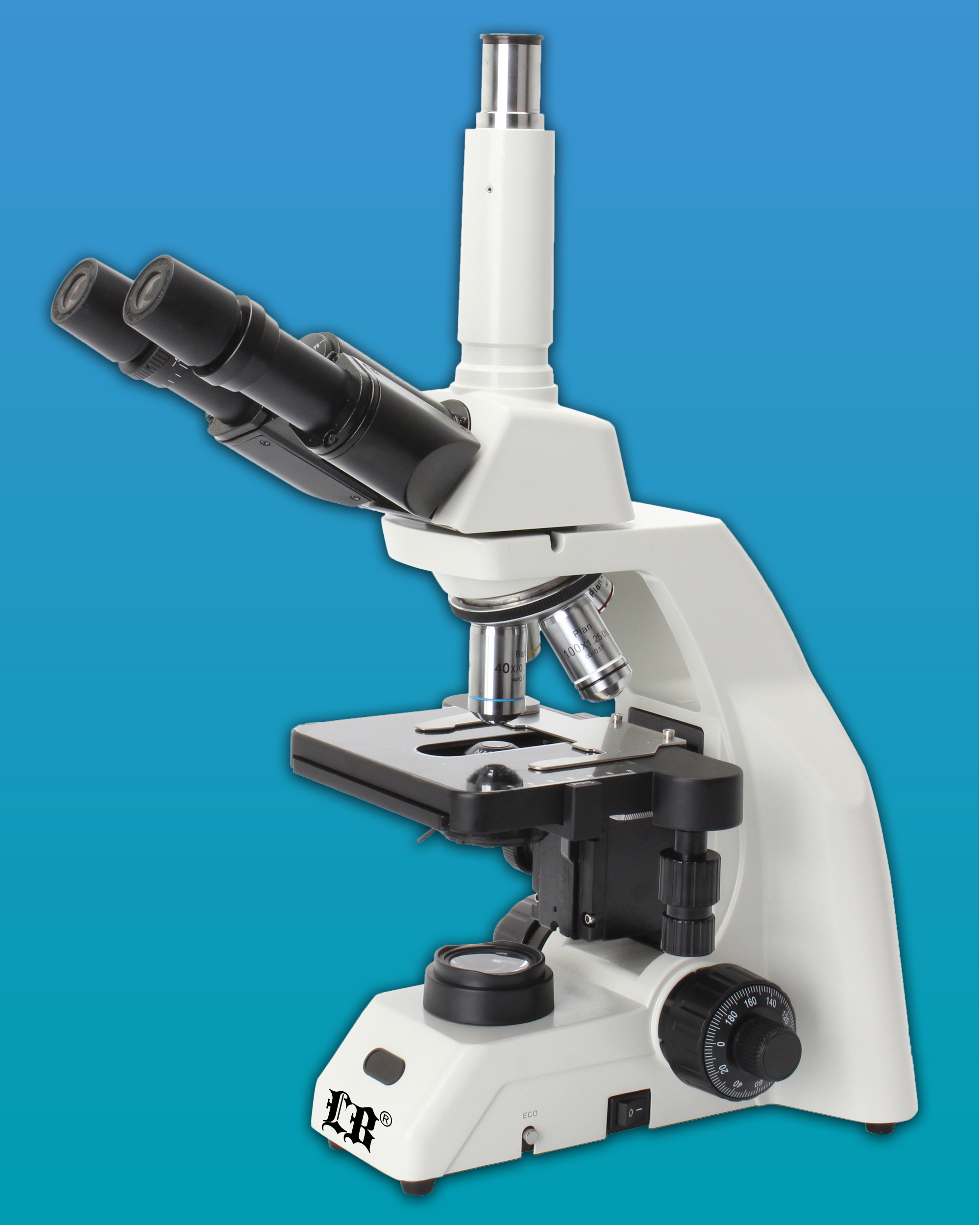

LB-253 Trinocular Biological Medical Microscope

with Wide Field Eyepiece

LB-253 Trinocular Biological Medical Microscope with Wide Field Eyepiece microscopes are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


  • High contrast and sharp image with high quality optical system.
  • Low environment requirement with Anti-mould technology.
  • Comfortable operation with low position coarse and fine adjustment knobs.
  • ECO function is optional, automatically turn off after 15 mins of no use.
  • With cord rest on the back, making the working table clean and tidy.

Top of the Page

Technical Specifications


LB-253 Trinocular Biological Medical Microscope with Wide Field Eyepiece is an ideal instrument in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.

LB-253 Specification
Optical System Infinite optical system
Viewing Head Seidentopf Trinocular Head, 30°Inclined, Interpupillary Distance 47-78 mm
Eyepiece WF 10X/20mm
Nosepiece Backward Quadruple Nosepiece
Objective Infinite Semi-Plan Objective 4×, 10×, 40×, 100×
Focusing Coaxial Coarse and Fine Adjustment, Moving Range 0.002mm, Fine Division 20mm
Condenser Abbe Condenser, NA1.25
Stage Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm
Illumination 1W S-LED /6V20W Halogen Lamp
Package 1pc/carton, 36*26*46mm, gross weight: 8kg


Sample Images



click here to fill out the Information Request Form
