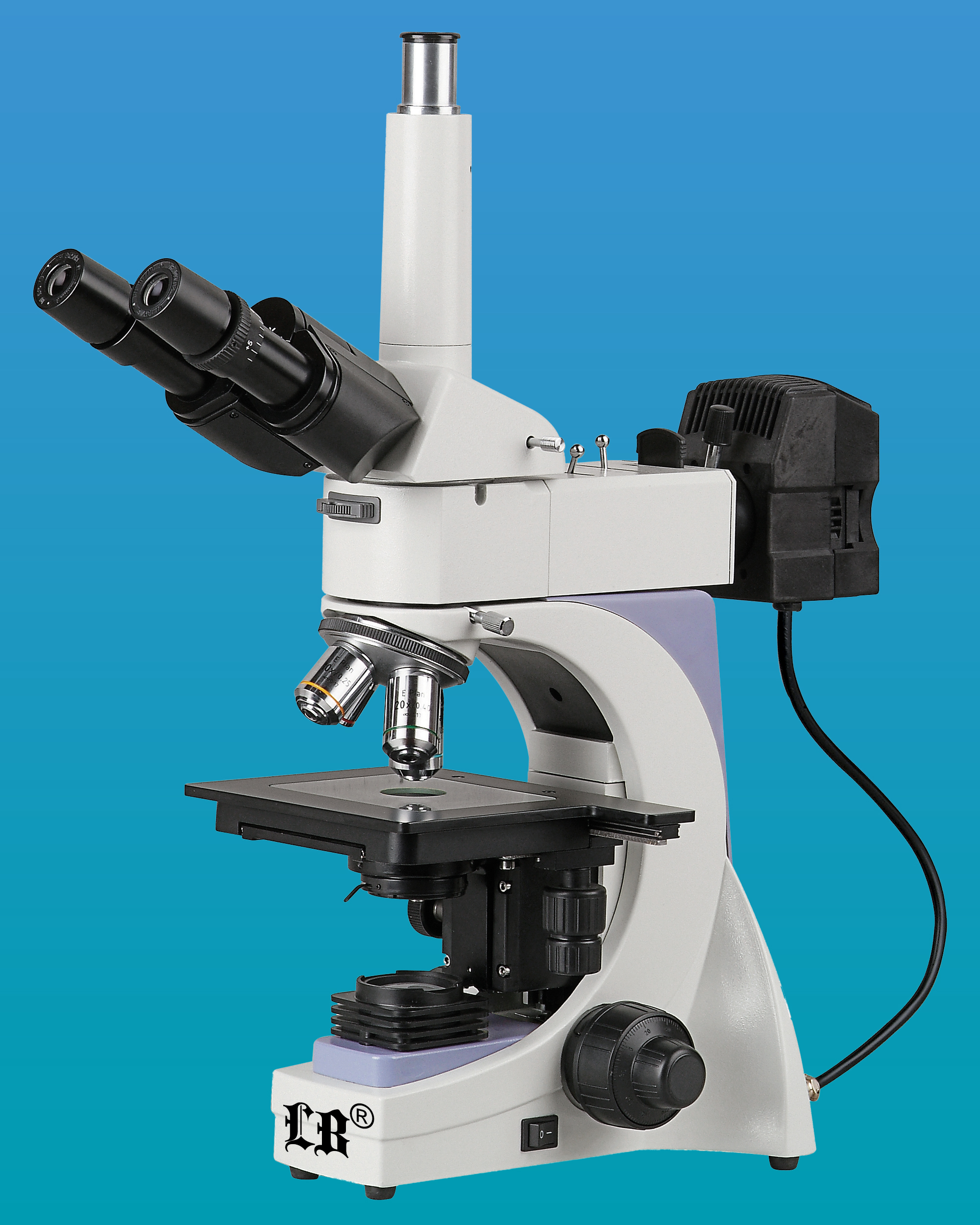

LB-603 Trinocular Metallurgical Microscope with Infinite Optical System

LB-603 Trinocular Metallurgical Microscope with Infinite Plan Optical System (Infinity Color Corrected System) is a very professional microscope which is specially designed for metallurgical analysis. With excellent optical system, an Ingenious stand and convenient operation, it will be your best choice.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Excellent infinite Optical System. High Magnification Objective with Long Working Distance (up to 3.7mm for 40X Objective)
  • Comfortable and Enjoyable Operation with low and Repetitive Position Control knob
  • Triangle Structure makes it much steadier and less working space occupation
  • Easy, Safe and Reliable Lamp Replacement Device



Top of the Page



Technical Specifications

Applications

LB-603 Trinocular Metallurgical Microscope with Infinite Optical System is widely used for PCB board, LCD display and metal structure observation and inspection. It also can be used for analysis of mineral stones.

Viewing Head

Seidentopf, Trinocular Head, inclined at 30°

Eyepiece

WF10×/18

Objective

Infinitive plan achromatic objectives
4×/0.1/∞/- WD25.4mm
10×/0.25/∞/- WD11.0mm
40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double layer mechanical stage150×140mm/75×50mm

Focusing

Coaxial Fine & Coarse Adjustment

Illumination

Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters Blue, Green, Yellow & Ground Glass

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
