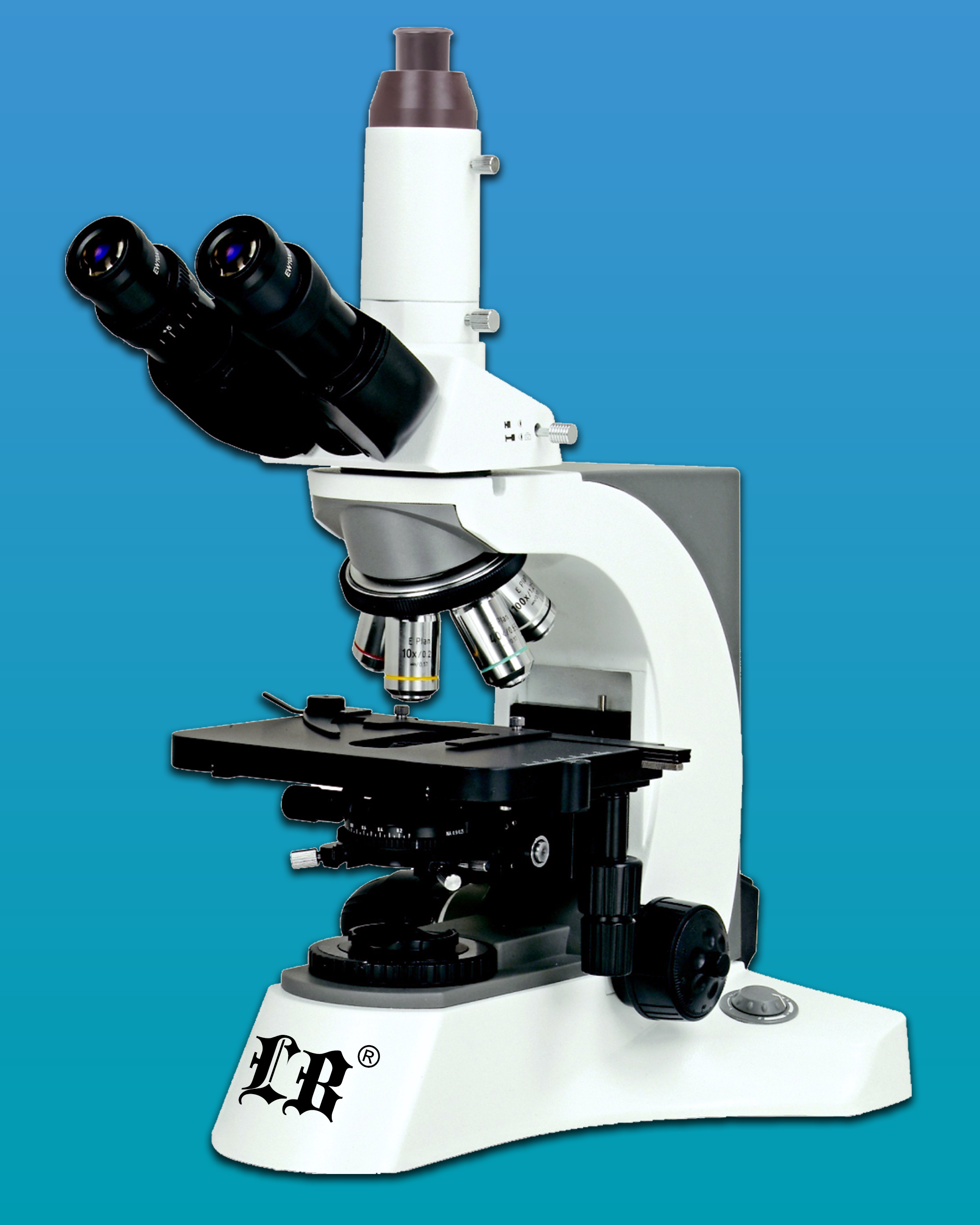

LB-280 Research Trinocular Biological Microscope with Infinite Optical System

LB-280 Research Trinocular Biological Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) is a high level microscope which is specially designed for laboratory study. It adopts an Infinite optical system, an infinity color corrected system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory work enjoyable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

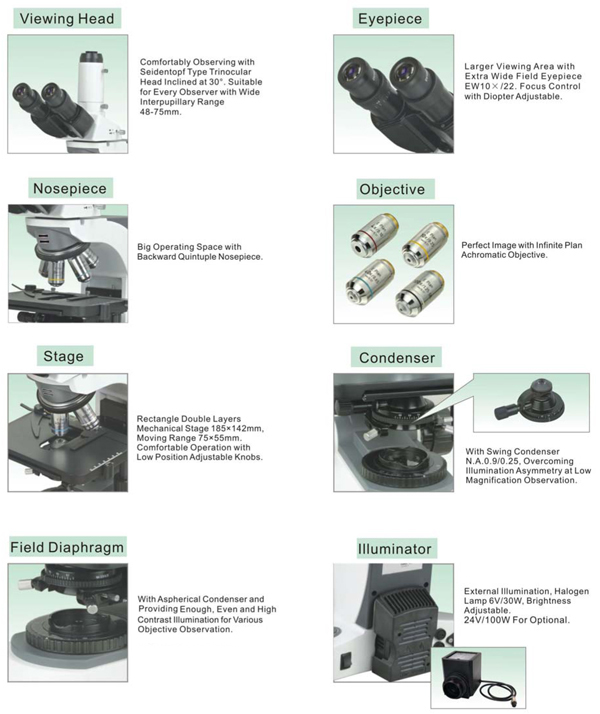

Features

  • With Infinite Optical System, providing excellent optical quality and making Image perfect.
  • With low and forward position of C&F coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, and reasonable ergonomic design, making operators feel more comfortable and effective.


Top of the Page

Optional Accessories
(must be ordered separately)

Technical Specifications

Applications

LB-280 Research Trinocular Biological Microscope with Infinite Optical System is an ideal instrument for the biological, histological, pathological, bacteriology, immunization, and pharmacy fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Optical System

Infinite Optical System

Viewing Head

Seidentopf type Trinocular Head, Inclined at 30°, Interpupillary 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10×/ 22

Nosepiece

Backward Quintuple Nosepiece (Can be supplied with backward sextuple nosepiece (optional))

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Objective

Infinite Plane Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Condenser

Swing-out Condenser NA 0.9/ 0.25

Stage

Double Layers Mechanical Stage 185×142mm, moving range 75×55mm

Illumination

External Illumination, Aspherical Collector, Halogen Lamp 6V/30W

Filter

Blue Filter Green Filter

Dimension & G. W.

43.5cm*39.5cm*59cm, 14kg



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
