Labomed Inc.

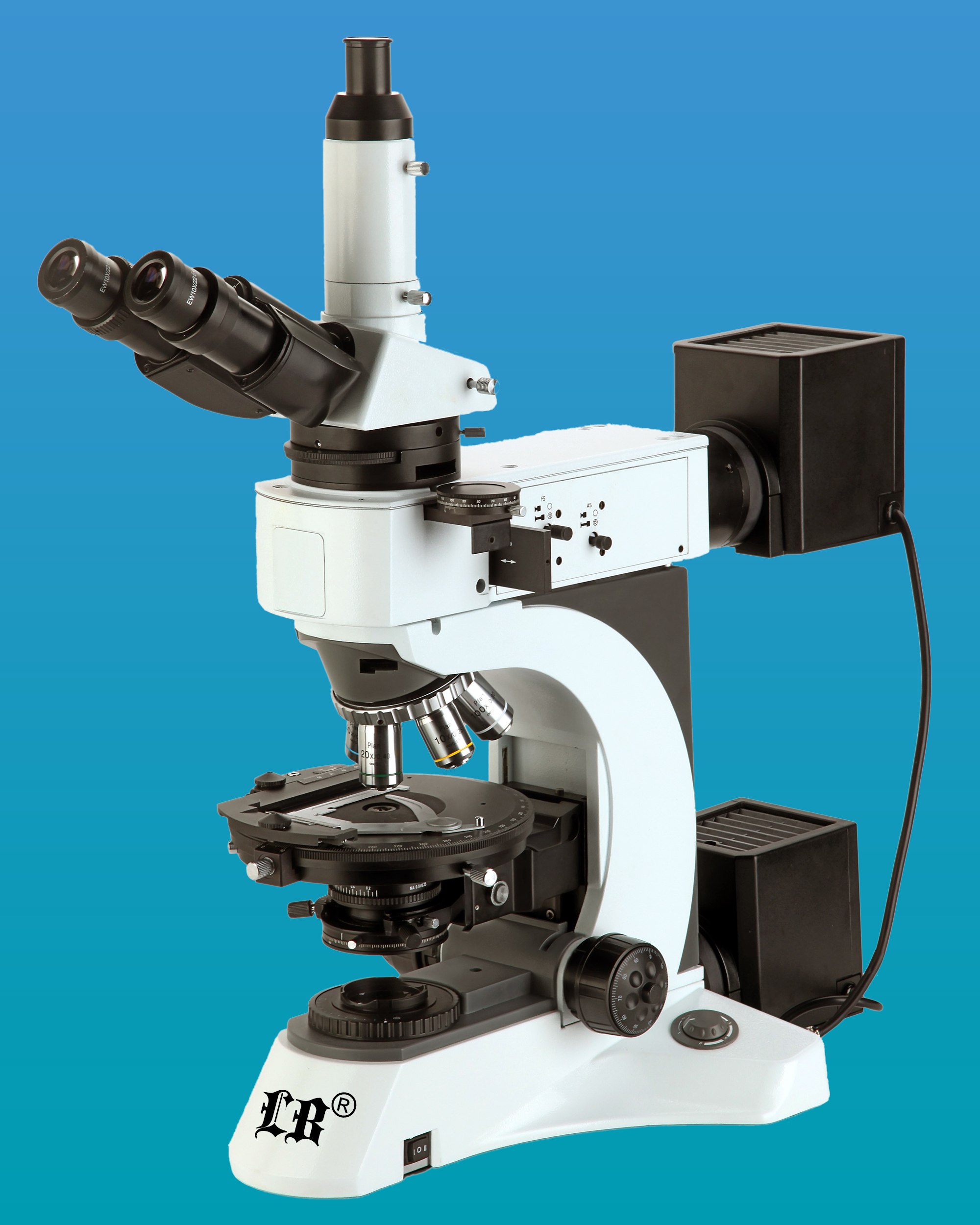

LB-594 Transmitted and Reflected Polarizing Trinocular Microscope
with Infinite Optical System

FOR USE WITH NON-TRANSPARENT SPECIMENS

PDF Brochure - Page 1

PDF Brochure - Page 2

LB-594 Transmitted and Reflected Polarizing Trinocular Microscopes with Infinite Optical System (Infinity Color Corrected System) are  specifically  designed  for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. They can be used to analyze and identify various minerals and specimens, they can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
  • Supply high quality and contrast image with special strain free objectives.
  • Can be used for single polarization, orthogonal polarization and conoscopic observation.
  • Reflected and transmitted illumination, 24V/100W long life halogen lamp.
  • Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.
  • High  quality  professional  polarizing  microscope  for  geology,  petroleum, chemicals,  mining, metallurgy, pharmacy, polymer, LED and other field.

Top of the Page

Applications

LB-594 Transmitted, Reflected and Polarizing Trinocular Microscope with Infinite Optical System can be used for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production.

Technical Specifications

Optical System: Infinite Optical System
Viewing Head: Seidentopf trinocular head, Inclined at 30°, Interpupillary 48-75mm
Eyepiece: Plan Eyepiece EW10×/22
Plan eyepiece with scale of crosshair, Plan eyepiece with crosshair, Plan eyepiece with gridding
Strain-Free Plan
Achromatic Objective:

5×/0.12/∞/-, WD 15.5mm

10×/0.25/∞/-, WD 10.0mm

20×/0.4/∞/0, WD 5.8mm

50×/0.75/∞/0, WD 0.32mm

100×/0.8/∞/0, WD 2mm

40×/0.65/∞/0.17, WD 0.54mm

100×/1.25/∞/0.17, WD 0.13mm

Nosepiece: Backward Quintuple nosepiece, Center Adjustable
Analyzer:

0°-360° rotatable  analyzer  with  gradation,  minimum gradation: 0.1°

Conoscopic Observation: Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable
Optical Compensator: λ Slip(first class red), 1/ 4λ Slip, Quartz wedge
Polarizing Rotatable Stage:

Diameter  Φ170mm,  center  adjustable,  360°  scale,  minimum division 1°, minimum reading vernier scale 6’, 45° click stop knob

Condenser: Strain free swing out condenser NA0.9/0.25
Focusing: Coaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation
Polarizer: Transmitted: 360°Rotatable, 0°position adjustable
Reflected: Fixed
Illumination: Reflected light: 24V/100W Halogen lamp, brightness adjustable
Transmitted light: 24V/100W Halogen lamp, brightness adjustable
Filter: Blue filter Φ45mm

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
