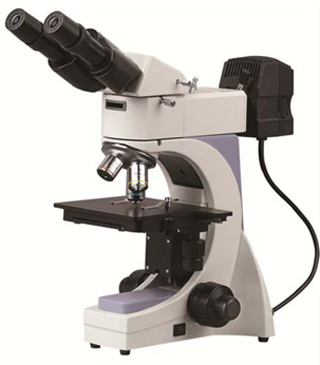

LB-600 Metallurgical Microscope

Labomed Inc.

LB-600 Metallurgical Microscope is a very professional microscope which is specially designed for metallurgical analysis. With excellent optical system, an Ingenious stand and convenient operation, it will be your best choice.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

Excellent infinite Optical System. High Magnification Objective with Long Working Distance (up to 3.7mm for 40X Objective)
Comfortable and Enjoyable Operation with low and Repetitive Position Control knob
Triangle Structure makes it much steadier and less working space occupation
Easy, Safe and Reliable Lamp Replacement Device

Top of the Page

Technical Specifications

Applications

LB-600 Metallurgical Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. It also can be used for analysis of mineral stones.

Viewing Head	Binocular Head
	Trinocular Head
Eyepiece	WF10×/18

Objective	Infinitive plan achromatic objectives	4×/0.1/∞/- WD25.4mm
		10×/0.25/∞/- WD11.0mm

		40×/0.60/∞/0 WD3.7mm

Nosepiece	Quadruple Nosepiece
Stage	Double layer mechanical stage150×140mm/75×50mm
Focusing	Coaxial Fine & Coarse Adjustment
Illumination	Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Ground Glass
