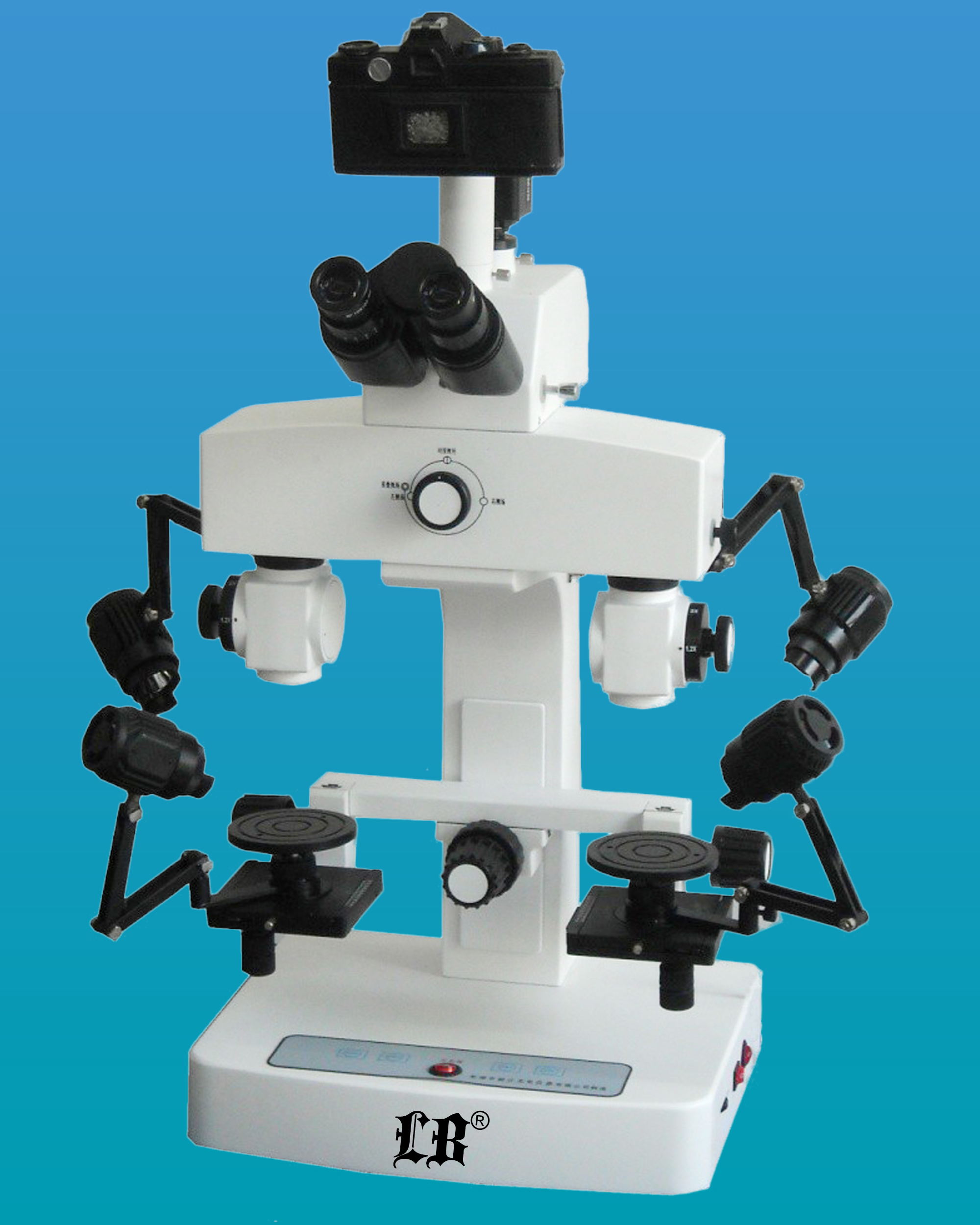

LB-1000 Comparison Microscope

LB-1000 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, docking and overlapping methods, two (or more) objects can be compared together. LB-1000 has clear image, high resolution, and can identify tiny differences between objects accurately. It is basically used for forensic science and police departments.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
  • With changeable objectives, right and left objectives can be adjusted to consistency.
  • Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-54mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° - 45 °.
  • Two stages can be adjusted horizontally at the same time, moving range: 0-54mm.
  • Coarse lifting range of 0 - 60mm.
  • Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable.
  • Polarizing attachment(optional), used to eliminate stray and glare light. (optional)
  • Coaxial illumination device(optional), used for observation of deep hole, small hole and smooth surface. (optional)
  • With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
  • With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.

Top of the Page

Technical Specifications

Total Optical
Magnification

3.8×~115×(can be extended to 345×)

Viewing Head

Seidentopf Trinocular Head, Inclined at 45°, Interpupilary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 22, diopter adjustment
Wide Field Eyepiece WF20×/ 12, diopter adjustment

Comparison
Mode

Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation

Objective

0.8×, 1.25×, 2×, 3.2×, 4.8× changeable objective

Stage

Manually operate stage, moving range: X-54mm, Y-54mm, Z-54mm
Two stage horizontal moving range: 54mm, The coarse vertical lifting range: 60mm

Illumination

High power LED illumination, brightness and angel adjustable
Side illumination, 12V/50W air cooled reflecting lamps
Polarizing attachment (optional)
Coaxial illumination device (optional)

Attachment

Photo attachment for DSLR digital camera(Nikon, Canon)

Video Adapter

C -mount for digital cameras

Eyepieces and Objective Parameters



Objective



Bridge

Magnification/FOV(mm)

Video
Attachment

Attachment

Working Distance
(mm)

10× Eyepiece

20× Eyepiece

0.8×





1.2×

9.6×/φ28

19.2×/φ17









2.5×





101

1.25×

15×/φ18

30×/φ11

24×/φ11

48×/φ7

3.2×

36×/φ7

77×/φ4.5

4.8×

58×/φ4.2

115×/φ2.3

Note: With 0.8× objective, 10× eyepiece, the magnification=0.8×*1.2×*10×=9.6×

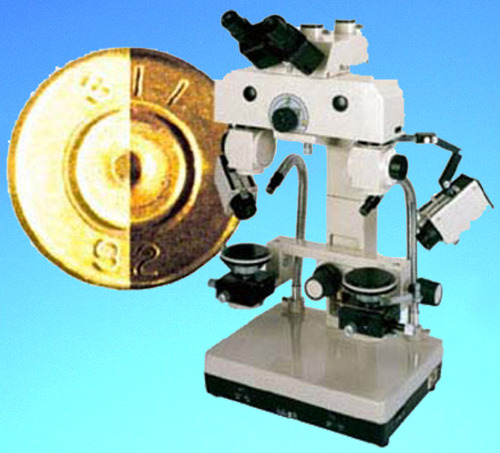

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
