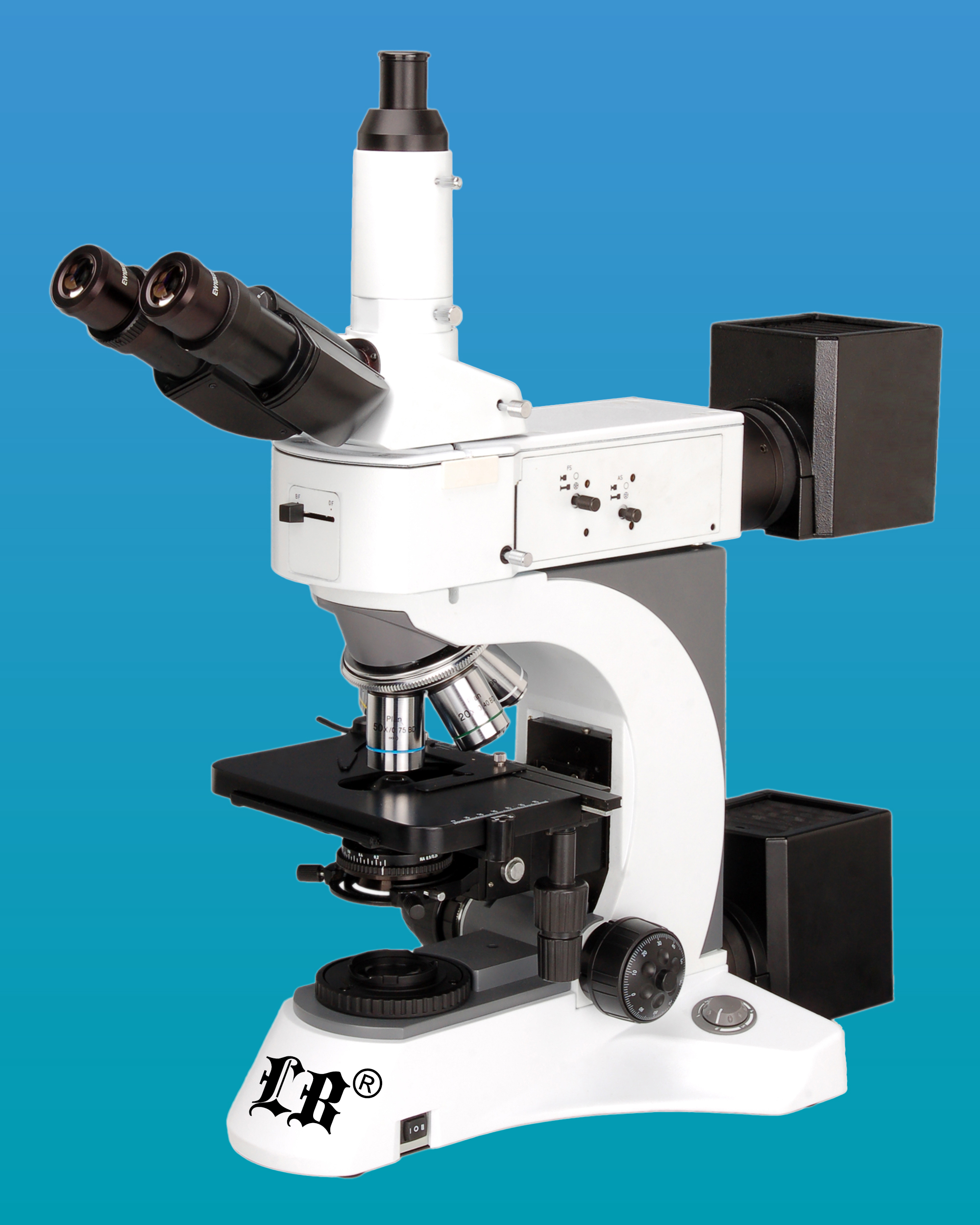

LB-620 Trinocular Laboratory Metallurgical Microscope with Bright Field, Dark Field with Infinite Optical System

LB-620 Trinocular Laboratory Metallurgical Microscope with Extra Wide Field, Bright Field and Dark Field with Infinite Plan Optical System (Infinity Color Corrected System) is a high level professional microscope which is specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, it will be your best choice.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Laboratory metallurgical microscope, including bright field and dark field systems.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.

Top of the Page

Technical Specifications

Applications

LB-620 Trinocular Laboratory Metallurgical Microscope with Extra Wide Field, Bright Field and Dark Field with Infinite Plan Optical System (Infinity Color Corrected System) is widely used in institutes and laboratories to observe and identify the structure of various metals and alloys. It also can be widely used in the electronics, chemical and instrumentation industry to observe opaque materials and transparent materials, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Optical System

Infinite optical system

Viewing Head

Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm

Eyepiece

extra wide field eyepiece EW10×/22

Infinite plan Achromatic Objective

5×/ 0.12/ ∞/ - (BF)

10×/ 0.25/ ∞/ - (BF/DF)

20×/ 0.4/ ∞/ 0 (BF/DF)

50×/ 0.75/ ∞/ 0 (BF)

100×/ 0.9/ ∞/ 0 (BF)

40×/ 0.65/ ∞/ 0.17

100×/ 1.25/ ∞/ 0.17

Maximum Sample Height

30mm

Reflected light

24V/100W Halogen light, lightness adjustable

Kohler illumination and aspherical condenser

Blue, Green, Yellow and Ground glass

Transmitted light

Swing-out condenser NA0.9/ 0.25

24V/ 100W Halogen light and aspherical condenser

Blue filter

Focusing

Coaxial coarse and fine adjustment, fine division 1μm

Nosepiece

Backward quintuple nosepiece



Stage

Double layer mechanical stage 186×138mm/ 74mm×50mm

Specimen preparation plate

Slide glass

\Optional Accessories
(must be ordered separately)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
