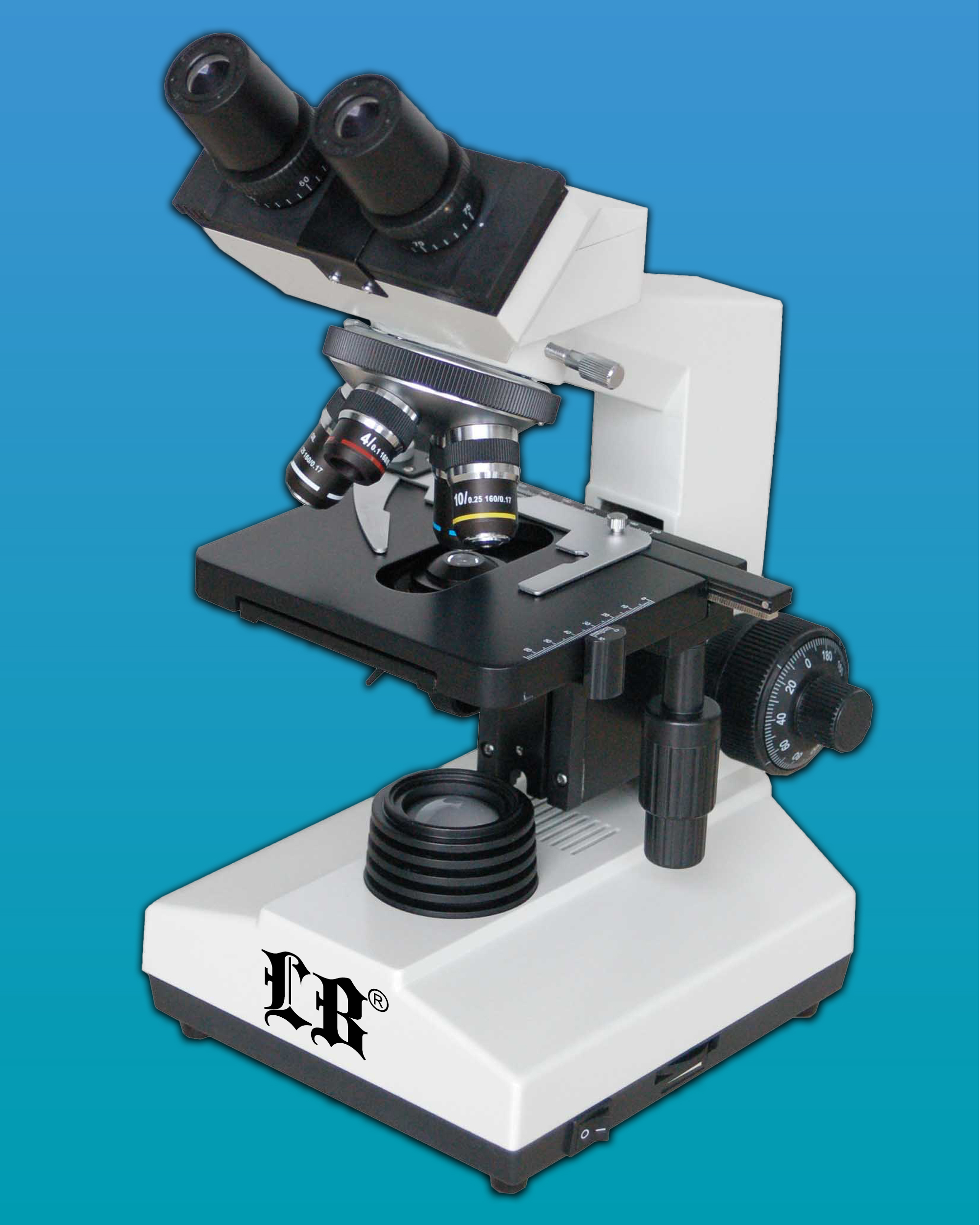

LB-234 Biological Microscope with Advanced Alignment, LED Illumination and Four Achromatic Objectives (4×, 10×, 40×, 100×)
With precision machining equipment and advanced alignment technology, LB-234 Binocular Biological Microscope with Advanced Alignment, LED Illumination and Four Achromatic Objectives (4×, 10×, 40×, 100×) is an advanced biological microscope.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- New machining facility and advanced alignment technology;
- With complete functions and outfit of binocular microscope;
- Comfortable operation with updated and ergonomic design;
- Compact and flexible, ideally suited for desktop, laboratory worktable;
- Interpupillary distance can be adjusted to fit for observation.
|
Top
of the Page
Technical Specifications
Applications
LB-234 Binocular Biological Microscope with Advanced Alignment, LED Illumination and Four Achromatic Objectives (4×, 10×, 40×, 100×) is an ideal instrument in the biological, histological, and pathological fields and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Viewing Head |
Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus. |
Eyepiece |
Wide Field Eyepiece WF10×/ 18 |
Nosepiece |
Quadruple Nosepiece |
Objective |
Achromatic Objective 4×, 10×, 40×, 100×
(Can be supplied with plan achromatic objectives) |
Total magnifications |
With 10x eyepiece: 40×, 100×, 400×, 1000× |
Stage |
Double Layer Mechanical Stage 140×140mm/ 75×50mm |
Focus |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
|
Condenser |
Abbe NA 1.25 with Iris Diaphragm & Filter |
Illumination
|
LED Illumination 3W, Brightness Adjustable
Plan-concave Mirror
Halogen Illumination 6V/20W (optional) |
Body / Energy |
Body firm backing of Aluminum and built in power supply 110-240V |
Supplied with |
Dust cover, green filter, immersion oil and user manual
|
Dimension & G.W. |
33cm×28cm×44cm×, 9 kg |
Sample Images
The following specimen images are taken with LB-234.
�
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
�
|
click here to fill out the Information Request Form
