Labomed Inc.

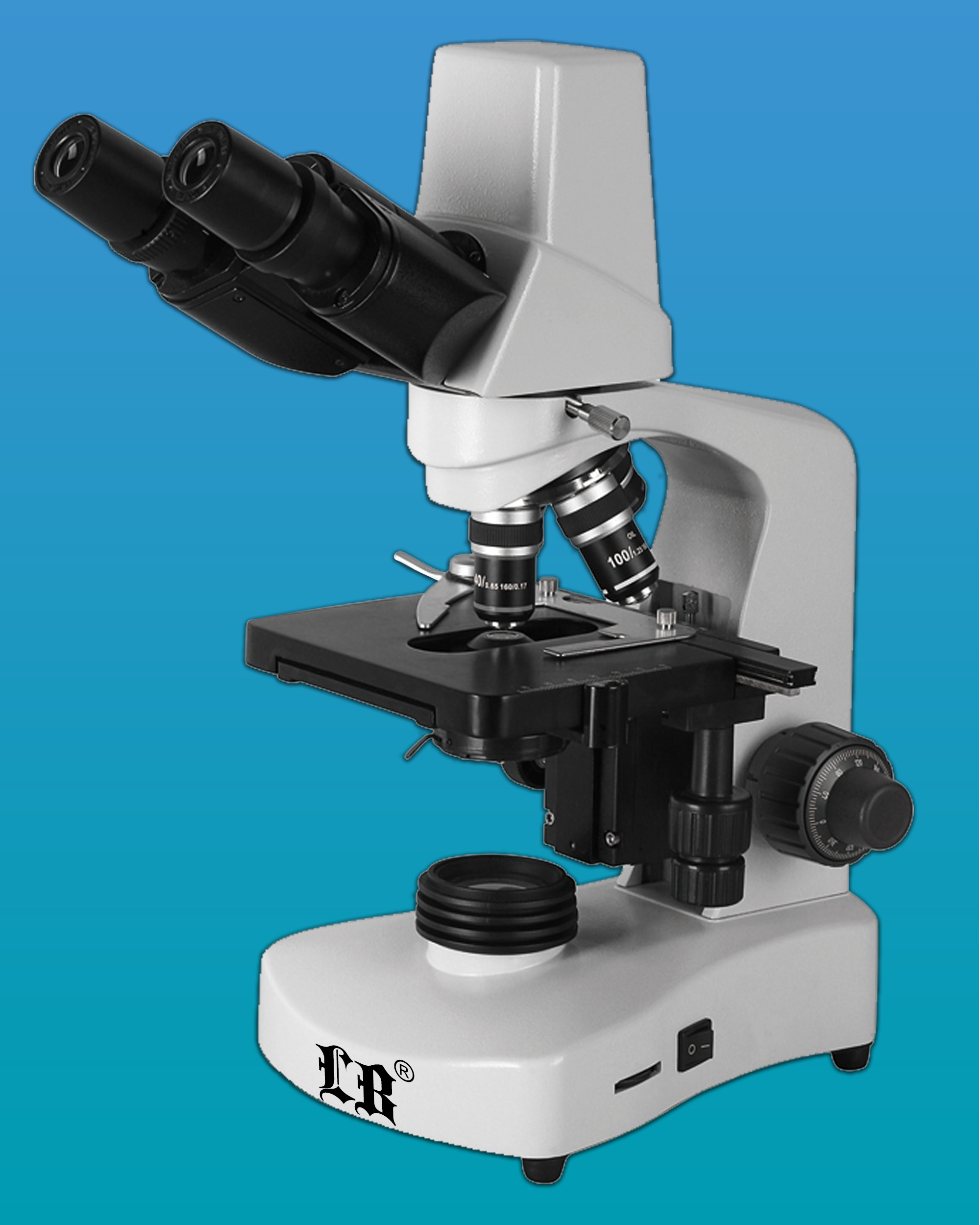

LB-227 Binocular Digital Microscope
with Seidentopf Binocular Head, Five
Achromatic Objectives
(4×, 10×, 40×, 60×, 100×), Camera and Software (1.3MP) and LED Illumination

LB-227 Binocular Digital Microscope with Seidentopf Binocular Head, Camera and Software (1.3MP), LED Illumination and Five Achromatic Objectives (4x, 10x, 40x, 60x, 100x) offers a 1.3 Megapixel color image sensor. It is economical, practical and easy to operate. The LB-227 is widely used in educational, academic, agricultural and study fields. It is connected to a computer via a USB Cable. The software is powerful and easy to operate, it can view images at real time, it also can take photos and videos and measurement without touch.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Integrated digital microscope, with 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement. Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Top of the Page

Technical Specifications

Applications

LB-227 Binocular Digital Microscope with Seidentopf Binocular Head, Camera and Software (1.3MP), LED Illumination and Five Achromatic Objectives (4x, 10x, 40x, 60x, 100x) is ideally suited for the school biological education and medical analyses areas. We can use it to observe all kinds of slides. It can be widely used in clinics, hospitals, schools, academic labs and scientific research departments.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Camera System

Resolution

1280×1024(1.3Megapixel)

Output Mode

USB2.0

Operation System

WINDOWS 2000/ XP/ VISTA/ WIN 7/ MAC

Software

ScopeImage Plus

Range of Viewing Field

90%

Eyepiece

WF10×/ 18

Nosepiece

Backward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 60×, 100×

Stage

Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser

Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.004mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.4mm per rotation, Moving Range 24mm

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 8kg



Dimensions

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
