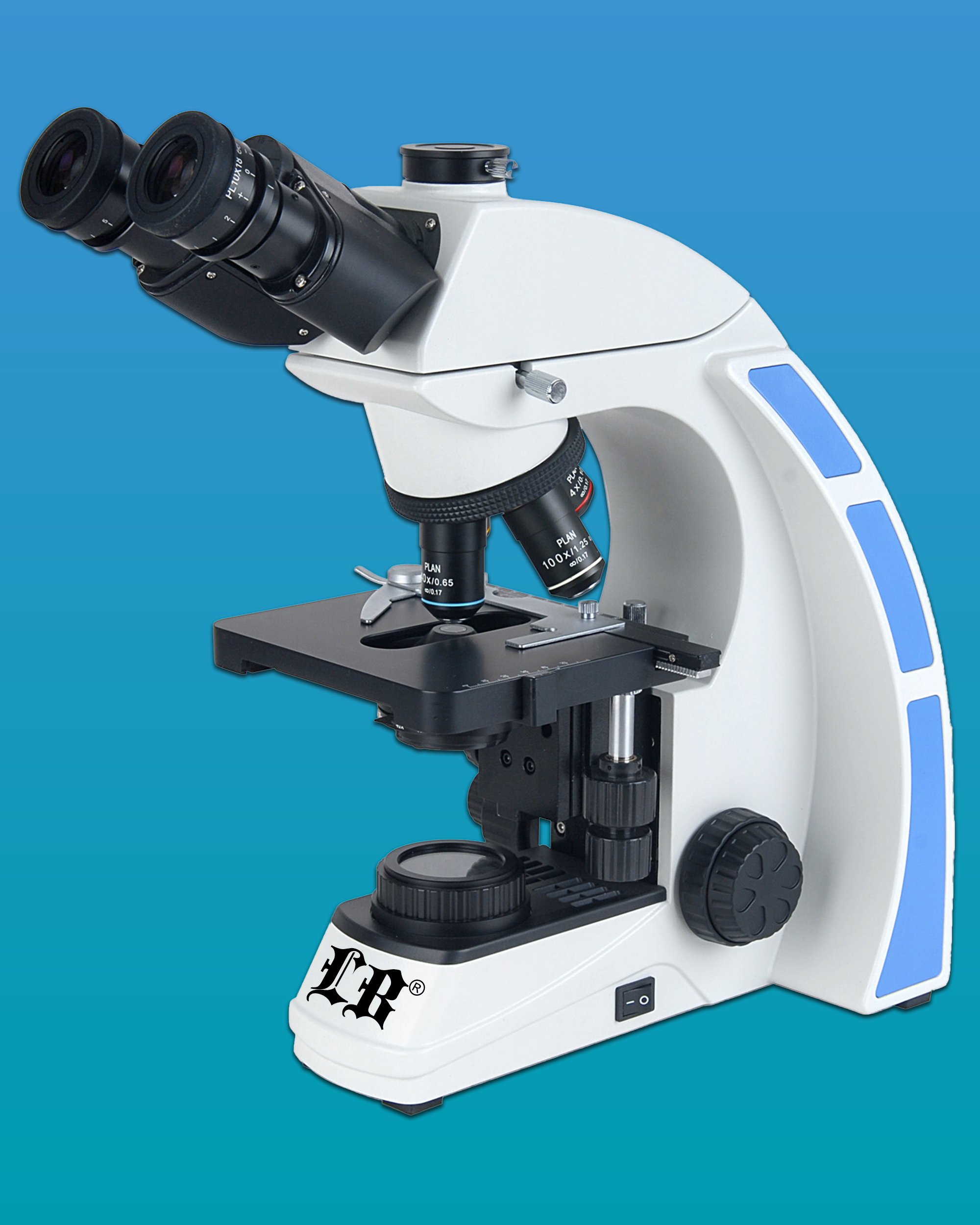

LB-246T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×

LB-246T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Infinite Color Corrected Optical System
  • Sensitive dimming system
  • Koehler illumination
  • Easy carrying Handle

Top of the Page

Technical Specifications

Applications

LB-246T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.

Item Specification
Optical System Infinite Color Corrected Optical System
Viewing Head Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light splitting ratio: Eyepiece:Trinocular=8:2
Eyepiece Plan 10×/18mm with adjustable diopter
Objective Infinite plan Achromatic Objectives 4×, 10×, 40×, 100×
Nosepiece Reversed Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm
Condenser NA1.25 Condenser (with slot for phase contrast and darkfield accessories)
Focusing Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm
Illumination 100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable
Optional accessories Phase Contrast Kit
Dark Field Attachment
Polarizing attachment
Video & photo accessories (1/3×, 1/2×, 1× C-mount)
Various filters (Blue, Green, Yellow and frosted)





Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
