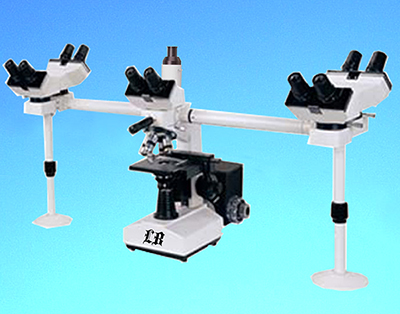

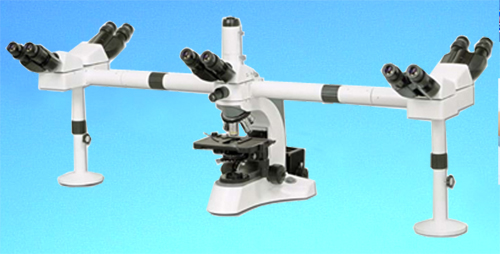

LB-982 Multi-Head Microscope with Trinocular Head
(for 5 Users with a Binocular Head and a Trinocular Head)
(Anti-Mold)

LB-982 Multi-Head Microscope with Trinocular Head (for 5 Users with a Binocular Head and One User with a Trinocular Head) (Anti-Mold) is equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • Users friendly and comfortable operation with ergonomic design.

Top of the Page

Technical Specifications

Applications

LB-982 Multi-Head Microscope with Trinocular Head (for 5 Users with a Binocular Head and One User with a Trinocular Head) (Anti-Mold) is mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Viewing Head

Sliding Trinocular Head, inclined at 45°

1Pc



Sliding Binocular Head

4Pcs

Eyepiece

Wide Field Eyepiece WF10×

10Pcs

Nosepiece

Quadruple Nosepiece



Objective

Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Abbe Condenser NA1.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Plain Stage 140×140mm/ 75×50mm



lllumination

LED
Halogen Lamp 24V/100W (optional)





Pointer

Green LED Pointer, Brightness Adjustable





ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
