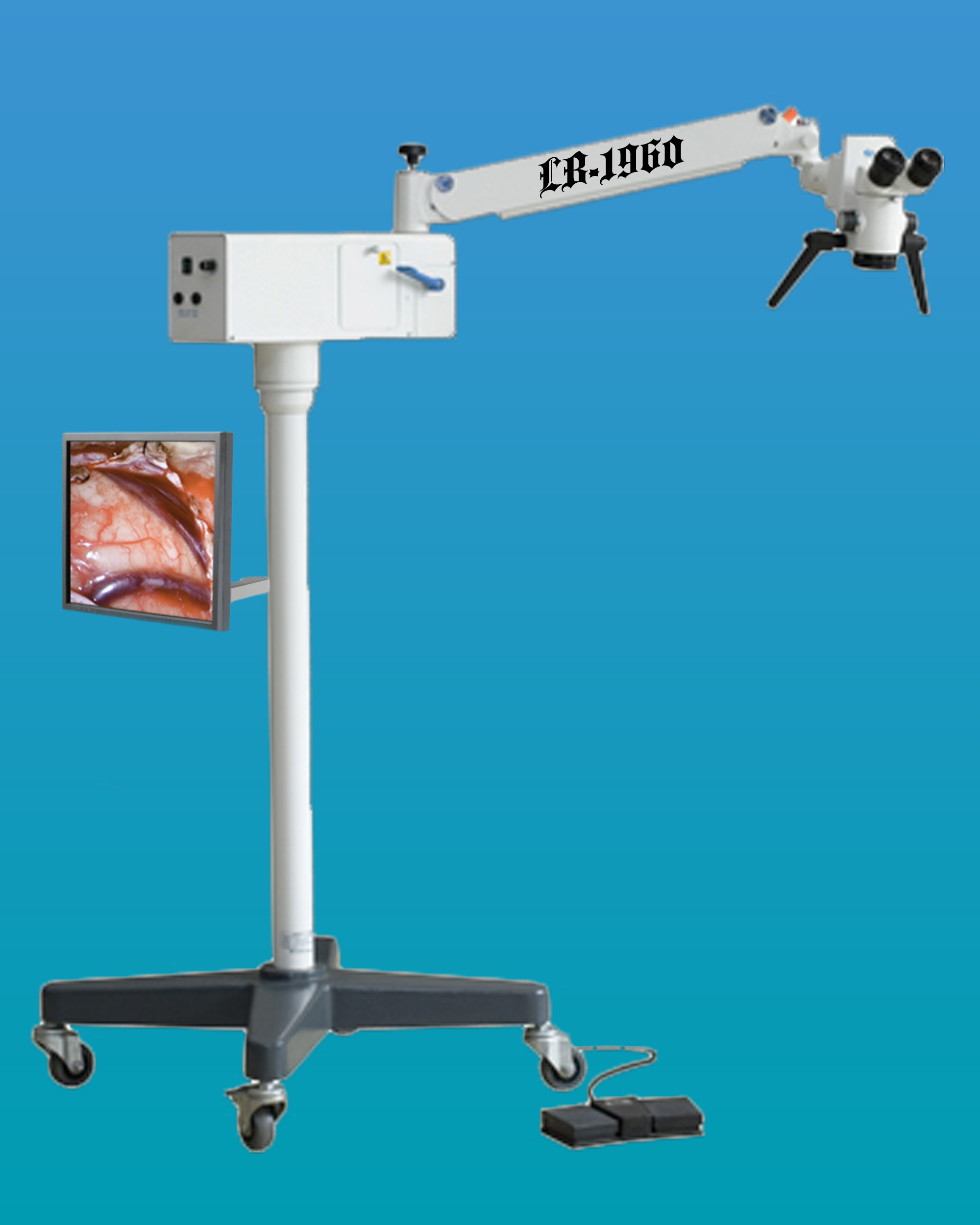

LB-1960 Binocular Operational Microscope for ENT and Ophthalmology
(Ophthalmic Microsurgery)
LB-1960 Binocular Operational Microscope for ENT and Ophthalmology (Ophthalmic Microsurgery) is a coaxial illumination binocular operation microscope for one person, compact, portable and flexible. It can meet general requirements of ophthalmic microsurgery.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- Binocular operation microscope designed for one person, can meet the requirements of general ophthalmic surgery.
- Germany optical lenses are all multi-coated. Image is clear and view field is even.
- 6°+0 coaxial illumination provides the red reflex, lens posterior capsule can be observed, so as to reduce the risk of surgery.
- Radius of microscope arm increases to 1030mm, which provides larger operation range for the surgeon.
- Universal structure/stand to support the microscope head up and down, left and right movement, more application area.
- Position lock screw can protect the arm at any location from moving.
Top
of the Page
Specifications
APPLICATION
It is portable, compact and is mainly applied in clinic, hospitals and mobile hospitals for Ophthalmology, ENT and areas like these.
Eyepiece Magnification |
12.5× |
Objective Focus |
f=200 |
Working Distance |
190mm |
Magnification for Main Microscope |
5.3×, 8×, 12× steps |
Diameter of Field |
F37mm, F25mm, F16.7mm |
Diopter Adjustment |
±7D |
Pupil Distance |
50mm～80mm |
Maximal Resolution |
100 LP/mm |
Illumination Source |
12V/100W, cold reflection medical halogen bulb |
Illumination Type |
6°+0°cold light coaxial illumination |
Coaxial Illumination |
≥30000lx |
Reaching Radius of Arm |
1030mm |
Adjustable Vertical Range |
±200mm |
Fine Focusing Range |
30mm |
Input Voltage |
AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz |
Power |
120VA |
Fuse |
AC250V T1.25A, AC125V T2.5A |
Electrical Safety Standard |
Executive Standard GB9706.1-2007 Class Ⅰ |
Packing Volume |
0.24m3, 1 carton |
Total Weight |
51kg |
Optional Accessories
1. 10× Eyepiece.
2. Table installation parts(holding stand, split column).
3. Video devices(1/2” or 1/4” CCD Camera, CCD Adapter, Beam Splitter and Connecting Cable).
4. Straight Binocular, Universal Joint(for ENT).
5. Portable packaging. Including three canvas bags and a luggage cart.
6. Magnifications and filed for optional objective lens:
OPTIONAL ACCESSORIES (Must be ordered separately) |
Integrated B/S & A/D |
Integrated |
Adapter for CCD Camera |
|
Observer’s monocular |
|
Monitor |
HDMI monitor, LCD panel, 1080P resolution and LED backlight |
CCD Camera |
LC-8 |
|
