Labomed Inc.

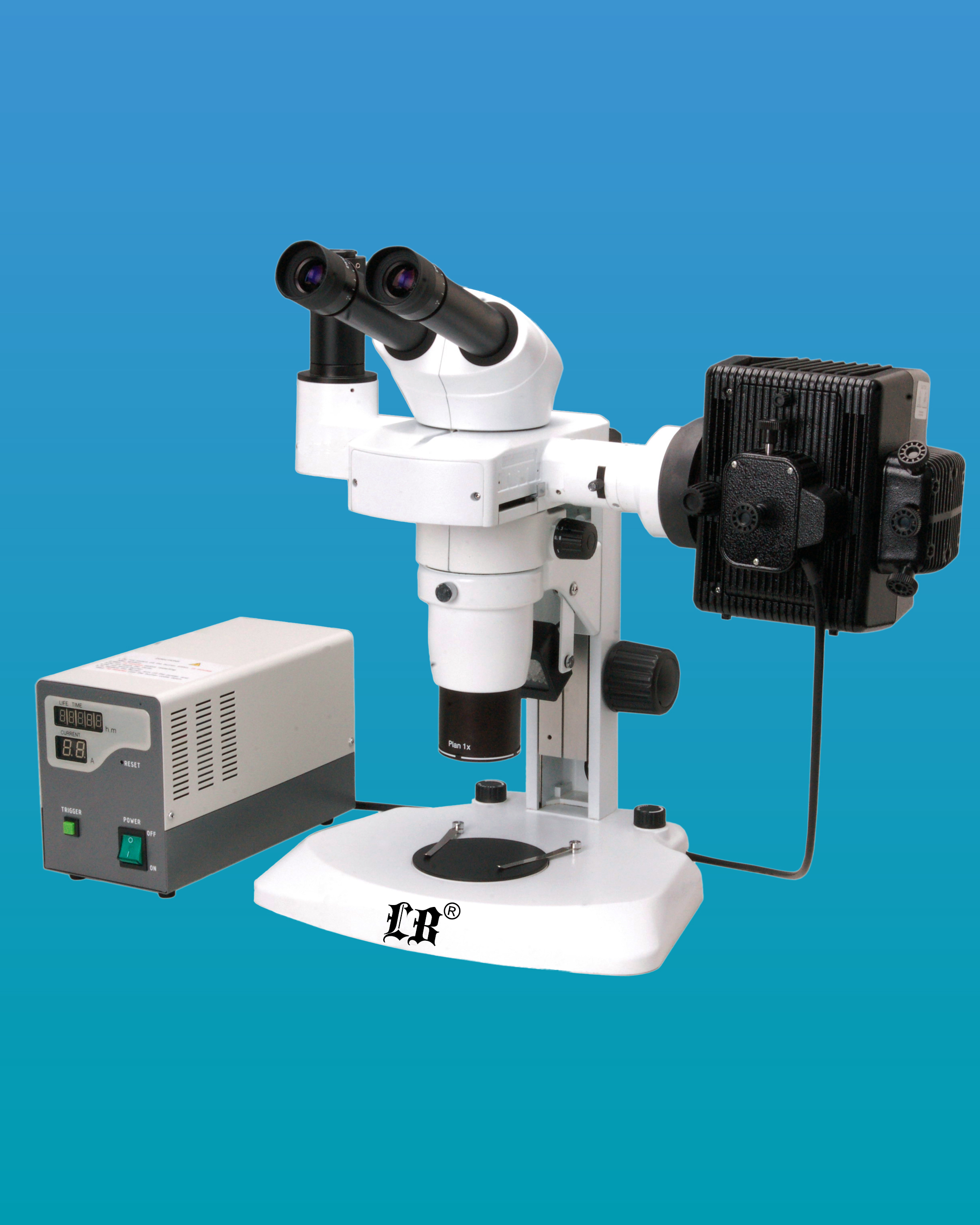

LB-367 Binocular Zoom Fluorescent Stereo Microscope with
Infinite Parallel Zoom Optical System and LED Illumination (Zoom Ratio 1:6) with Phototube Attachment

LB-367 Binocular Zoom Fluorescent Stereo Microscope with Infinity Parallel Zoom Plan Optical System (Infinity Color Corrected System) and LED Illumination (Zoom Ratio 1:6) with Phototube Attachment

Flourescent stereo microscope realizes fluorescence observation of living cell, widely used in biology, industrial inspection, criminal justice etc. It is an essential tool of fluorescence inspection for security printing and ideal instruments for mineral research.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features



Features

    • Infinite Parallel Zoom Optical System
    • Extra Wide Field Eyepiece
    • Fluorescent attachments
    • One zoom objectives
    • One plan achromatic objective
    • Transmission & Reflection LED Illumination, Brightness Adjustable
    • 100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display
    • Phototube attachment for connecting cameras

Top of the Page



Technical Specifications



Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupillary Distance 55-75mm

Eyepiece

EW10×/Φ22

Fluorescent Attachment GFP-B (EX460-500,DM505,BA510-560),
GFP-L (EX460-500,DM505,BA510)

Zoom Objective

0.8×-5×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 6

Working Distance

78mm

Focusing

Focusing Range 105mm

Stand Stand

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable
100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display

Dimensions


ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
