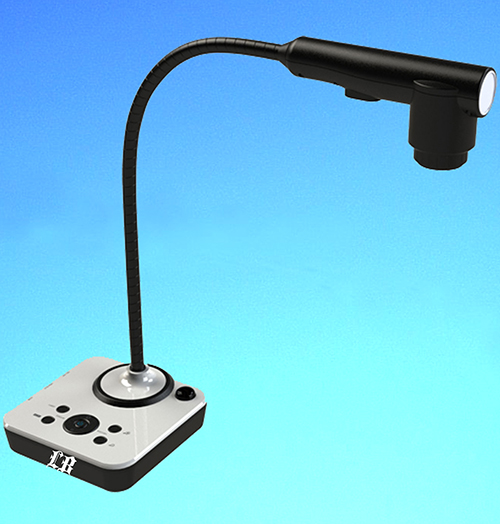

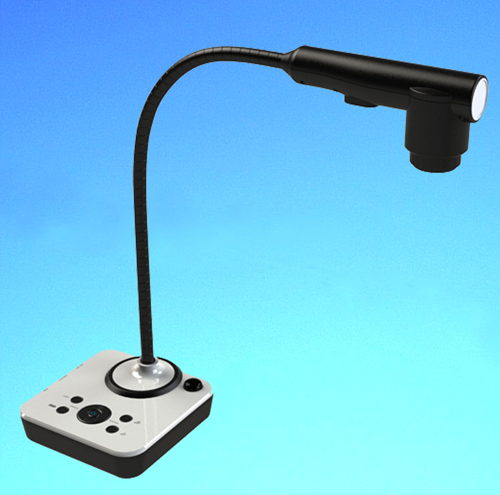

LB-92 HD Presentation Microscope

LB-92 HD Presentation Microscope

The newly designed LB-92 HD Presentation Microscope features a rotating microscope head mounted on a flexible goose-neck arm to give you maximum flexibility when capturing images. The auto-focus lens makes it easy to zoom in and out while you are making presentation. You can adjust optical and digital zoom from your remote, then the microscope will automatically refocus the lens to a clear image.

The portable and compact design makes it the perfect desk companion for presentation.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Portable design with goose neck.
  • Multiple inputs and outputs.\
  • USB Plug and play.\
  • Clear and sharp image.
  • Multi buttons for controlling on board or remote control.

Top of the Page

Technical Specifications

Sensor

1/3" CMOS

Total pixel

2 Megapixel

Zoom

9× optical, 12× digital

Frame rate

12fps

Shooting area

Max: 16.5"×11.7"(41.9cm×29.7cm), Min: 0.1"×0.1"(0.3cm×0.3cm)

Focus

Auto/manual

Native output signal

SXGA(1280×1024)

Converted output signal

SXGA, XGA

Resolution (Horizontal)

≥750 TV lines

White balance

Auto/manual

Color adjustment

Yes

Brightness adjustment

Yes

Image capture

Yes, 12 volatile images

Video recording

Yes

Image mirror

Yes

Image rotation

180˚

Image split

Yes

Image freeze

Yes

OSD

Yes

Text mode

Yes

Mono/color conversion

Yes

Positive/negative conversion

Yes

Operation System

Windows XP/VISTA/WIN 7, Mac OS 10.4 OR ABOVE, Driver plug and play

Remote control

Yes

Microscope adapter

Supported

Light source

Embedded LED lamp on Arm

Operation temperature

32˚F to 113˚F

Power supply

12V DC power adapter

Dimension & G.W.

17cm×21cm×40cm, 2.5kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
