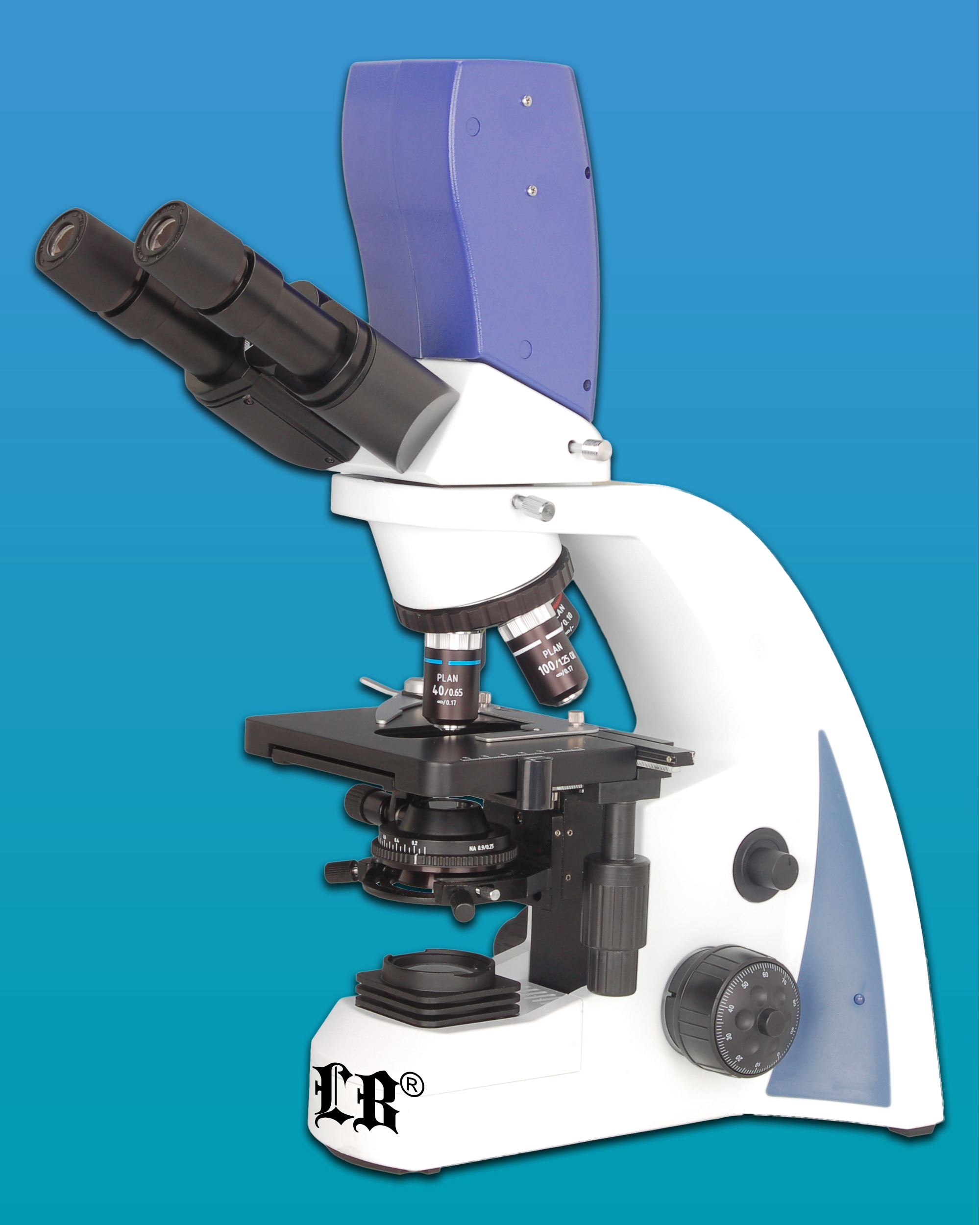

LB-248 Binocular Digital Microscope
with Infinity Optical System, Wide Field, Double Layer Mechanical Stage, Sliding-In Centerable Condenser, Camera and Software (3.0MP)

LB-248 Binocular Digital Microscope with Infinity Plan Optical System, (Infinity Color Corrected System), Wide Field, Double Layer Mechanical Stage, Sliding-In Centerable Condenser, and Camera and Software (3.0MP)

With precision machining equipment, infinity color corrected system and advanced alignment technology, LB-248 binocular digital microscope is an advanced biological microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • 3.0 Megapixels digital systems, high-resolution real-time micro-image;
  • With high-sensitivity feature, suitable for equipped wide range of accessories such as dark field, phase contrast, Epi-fluorescence and so on (accessories are optional must be ordered separately;
  • Excellent optical performance with infinity optical system.


Top of the Page

Technical Specifications

Applications

LB-248 Binocular Digital Microscope with Infinity Plan Optical System, Wide Field, Double Layer Mechanical Stage, Sliding-In Centerable Condenser, and Camera and Software (3.0MP) is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Built-in 3M pixel digital camera with ScopeImage Advanced Micro-image Process Software; Binocular head, 30°inclined,interpupillary distance 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 18

Objective

Infinitive Semi-Plan Achromatic objectives 4× 10× 40× 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Nosepiece

Quadruple Nosepiece

Stage

Double layers mechanical stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in centerable condenser NA1.25

Focusing

Coaxial coarse and fine adjustment, moving range 20mm

Illumination

LED Illumination, Brightness Adjustable
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable (optional)

Dimension & G.W.

35cm*35.5cm*55.5cm, 13kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
