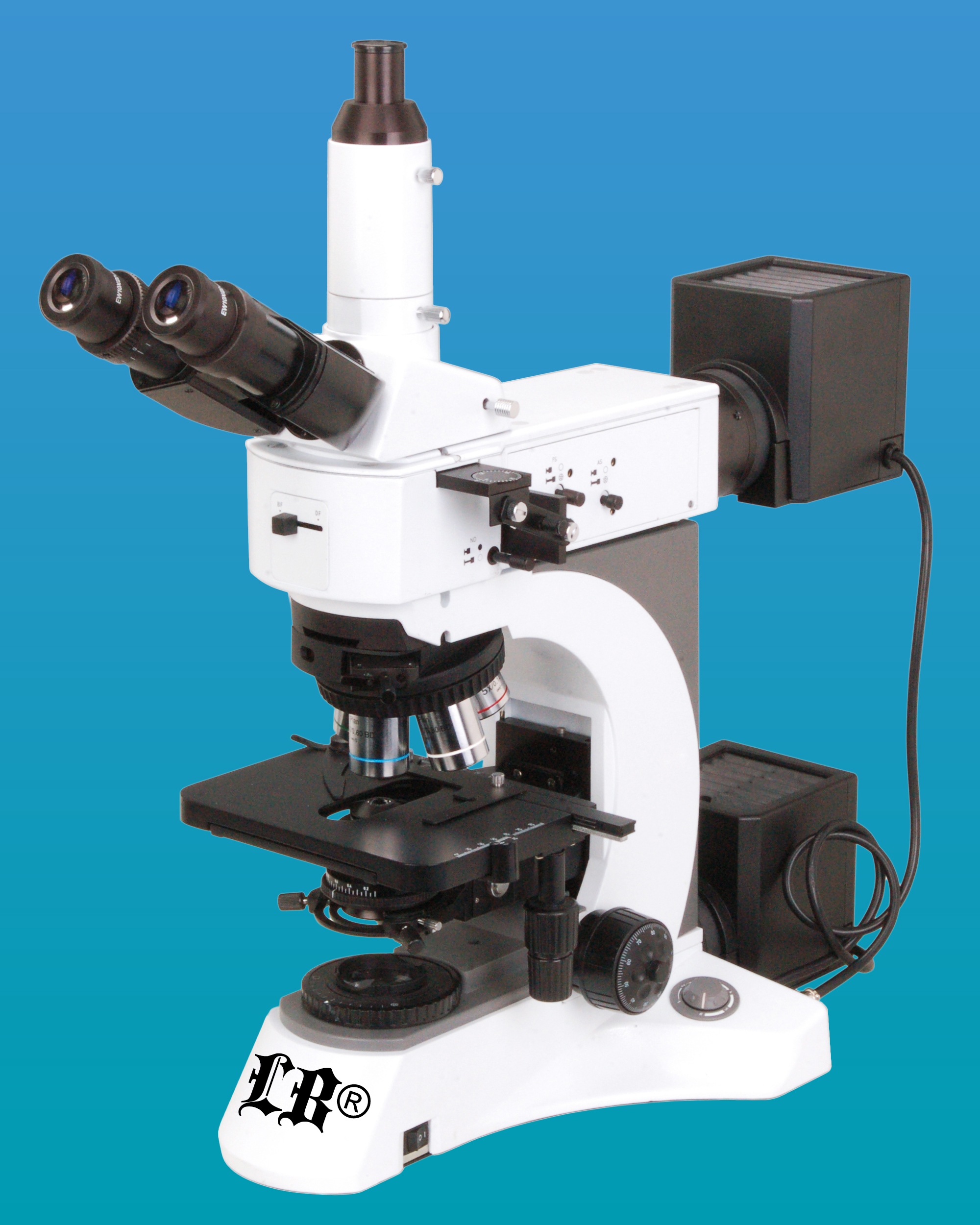

LB-616 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives with Reflected, Transmitted
and Kohler Illumination

LB-616 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives, Extra Wide Field, Reflected, Transmitted and Kohler Illumination are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice. DIC observation attachment is optional for these microscopes to meet some special requirements.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Laboratory metallurgical microscope, including bright field and dark field observation system.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.

Top of the Page

Technical Specifications

Applications

LB-616 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives, Extra Wide Field, Reflected, Transmitted and Kohler Illumination is widely used in institutes and laboratories to observe and identify the structure of various metals and alloys. It also can be widely used in the electronics, chemical and instrumentation industry to observe opaque materials and transparent materials, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Optical System:

Infinite optical system

Viewing Head:

Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm

Eyepiece:

Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm

Infinite Plan Achromatic Objective:

5×/ 0.12/∞/ - (BF/DF)   WD 12mm

10×/ 0.25/∞/ - (BF/DF)  WD 10.0mm

20×/ 0.4/∞/ 0 (BF/DF)   WD 4.3mm

40×/ 0.65/∞/ 0.17       WD 0.54mm

100×/ 1.25/∞/ 0.17      WD 0.13mm

50×/ 0.75/∞/ 0 (BF/DF)  WD 0.32mm

100×/ 0.8/∞/ 0 (BF/DF)  WD 2mm

Maximum Sample Height:

30mm

Reflected Light:

24V/100W Halogen light, Brightness adjustable

Kohler illumination and aspherical condenser

Blue, Green, Yellow and Frosted filter

Transmitted Light:

Swing-out condenser NA0.9/ 0.25

24V/100W Halogen light and aspherical condenser

Blue filter

Nosepiece: Backward quintuple nosepiece

Stage:

Double layer mechanical stage 186×138mm/ 74mm×50mm



Specimen preparation plate

Slide glass



Optional Accessories
(must be ordered separately)

DIC for LB-616

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
