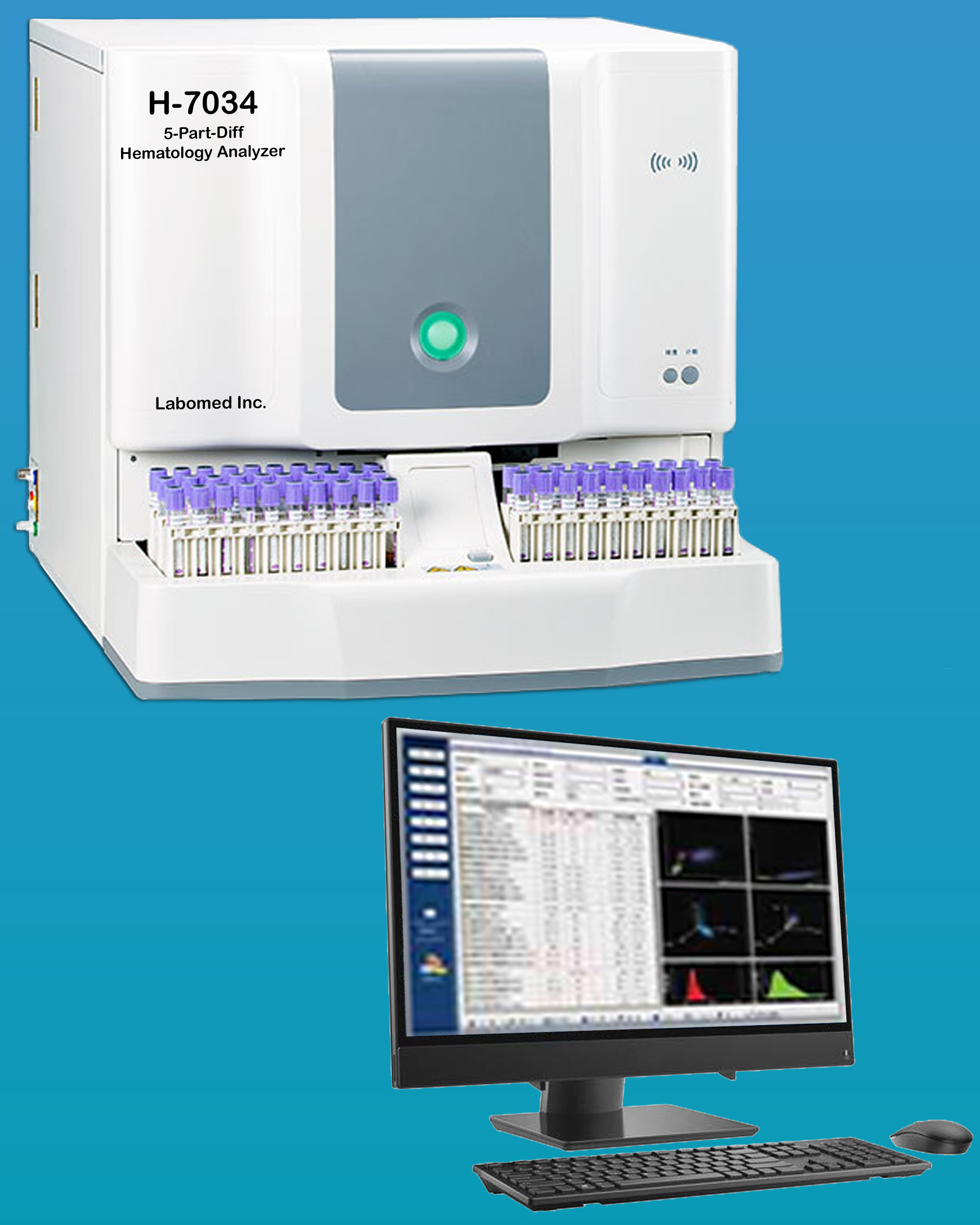

[H-7034] Fully Automatic Hematology Analyzer with Reticulocyte Testing, Auto Sampler, 34 Parameter and 60 Test / Hour
H-7034

PDF Brochure

SEMI-CONDUCTOR LASER

H-7034 Auto Hematology Analyzer uses semi-conductor laser for the flow cytometry system. Through calculations of different angles via laser scatters, the instrument provides complete analysis including cell size, granularity and complexity.

ONE CHANNEL GIVE COMPLETE DIFFERENTIATE WBC

H-7034 Auto Hematology Analyzer counts lymphocyte, monocyte, neutrophil, eosinophil and basophil in WOC channel.

3D STEROGRAMS

Not only scatter grams but also 3D stereograms are provided by H-7034 Auto Hematology Analyzer that the WBC differentiation would be presented on different views.

Features

  • Laser light multi-dimensional cell classification
  • Resistant RBC mode
  • WIC and WOC for WBC counting
  • Up to 60 samples per hour throughput
  • WBC 5 part diff with sheath reagent only
  • Support both whole blood and capillary blood samples
  • 28 Parameters plus 6 Reticulocyte test, with total of 34 Parameters
  • The system will collect blood sample automatically for test.



Technical Specifications

Parameters

34 parameters +5 histograms + 1 scattergram

NEUT (#): Neutrophil Count
NEUT (%): Neutrophil Ratio
LYMPH (#): Lymphocyte Count
LYMPH (%): Lymphocyte Ratio
MXD (#): Eosinophil, Basophil and Monocyte Count
MXD (%): Eosinophil, Basophil and Monocyte Ratio
RDW-SD: Red Blood Cell Distribution Width - Standard Deviation
RDW-CV: Red Blood Cell Distribution Width - Corpuscular Volume
WBC (#): White Blood Cell Count
RBC (#): Red Blood Cell Count
MONO (#): Monocyte Count
MONO (%): Monocyte Ratio
GR (#): Granulocyte count
GR (%): Granulocyte Ratio
HGB (#): Hemoglobin Count
HGB DW: Hemoglobin Distribution Width
MCH: Mean Corpuscular Hemoglobin
MCHC: Mean Corpuscular Hemoglobin Concentration
MCV: Mean Corpuscular Volume
HCT (#): Hematocrit Count
PLT (#): Platelet Count
PCT: Prolactin Count
MPV: Mean Platelet Volume
PDW. Platelet Distribution Width
RTC: Reticulocyte Count
WBC Histograms: White Blood Cell Histograms
RBC Histograms: Red Blood Cell Histograms
PLT Histograms: Platelet Histograms
Baso Histograms: Basophil Histograms
WBC (White Blood Cell) Differential Scattergram
NEUT (#): Neutrophil Count
NEUT (%): Neutrophil Ratio
BASO (#): Basophil Count
BASO (%): Basophil Ratio
EOS (#): Eosophil Count
EOS (%): Eosophil Ratio
P-LCR (#): Platelet Large Cell Ratio
ALY (#): Atypical Lymphocyte Count
ALY (%): Atypical Lymphocyte Ratio
LIC (#): Limiting Isorrheic Concentration Count
LIC (%): Limiting Isorrheic Concentration Ratio"

  (NEU#, NEU%, BAS#, BAS%, EOS#, EOS%, RDW-SD #, RDW-CV #, P-LCR #, ALY #, ALY%, LIC#, LIC%, BASO #, RSC # Histogram)
Measuring Principle Fluorescence Flow Cytometry Technology/cytochemical flow cytometry using Semi-Conductor LASER and Dye Reagents for WBC and 5 Differential for WBC.
  Hydrodynamic Focus/impedance/optical focus flow detection method for RBC & PLT Analysis. Cyanide free SLS/Photometric – Hemoglobin method for HGB measurement.
  Measuring Principles LIC
Sample Volume Min 20uL EDTA Whole Blood
Throughput (T/hr) 60 samples per hour or above
Operating System Windows 7 or later
PC Hardware Must be purchased separately (Labomed, Inc. does not sell it)
RAM ≥ 1GB, HDD: 160 GB SATA
Display ≥ 17” LCD Color Monitor
Data Storage Min  10,000 test about  patients
Discrete Mode CBC Mode CBC+DIFF Mode
Power Supply 110-230V AC, 400W, 50Hz, locally compatible mains plug, set of replacement fuses (if replaceable type used)
Dimensions 400 x 420 x 490mm
Weight 25kg

Accessories

• Roller Mixer for Homogenous mixing of Blood - one (Optional)

• One set Startup Reagents (Optional)

• Reagents for 5000 test at user end (Optional)
