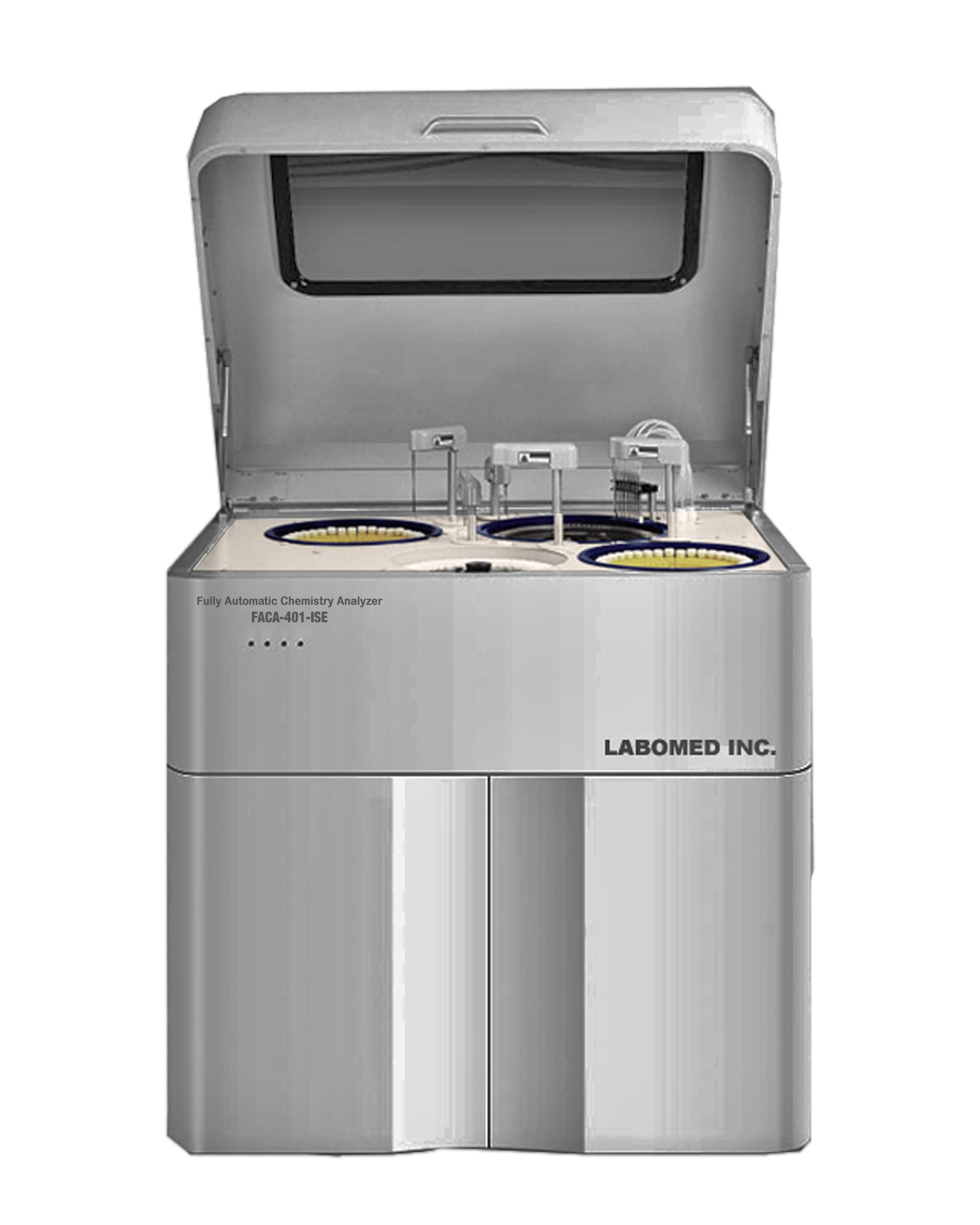

Fully Automatic Biochemistry Analyzer
FACA 401-ISE (Electrolyte Tester and Analyzer)


We offer six types of Fully Automatic Biochemistry Analyzers:
(ISE = Electrolyte Testing)

FACA-401-ISE

600 test/hr (400 tests/hr + 200 ISE tests/hr), with minimum three ISE test (Na, K, Cl)
True Random Access

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Random access and direct reading system
  • Analytical methods -> 1-point, 2- point, Rate A & Rate B. Direct potentiometry, calibration linear, non linear, multipoint.
  • Automatic washing system for both sample and reagent probe
  • Liquid level detection and collision protection for both sample and reagent probe
  • Reliable cooling system for reagent chamber - Peltier pad
  • Powerful reaction cuvette washing system
  • User-friendly interface
  • ISE module and barcode scanner (optional)
  • Reagent Tray
    • 80 reagent positions for FACA-401.
    • Cooling reagent chamber may work independently for 24 hours.
  • Sample Tray
    • 88 reagent positions for FACA-401.
  • Cuvette
    • Either high quality UV-transmitted plastic cuvettes or quartz glass cuvettes available.
  • Reagent Tray
    • 80 reagent positions for FACA-401.
    • Cooling system may work independently for 24 hours.
  • Independent Mixer
    • 2 mixers for FACA-401.
  • Sample Probe/Reagent Probe
    • 1 sample probe and 1 reagent probes for FACA-401.
    • With liquid-level sensor, anti-collision sensor and automatic cleaning function.
  • ISE Module available upon request.
  • Cuvette Washing Station - 8 channels automatic washing station, 1 for detergent wash (connect deteregnt bottle), 2-6 channels wash by water,  7 channel for first empty, 8 channel for final empty
  • Independent Mixer - ensuring quick and complete reaction.
  • LIS software optional - must be purchased separately
  • Water consumption: <20 L/hr
  • Reads serum and urine samples
  • Absorbance alert provided when the Absorbance is abnormal
  • Reaction Cuvette - High quality, UV-transmitted plastic cuvettes, or quartz glass cuvettes (optional).
  • Reagent Bottle - More convenient and economical ready-to-use reagent kits.
  • Automated, closed fully selective random access, floor based, perform to test stat samples. (optional)
  • Works with Windows XP and Windows 7.
  • Enzyme Kinetic GPT GOT tests.
  • This unit is a microprocessor system.
  • This unit has 25 cooling positions.
  • LCD Color 15" Display
  • Detector: Photodiode
  • All FACA Fully Automatic Biochemistry Analyzers have 2 different sample plates:
    1. Standard sample plate for use with serum cup (serum order)
    2. Test tube sample plate for use with 13x75 - 13x100mm test tubes (that is optional)
  • CABINET IS OPTIONAL.

Accessories

Item Specification
Quantity
Reagent bottle 1 40ml 50Pcs
Reagent bottle 2 with holder 15ml 15Pcs
Reaction cuvette   80pcs
Serum Cup   1000pcs
Tube   1 set
Fuse(4A/8A)   4 sets
Lamp(13.8V/50W)   1Pc
Power cable   2Pcs
Com Cable   1Pc
User manual   1
Operation software   1
Tool   1 set
Sensor   1Pc
Detect Probe,   2Pcs
Sample Probe   1Pc
Ground Cable   1Pc











Top of the Page

Technical Specifications

Test Tubes:

  • Can use test tubes 13x75mm


Testing List

FACA 401-ISE will measure the following elements at blood test:

T. BILI Total Bilirubin LgA   APOB-IB Apolipoprotein-B
D. BILI Direct Bilirubin CHO Chinese Hamster Ovary APOB Apolipoprotein-B
TP Total Protein TG Thyroglobulin CK-MB Creatine Kinase-MB
ALB Albumin CK Creatinine Kinase ASO Antibody Streptolysin O
Lactic Acid Lactic Acid LDH Lactate Dihydrogenase CO2 Carbon Dioxide
LP (a) Lipoprotein A UA Urinalysis LOL-C
CHE Cholinesterase GLU Glucose HS-CRP High Sensitivity C-Reactive Protein
Fe Iron TBA Total Bile Acids C4 Complement Component 4
LgM   Zn Zinc CHE Acetylcholinesterase
R-GT/GGT Reflocheck Glucose/
Gamma Glutamyl Transferase
Ca Calcium Mg Magnesium
ALP/AKP Alkaline Phosphatase CL Chlorine AFU Alpha-L-Fucosidase
UREA Urea P Phosphorus FMN Flavin Mono Nucleotide
CREA Creatinine C Carbon HDL-C High Density Lipoprotein-C
ALT/GPT Alanine Aminotransferase/
Glutamate Pyruvate Transaminase
A-HBDH alpha-hydroxy butyrate dehydrogenase PA
AST/GOT Aspartate Aminotransferase/
Serum glutamic-oxaloacetic transaminase
AMY Amylase LgC
LA   ADA Adenosine Deaminase and drug toxicity
Cu Copper C3 Complement Component 3 HbA1c Glycated Hemoglobin

Test for the Following Diagnostics


Liver ALT ALP GGT TP Alb TBIL DBIL
Heart LDH CK CK-MB AST a-HBDH
Lipids CHO TG HDL_C LDL_C
Lipoproteins Apo A1 Apo B Lp (a)
Kidney BUN CRE UA CK
Ion Na Mg Ca K P Cl
Other CO2-CP AMS LIP GLU IgA IgG IgM C3 C4 CRP
