Spectrophotometers from Labomed

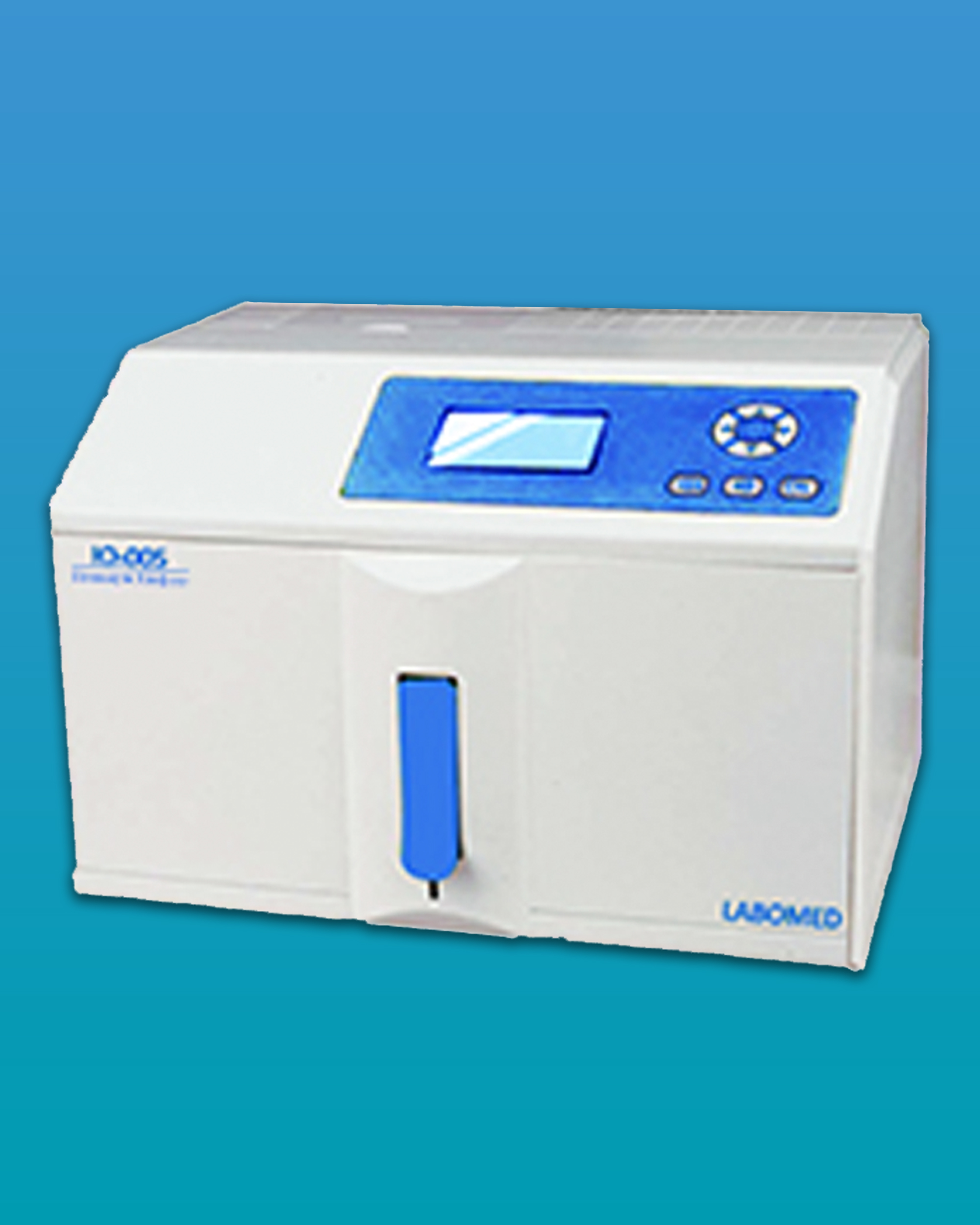

Electrolyte Clinical Analyzer IO-005

Click here to download the brochure


  • Automatic priming and maintenance function.
  • Carry-over prevented by automatic probe cleaning.
  • Automatic standby function.
  • Automatic calibration.
  • Low reagent consumption.
  • User-friendly software.
  • Long-life and stable electrodes.
  • Automatically shows any abnormality in electrolyte reading

The IO-005 is open to being used with all brands of biochemistry reagents.

It is very user-friendly and easy to use, requiring minimal training or supervision to get started.

Technical Specifications

Parameters: K+, NA+, Cl-, Ca2+, PH
Assay Method: Ion selective electrode
Throughput: 60 tests/hr
Sample Type: Whole blood, serum, plasma, urine, sweat, dialysate
Sample Volume: 35-120 ul
Display: 128mm X 64mm back-illuminated LCD
Storage: More than 2000 samples and Q.C. data
Printer: Built-in thermal printer
Interface: RS-232
Environment: Temperature: 18~35°C
Requirements: Humidity: <85%
Closed or open tube: Yes
Visible Sample: Yes
Chamber: Yes
Analysis Time, sec: 50 seconds
Sample Rate: Up to 60 per hour or more
Na serum/plasma: 30-200 mmol/L
K serum/plasma: 0.5-10 mmol/L
Cl serum/plasma: 30-200 mmol/L
Ca++: 1.10-5.00 mmol/L
Automatic Wash: Yes
Type and frequency: On demand/Automatic
Language: English, other languages on request
Power Supply: AC 110-240V 50/60 Hz
Voltage: 220V, max. 15A, 1 Phase
Frequency: 60Hz
Power Cord: 3 Pin BT, 1-2 Meter Length
Regulatory Compliances: ISO, CE
Safety Standard: UL
Dimensions: 36cm x 25cm x 26cm
Weight: 6.0kg
Accessories: All standard accessories
Reagents: Reagents for a three month supply for 25-30 samples per day should be ordered at the time you order the equipment.


  • 1 Power Cable
  • 2 Fuse
  • 1 Pump Tube
  • 3 Standard Solution A (250ml/bot)
  • 3 Standard Solution B (250ml/bot)
  • 1 Reference Electrolyte Solution
  • 1 Printing Paper
  • 1 User's Manual
