Labomed Inc.

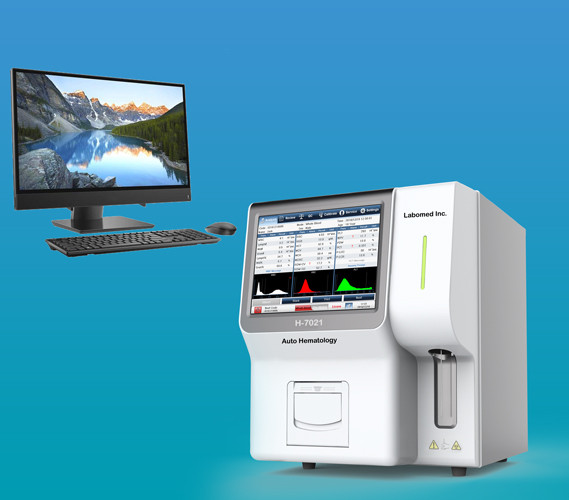

Fully Automatic Hematology Analyzer

PDF Brochure

21 Parameter

(Less Service, More Stable)


  • User Friendly Interface
    10.4 inch true color TFT LCD & touch screen, more visible
    Minimize the number of interface layers, pop-up soft keyboard, easy to operate.
  • Internationalization support
    Possible choice of parameter units. Several languages available, can switch language online
  • Provide various anemia indications
    Normocytic and normochromic anemia, Macrocytic and normochromic anemia, Microcytic hypochromic anemia, Microcytic anemia
  • Provide text of alarm information
    Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm
  • Automatic blank counting
    Automatically start a blank counting and auto-assessment of the results during start-up process
  • Automatic re-counting
    Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
  • Wider linearity range & excellent repeatability
  • Maintenance-free syringe
  • Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report
    Paper 80mm wide. Report printing takes only 5 seconds
  • State-of-the-art technology
    Sweeping flow technology, Pulse discrimination technology, Intelligent floating threshold technology

Technical Specifications

  • Measuring Principles
    Impedance method for cells counting
    Cyanide free colorimetric method for HGB measurement
  • Measuring Channels
    Double channel for counting
  • Throughput
    From beginning of a test to completion of the printout: ≤ 60 Seconds
  • Counting Modes
    Whole Blood, Pre-diluted Blood
  • Sample Volume
    Whole Blood: ≤ 14µL
    Pre-diluted Blood: ≤ 20µL
  • Parameters & Histograms
    21 parameters and 3 histograms:
    WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV,
    RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
  • Reference Value Settings
    Preset five sets of reference values: Man, Woman, Child, Baby and General
  • Alarm System
    Multiple alarms of running status including blank counting abnormal, reagents empty, waste full,
    counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc
  • Measures of Unclogging Treatment
    Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
  • Printout
    English print report, optional report formats
  • Storage
    Can store more than 10,000 sample results, including parameters, histograms and patient information.
    Support multiple conditions combination query
  • Communication
    Open communication protocol. Support connection to LIS
  • Data Import & Export
    Import or export data via USB port
  • Quality Control System
    Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
  • Calibration System
    Support manual and automatic calibration
  • Software Upgrading
    Upgrading software via USB port
  • Display & Touch Screen
    10.4 inch true color TFT LCD and touch screen
  • Printer
    Built-in patented structure thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds
  • Data Ports
    One network port, one RS-232 port, four USB ports
  • Optional External Devices with USB Port
    Standard 101 keyboard, mouse, barcode scanner and multiple printers
  • Power
    220V, 50Hz Input power: ≤ 150VA
  • Operating Environment
    Environment Temperature: 10°C~30°C
    Relative Humidity: ≤70%
    Atmospheric Pressure: 70.0kPa -106.0kPa
  • Dimensions
    368mm x 448mm x 475mm
  • Reagents
    Provide original reagent , Material Safety Data Sheet (MSDS) and Certification for Safe Transport of Chemical Goods
