Labomed Inc.

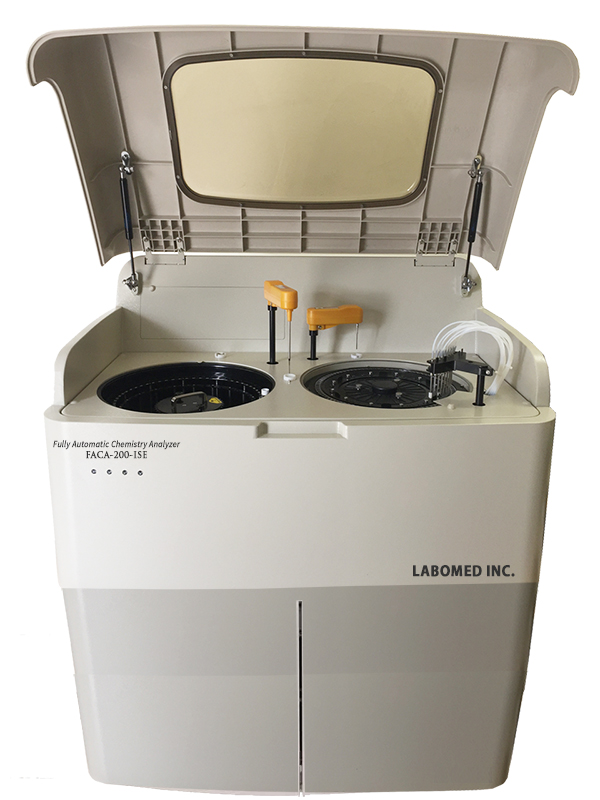

Fully Automatic Chemistry Analyzer

PDF Brochure


Labomed introduces an automatic chemistry analyzer with varying testing capacities.

200 tests/hour or 320 tests/hour with ISE

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Each set of FACA will come with one video to train in the installation, operation, and maintenance of the biochemistry analyzer.

System Functions

Type: Fully Automated, Random Access Biochemistry Analyzer.
Throughput: 200 tests, up to 320 tests/hr with ISE (optional).
Test Mode:  End point, Kinetics, Fixed Time, lmmunoturbidimetry, Monochromatic, Bi-chromatic and Multi-Standard Analysis, Linearity and Nonlinearity Calibration, Single and Dual Reagents  can be used.
Test Setting: Programmable for single-parameter, multi-parameter, combined parameter, batch test.
Parameter Setting: Completely open for editing test 3ertyuio

1 parameters and calculation parameters.

Sample System
Sample Tray:  44 sample positions for primary tubes, test tubes and various sample cups, Whole sample tray is removable and replaceable. Any position can be aligned as the emergency test position.
Sample Volume: 3 µL – 30 µL, programmed by 0.1 µL step.
Sample Handling: Dilute and  retest automatically when the sample' s concentration is beyond limitation.
Sample Probe: Liquid level detection and collision protection.
Probe cleaning:  Automatic washing for both inside and outside, carry over <0.1%.
Syringe: High performance syringe, durable  and  maintenance free.
Optional item: Barcode reader.

Reagent System
Reagent Tray: 44 positions for Single and Dual reagents, reagent positions can be aligned freely.
Refrigeration:  Refrigerated reagent compartment, 24 hours non-stop cooling with Peltier element to maintain temperature 4-15 ℃.
Reagent Bottle Volume: 40ml and 15ml, Slope bottom design.
Reagent volume:  150 µL - 300 µL, prograrnmed by 0.1µ1 step.
Reagent Probe: Automatically detecting the liquid level; collision protection.
Reagent pre-heating function, inventory checking.
Real time monitoring of reagent residual volume and auto alarm.
Probe Cleaning:  Washing  for  both  inside and outside, carry over <0. 1%.

Reaction System
Reaction Tray: 44 reaction cuvettes with 6mm optical path, good UV penetrability, low consumable, low cost.
Reaction Technology: Back – Dividing – Light – Technology.
Reaction Volume: 250 µL - 300 µL.
Temperature: 37℃, with +0.1℃ fluctuation.
Mixing System: Independent mixer.
Cleaning: Supports automatic cleaning of cuvettes and allows for complete drainage to reduce carry over.
Water consumption: 3L/hour.
Liquid Detection: Detergent, distilled water, waste liquid automatic detection and alarm.

Optical  System
Light Source:  Halogen lamp 6V/ 10W, life span > 3000 hours.
Wavelength:  340nm, 405nm, 450nm, 492nm, 505ml, 546nm, 578nm, 620nm, 670nm, 700nm
Wavelength  Accuracy:  +2nm.
Detector:  Photoelectron Diode Array.
Absorbance Range: 0.000 Abs -3.000 Abs.

Calibration and Quality Control
Calibration Mode:  Linear (one-point, two-point  and rnulti-point ), Logit-Log4P, Logit-Log5P, Spline, Exponential, Polynomial, Parabola.
QC Rules:  Westgard Multi-rule.
QC Mode:  Intra-day  and inter-day QC.

Operating System
Computer:  Windows 2000 System or above.
Data Management:  Large capacity for results and reaction curves to be displayed, saved and printed.
Report: Edit and print complete reports, format editable, supports network printing.
Port:  RS-232.


FACA200 will have 10 filters 340,405,450,492,505,546,578,620,670,700nm

Working  Conditions
Power: 220V ±22V, 50/60Hz ± 1Hz
Power Consumption: <400VA
Environmental    Temperature: 15℃ - 30℃
Humidity:  <85%
Dimension: 85x75x75 cm (LxWxH)
Weight: 145 Kgs

QC control function, based on Levy-Jennings chart analysis

This instrument is open system and can use any common brand reagents.

Accessories (Optional)

Item Specification
Reagent bottle 1 40ml 50Pcs
Reagent bottle 2 with holder 15ml 15Pcs
Reaction cuvette   80pcs
Serum Cup   1000pcs
Tube   1 set
Fuse(4A/8A)   4 sets
Lamp(13.8V/50W)   1Pc
Power cable   1Pc
Com Cable   1Pc
User manual   Operation software
Tool   1 set
Sensor   1Pc
Detect Probe   1Pc
Sample Probe   1Pc
Ground Cable   1Pc

(all of these accessories are included with the FACA-200)

Testing items:
Acid Phosphatase
Alkaline Phosphatase (ALP)
Aspartateamino Transferase - AST (SGOT)
Alanineamino Transferase - ALT (SGPT)
Blood Urea Nitrogen
Bilirubin - Direct
Bilirubin - Total
Ca+ (Calcium)
Chloride (Cl-)
CK (Creatine Kinase)
CSF protein
GGT (Gamma-Glutamyl Transferase)
High Density Lipoprotein
HDL Cholesterol
Inorganic Phosphorus
K+ (Potassium)
LDH (Lactate Dehydrogenase)
LDL Cholesterol
Low Density Lipoprotein
Mg (Magnesium)
Non Esterified Fatty Acid
Phosphorus (Inorganic)
Sodium (Na+)
Total Protein
Uric Acid
Urine protein


click here to fill out the Information Request Form
