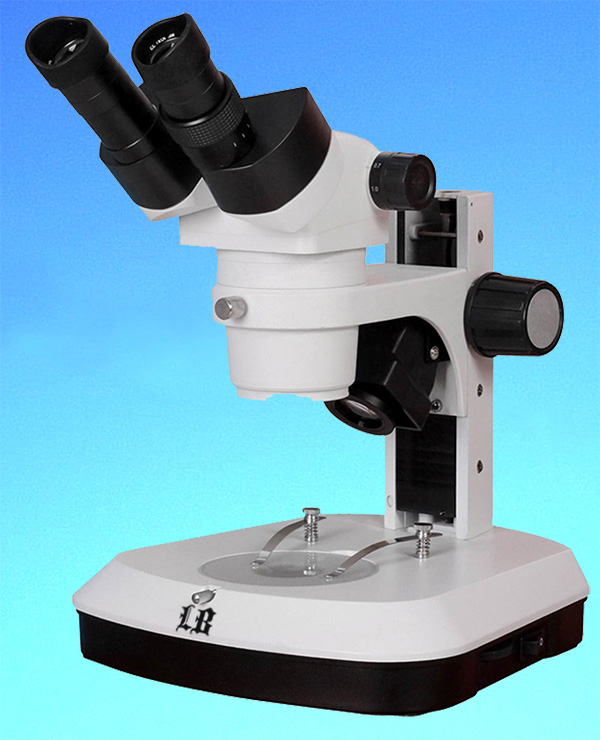

LB-354 Stereo Binocular Zoom Microscope
With LED Reflected And Transmitted Illumination
LB-354 Stereo Zoom Binocular Microscope With LED Reflected And Transmitted Illumination offers high quality 3D images throughout the zoom range. Optional eyepieces, auxiliary objectives, cold light source and ring light can be chosen for this microscope.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Top
of the Page
Technical Specifications
Applications
LB-354 Stereo Zoom Binocular Microscope With LED Reflected And Transmitted Illumination does have variety of applications such as schools, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, Gemology, engraving and repair of small parts.
| Optical System: |
Greenough optical system |
| Viewing head: |
Binocular head, inclined at 45 degree, rotatable 360 degree, Interpupilary distance 54-76mm |
| Eyepiece: |
10X/22mm high point (with eyecup) |
| Objectives: |
Zoom objective 0.7X to 4.6X |
Zoom ratio: |
1:6.6 |
Magnification: |
7X to 46X |
Working Distance |
110mm |
Illumination: |
LED reflected illumination 3W
LED transmitted illumination 3W
|
| Illumination (optional): |
Halogen reflected illumination 12V/15W
Halogen transmitted illumination 12V/15W |
| Package: |
32cmx30cmx42cm, 1pc/carton, 6Kg |
|
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
