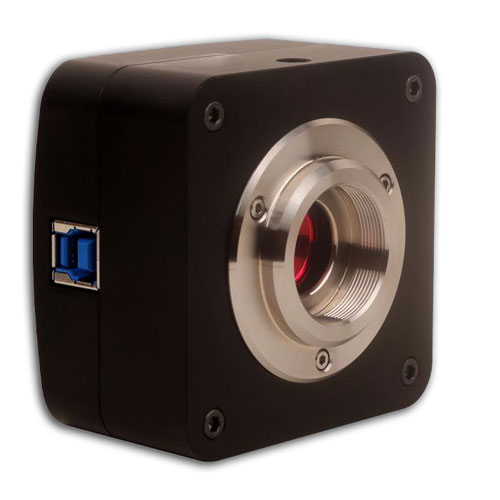

LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm)
USB3.0 CMOS Digital Camera (HISPVP)
LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) hardware resolution of 5M and come with the integrated CNC aluminum alloy compact housing.
LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.
LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Labomed, Inc. is certified by ISO 9001, has CE Conformity
and is FDA Licensed.
Features
The basic characteristic of LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) are as follows:
1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
2. Real-time 8/12bit depth switch(depending on sensor);
3. Super high sensitivity of 1146mv(IMX250);
4. Ultra low noise and low power dissipation by using column-parallel A/D conversion;
5. With hardware resolution of 5M;
6. Rolling Shutter or Global Shutter;
7. Standard C-Mount camera;
8. CNC aluminum alloy housing;
9. Ultra-fineTM HISPVP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 35 frames for 5M Resolution);
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.
Top
of the Page
Applications
The LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) can be widely used in bright field, dark filed, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
Technical Specifications
Model |
LC-20-A |
Sensor & Size(mm) |
5.0M/IMX250(Color, GS)
2/3” (11.1mm) |
Pixel Size(μm) |
3.45x3.45 |
G Sensitivity |
1146mv with 1/30s |
Dark Signal |
0.15mv with 1/30s |
FPS/Resolution |
35@2448x2048
88@1224x1024 |
Binning |
1x1 |
Exposure |
0.1ms~15s |
Other Specification |
|
Spectral Range |
380-650nm (with IR-cut Filter) |
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique |
Ultra-fineTM HISPVP /NA for Monochromatic Sensor |
Capture/Control API |
Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
Recording System |
Still Picture and Movie |
Cooling System |
Natural |
Operating Environment |
|
Operating Temperature(in Centidegree) |
-10~ 50 |
Storage Temperature(in Centidegree) |
-20~ 60 |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
Software Environment |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) |
|
OSx(Mac OS X) |
|
Linux |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
USB Port: USB3.0 High-speed Port |
|
Display: 17” or Larger |
|
CD-ROM |
Dimension
The LC-20-A 5.0M/IMX250(C, GS) 2/3” (11.1mm) USB3.0 CMOS Digital Camera (HISPVP) body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information
Standard Camera Packing List |
|
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|
B |
Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) |
|
C |
LC-20 Camera |
|
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
|
E |
CD (Driver & utilities software, Ø12cm) |
|
Optional Accessory |
|
|
F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
|
|
(Please choose 1 of them for your microscope) |
G |
Fixed lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
|
|
(Please choose 1 of them for your microscope) |
|
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera) , our engineer will help you to determine the right microscope camera adapter for your application. |
|
H |
(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|
I |
(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|
J |
(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube |
|
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
|
106012/TS-M2(X,Y=0.01mm/100Div.); |
|
|
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
Sample Images
