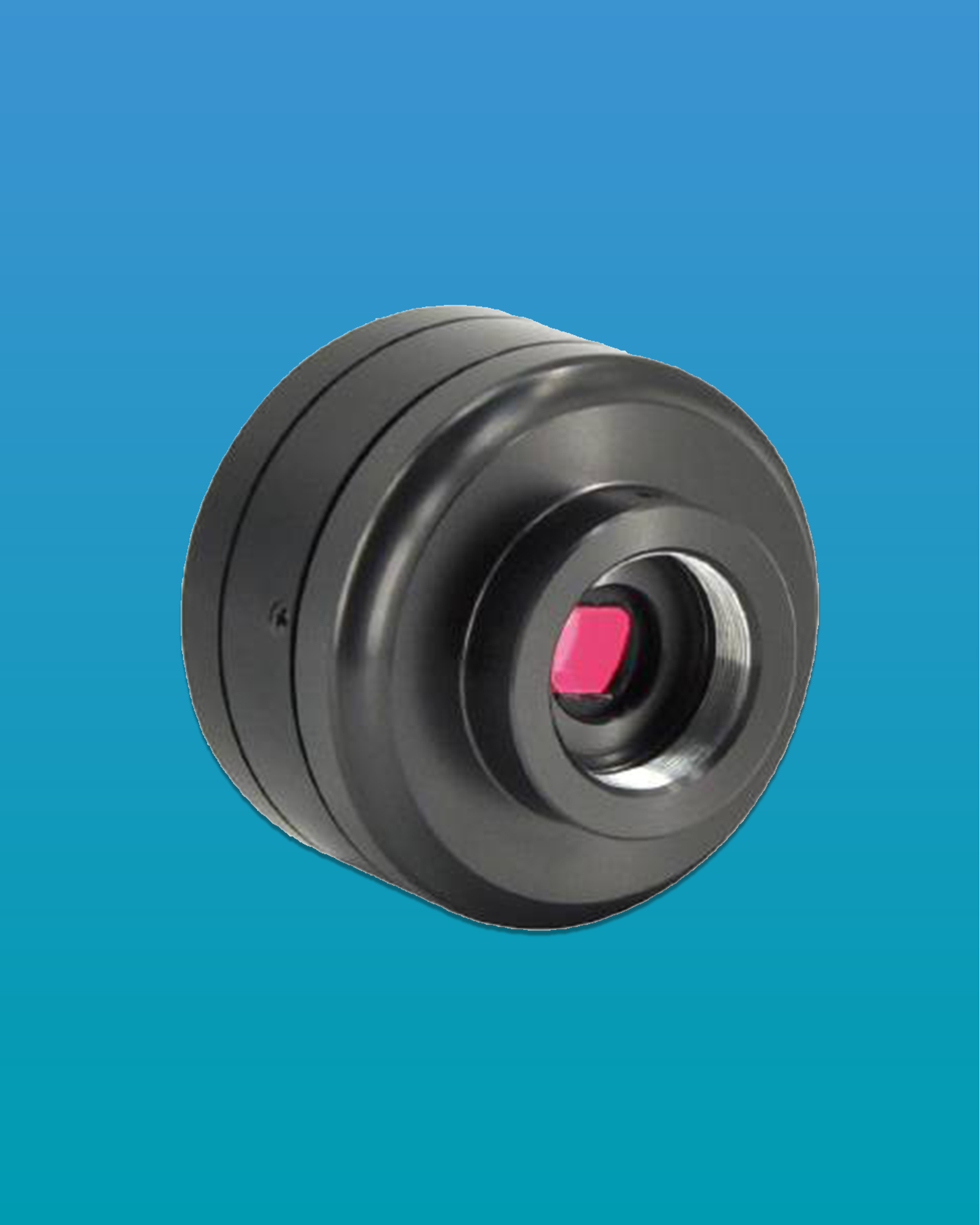

LC-38 2.0MP HDMI Digital Camera

PDF Brochure

LC-38 2.0MP HDMI Digital Camera are economic version with simple and compact structure CMOS eyepiece cameras. USB Type C is used as the data transfer interface. Also the LC-38 2.0MP HDMI Digital Camera comes with advanced video & image processing
application KoPa Capture.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Top of the Page

Features

• Ultra-wide dynamic and ultra-low-light camera.
• HDMI 1080P 60Hz preview, 30FPS record video.
• USB high-speed video transmission.
• Rich PC software functions.
• Built-in multifunctional image processing software.
• Local storage supports up to 128G and supports hot plug.
• Equipped with a wired controller as standard accessory to reduce work intensity.

Technical Specifications

Model	LC-38
Physical resolution	2.0MP
Sensor model	SONY CMOS IMX291
Exposure mode	Roller shutter exposure
Highest resolution	1920 x 1080 (2,073,600)
Sensor size	1/2.8''
Pixel size	2.9 µm x 2.9 µm
Dynamic Range	128dB
SNR	30dB
Spectral response	380~650nm
Exposure	Real-time auto, single auto, manual adjustment
White balance	Real-time automatic, single automatic, manual R G B adjustment
Preview resolution	HDMI: Auto-adaptive display, up to 1920X1080i60, 1020X1080P30
Record format	Snapshot Format: JPG Resolution: HDMI 1920x1080, Record Format: MOV Resolution: HDMI 1920X1080P30,1280x720P60
Record path	TF card (up to 128G,hot pluggable)
Power supply	USB TYPE C 5.0V DC (maximum current 1A)
Image output interface	HDMI TYPE C(Mini HDMI)



Dimension
