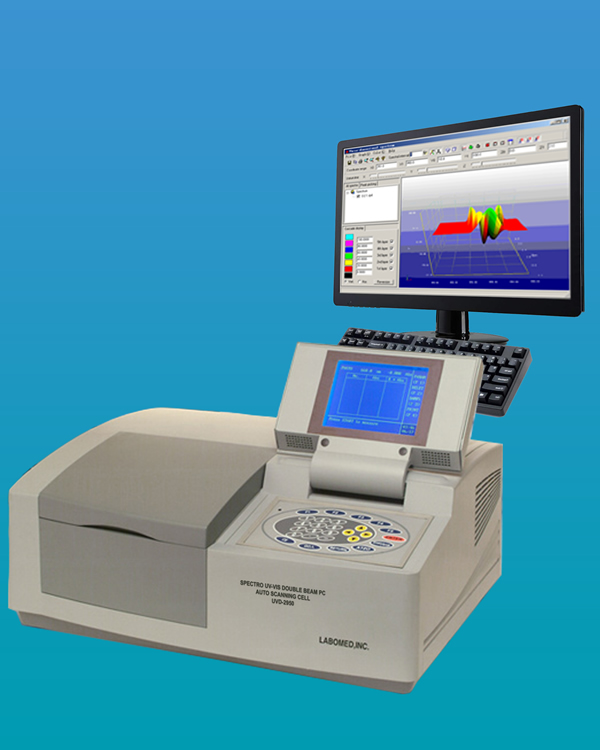

UV-Vis Double PC (Model UVD-2950) is a high performance
UV-Vis double beam automatic scanning spectrophotometer. It
is a two (2) cell spectrophotometer, now with a new and improved bandwidth of 1nm! . Model UVD-2950 spectrophotometer offers high performance,
ease of use and reliability, which can be used in various applications.
Spectrophotometer Model UVD-2950 can be used extensively for
qualitative and quantitative analysis in such fields as pharmaceutical
inspection, clinical analysis, petro-chemistry laboratories,
chemistry and biochemistry laboratories, DNA/RNA analysis as
well as in quality control departments, i.e. environmental control,
water management, food processing, and agriculture.
Spectro UV-Vis Double PC (Model UVD-2950) utilizes a
new optical system design and is microcomputer controlled. With
its focused-beam design, the system provides optimal and reproducible
results for small samples. The sample beam and the reference beam
are provided within the same sampling
space, facilitating a wider and longer scan of data, providing a more detailed view of the results in an easy to use environment. This instrument has excellent baseline stability and high resolution and permits scanning, quantitative analysis, kinetic spectrophotometric analysis and DNA/RNA analysis through PC control. This product is capable of processing data, from analytical and spectrum testing.
Spectro UV-Vis Double PC (Model UVD-2950) has a large
LCD screen which displays the menu screen and of course makes the device
user friendly. Additionally, this instrument permits the apparatus to be linked to a computer and
a printer to display the photometric and spectral data on the PC monitor. This connection
is controlled by the RS232 AND USB interface, compatible with Windows
XP, & and 8, using the new UVWin 6.0 UV-VIS application software.
Labomed, Inc. is certified byISO 9001-2013, has CE Conformity and is FDA Licensed. Spectro
UV-Vis Double PC (Model UVD-2950) with fixed bandwidth
of 1 nm is a high-performance, reliable, and exceptional value instrument
which is the hallmark of Labomed UV-Vis spectrophotometers.
This Spectro can be used by itself or linked to a PC and comes with a USB interface to connect to the computer.
The operation manual is available in 18 available different languages.
Labomed, Inc. is certified by
ISO 9001-2013, has CE Conformity and is FDA Licensed.
of the Page
Stability: The Double beam monitoring ratio system enhances
1nm fixed bandwidth New! : The Double beam monitoring ratio system enhances
Resolution: The big-caliber light path enhances the
instrument’s energy, reduces its noise and raises its
2 Cell Holder: Spectro UVD-2950 has 2 cell holders
for reference (standard) and sample.
light source: The light source performs an automatic interchange, selectable within the working range of the light source. The socket deuterium lamps and tungsten
lamps facilitate light source replacement, simplify maintenance
and reduce operation error.
Display: The large backlit LCD screen displays both
photometric values and spectral curves.
use of Computer Technology: Being computer controlled
with RS-232 interface and working on the Windows platform with
the UV/Win application software.
The key components are all adopted from the world famous manufacturer,
such as deuterium lamp, silicon photodiode and holographic grating,
which ensures the stabilization and credibility of the Instrument
for extended life.
System is optional (NOT INCLUDED).
OUR NEW SOFTWARE UV-WIN 6.0
WITH 3D SPECTRA
Now all Labomed, Inc. split and double beam spectrophotometers with our newly developed software called UV-Win 6.0 can be used with Windows XP, Windows 7 and Windows 8. It is capable of testing more applications with its RS-232 and USB connections, and supports the data export of measured results to the PC and then, if required, a USB flash drive, when additional data storage is required. One of the new features is that it provides 3-D graphing of the spectral results.
PC Windows Application Software (RS-232
Interface) to link Spectro to computer and printer:
- Photometric Measurement: Measuring
the photometric values at 1-10 wavelengths together with mathematical
calculations according to entered quotations.
- Spectrum Scan: Producing
Wavelength scans within the operating parameters on samples together
with powerful data handling facilities.
Determination: Determination of unknown concentration
with methods of 1-3 wavelength quantitation, together with fitting
of calibration curve of 1st ~ 4th order.
- Kinetics: Recording
curves of changing photometric values of samples against timecourse
at the selected wavelengths together with powerful data handling
- Output: With
the Windows clipboard, the measured data and graphics can be copied
to other applications software for reports.
of the Page
Auto Cell Holder
Optical Glass Cells 10mm.
Quartz Cells 10mm.
Instruction manual available in 18 different languages
Software CD for Windows 98/2000/XP/7
Software Operation Manual in 18 different languages
Block Light Cell
DVD of installation and how to use the Spectro
Kinetic Test System
Flow Through System
- Set of 2 performance testing filters (1 "E filter" for
photometric accuracy test and 1 didymium filter for wavelength accuracy
- Peltier constant temperature system (15 - 55 ºC
- Sipper flow through system (peristaltic pump and flowcell (Specify:
Spectro UV-Vis Double)
- Multi-purpose cell holder 20-30-40-50 Path Length
