Labomed Inc.

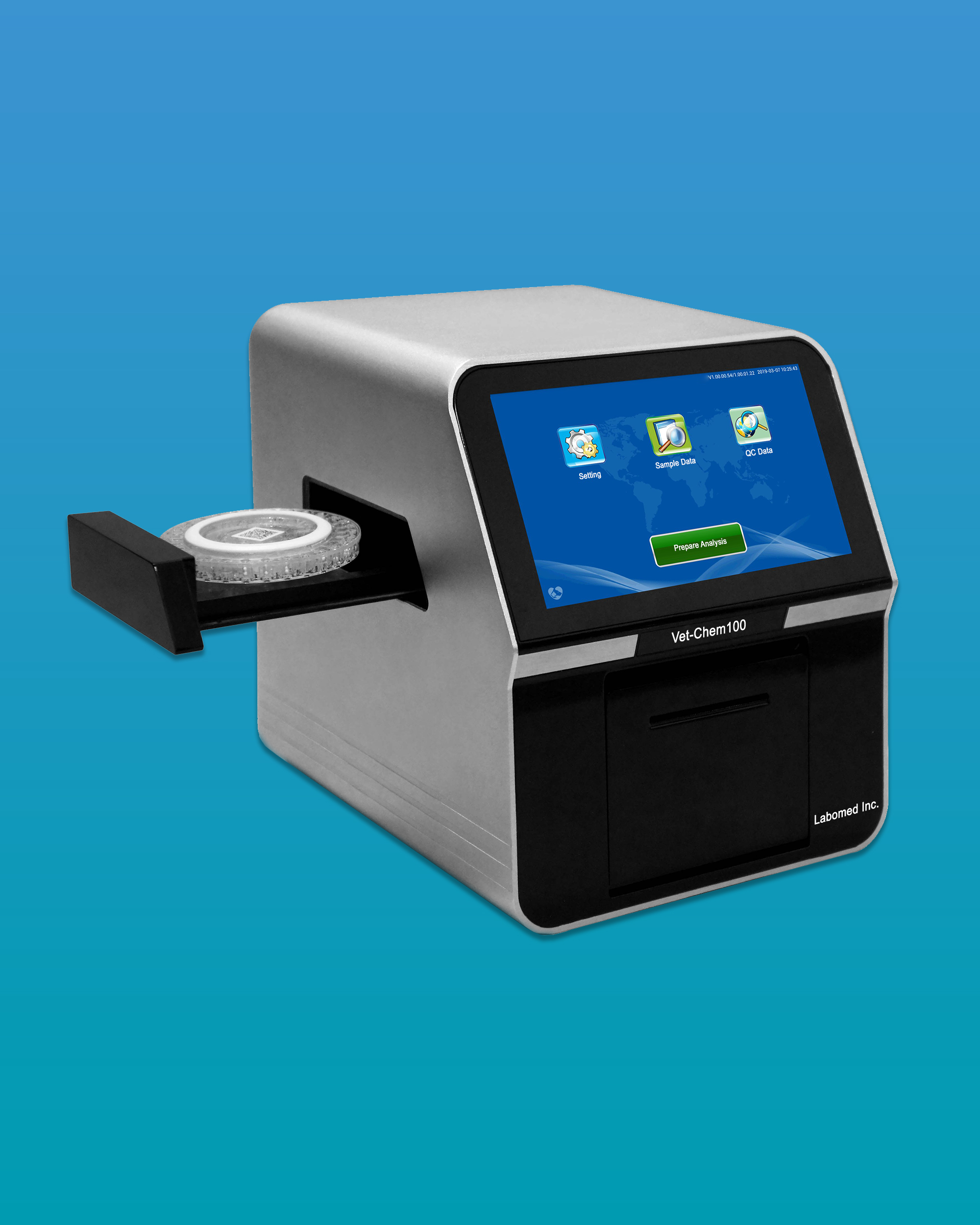

Automated Veterinary Biochemistry Analyzer

VET-CHEM100

VET-CHEM100 Automated Veterinary Biochemistry Analyzer realizes the miniaturization and automation of the analyzer by microfluidic technology. It has a built in intellegent quality control system, test results are accurate and reliable, the analyzer is easy to operate and take up a little space. It is an ideal diagnostic tool to help veterinarians assess the health of animals and it has become the professional choice of thousands of veterinary hospitals and clinics.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  1. Small and Portable.
    Small size, weight only 4kg.
    Small footprint and can be carried anywhere.
  2. Easy to use
    Only need to add samples, it’s easy to operate.
    No need to add diluent manually.
  3. Small sample volume
    The sample volume is only 100µl.
    Easy to do test for small animals and exotic animals.
  4. One analyzer for multiple uses
    Covers biochemistry, electrolyte, coagulation, feline and canine inflammation detection (c-CRP, f-SAA).
  5. Consumable advantages
    Freeze -dried reagents with 15-month shelf-life.
    Original disc microfluidic technology to avoid cross-contamination.
    Autonomous ultrasonic weldin, the quality is more guaranteed.
  6. Lifetime maintenance
    Imported key parts, no internal pumps, valves and other vulnerable parts.
    25-month warranty, lifelong free maintenance.



Top of the Page

Technical Specifications



Sample Volume 90-120µl
Sample Type Anti-coagulated whole blood, serum, plasma
Bar Code Two-dimensional bar code
Storage MAX 500.000 results
Temparature 37±0.3°C
Resolution 0.001 Abs
Testing Method End point, kinetic, fixed time and turbidimetry
Operational Environment Temperature: 10-30°C, Humidity: ≤ 85%
Light Source 12V/20W, halogen tungsten lamp's life span is over 2500 hours
Power AC 100-240V, 50/60Hz
Weight 4Kg
Testing Principle Absorption spectroscopy, transmission turbidimentry
Printer Built-in thermal printer
QC & Calibrate Real time full-auto finish
Absorbance 0-3.0Abs
Display Android 7.0 inch 800*480, multi-point capacitive touch screen
Connectors 2 USB ports
Language English, Italian, Portuguese, Russian, Spanish, Deutsch, French
Rated Power 100VA







ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
