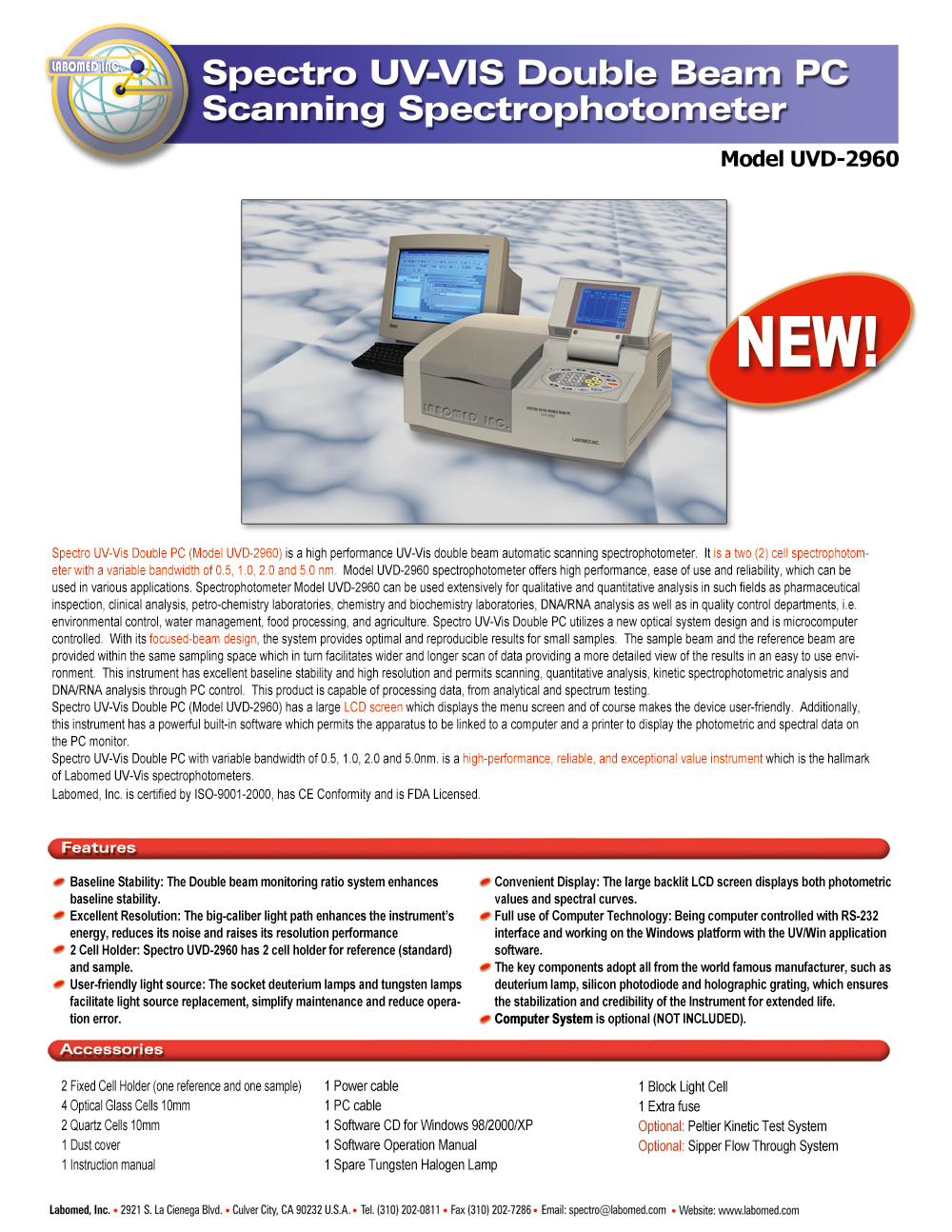

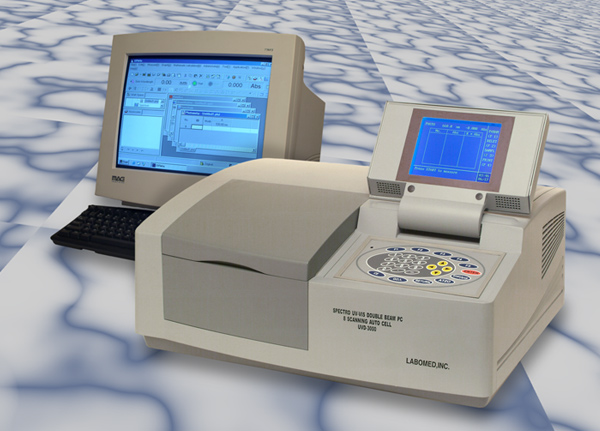

UV-Vis Double PC (Model UVD-2960) is a high performance
UV-Vis double beam automatic scanning spectrophotometer. It
is a two (2) cell spectrophotometer with a variable bandwidth of 0.5, 1.0, 2.0 and 5.0nm.
Model UVD-2960 spectrophotometer offers high performance,
ease of use and reliability, which can be used in various applications.
Spectrophotometer Model UVD-2960 can be used extensively for
qualitative and quantitative analysis in such fields as pharmaceutical
inspection, clinical analysis, petrochemistry laboratories,
chemistry and biochemistry laboratories, DNA/RNA analysis as
well as in quality control departments, i.e. environmental control,
water management, food processing, and agriculture.
Spectro UV-Vis Double PC (Model UVD-2960) utilizes a
new optical system design and is microcomputer controlled. With
its focused-beam design, the system provides optimal and reproducible
results for small samples. The sample beam and the reference beam
are provided within the same sampling space, facilitating wider and longer scan of data providing a more detailed view of the results
in an easy to use environment. This instrument has excellent baseline
stability and high resolution and permits scanning, quantitative analysis,
kinetic spectrophotometric analysis, protein, nucleic acid, DNA/RNA analysis, micro and macro measurements through PC control. This
product is capable of processing data, from analytical and spectrum testing.
Spectro UV-Vis Double PC (Model UVD-2960) has a large
LCD screen which displays the menu screen and of course makes the device
user friendly. Additionally, this instrument permits the apparatus to be linked to a computer and
a printer to display the photometric and spectral data on the PC monitor. This connection
is controlled by the RS232 AND USB interface, compatible with Windows
XP, & and 8, using the new UVWin 6.0 UV-VIS application software.
Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed. Spectro UV-Vis Double PC (Model UVD-2960) with variable bandwidth
of 0.5, 1.0, 2.0 and 5.0 nm is a high-performance, reliable, and exceptional value instrument
which is the hallmark of Labomed UV-Vis spectrophotometers.
The operation manual is available in 18 available different languages.
This Spectro can be used by itself or linked to a PC and comes with a USB interface to connect to the computer.
Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.
of the Page
Stability: The Double beam monitoring ratio system enhances
Resolution: The big-caliber light path enhances the
instrument’s energy, reduces its noise and raises its
2 Cell Holder: Spectro UVD-2960 has 2 cell holder
for reference (standard) and sample.
light source: The light source performs an automatic interchange, selectable within the working range of the light source. The socket deuterium lamps and tungsten
lamps facilitate light source replacement, simplify maintenance
and reduce operation error.
Display: The large backlit LCD screen displays both
photometric values and spectral curves.
use of Computer Technology:Being computer controlled with compatible with Windows
XP, & and 8, using the new UVWin 6.0 UV-VIS application software, offering a wide range of uses and applications.
The key components are all adopted from the world famous manufacturer,
such as deuterium lamp, silicon photodiode and holographic grating,
which ensures the stabilization and credibility of the Instrument
for extended life.
System is optional (NOT INCLUDED).
OUR NEW SOFTWARE UV-WIN 6.0
WITH 3D SPECTRA
Now all Labomed, Inc. split and double beam spectrophotometers with our newly developed software called UV-Win 6.0 can be used with Windows XP, Windows 7 and Windows 8. It is capable of testing more applications with its RS-232 and USB connections, and supports the data export of measured results to the PC and then, if required, a USB flash drive, when additional data storage is required. One of the new features is that it provides 3-D graphing of the spectral results.

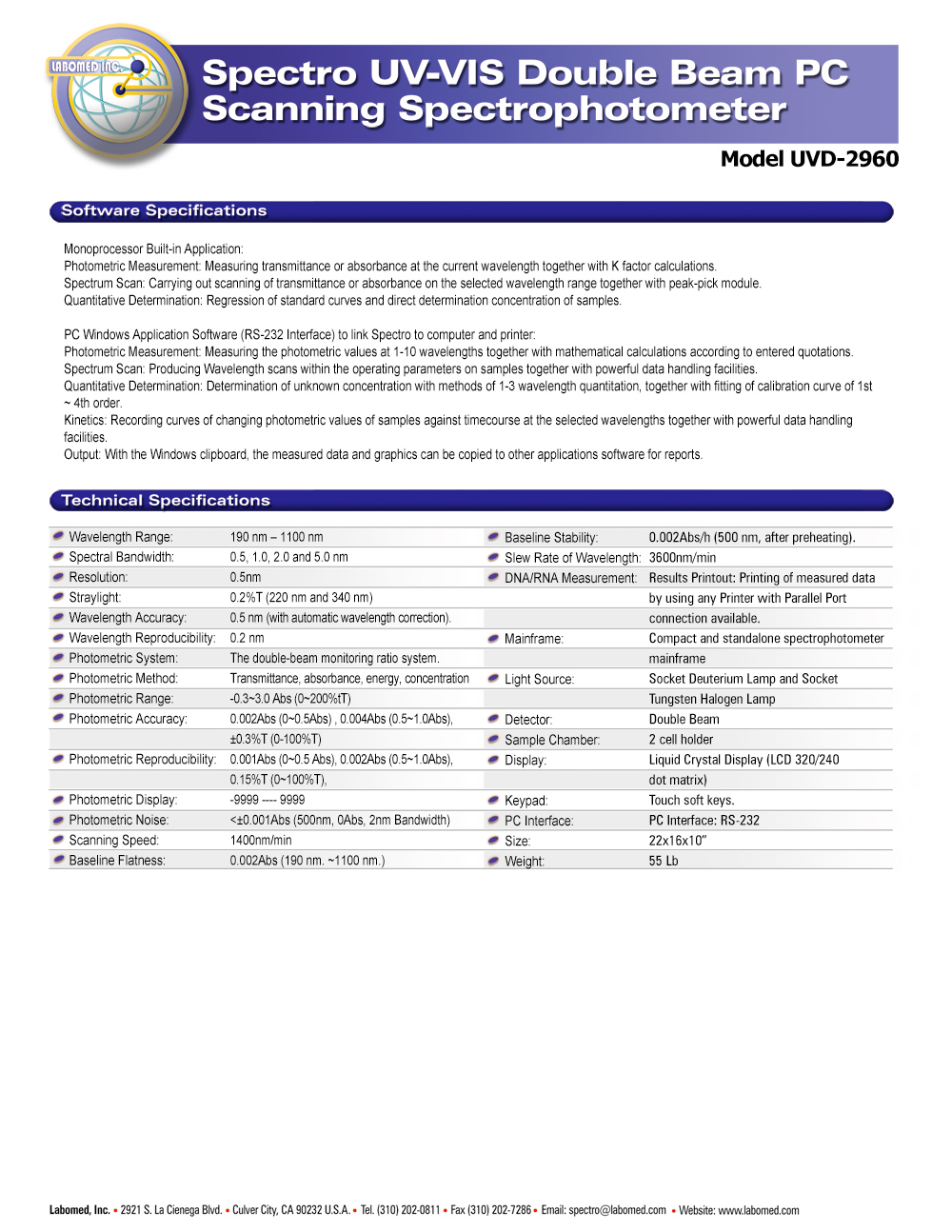

PC Windows Application Software (RS-232
Interface) to link Spectro to computer and printer:
- Photometric Measurement: Measuring
the photometric values at 1-10 wavelengths together with mathematical
calculations according to entered quotations.
- Spectrum Scan: Producing
Wavelength scans within the operating parameters on samples together
with powerful data handling facilities.
Determination: Determination of unknown concentration
with methods of 1-3 wavelength quantitation, together with fitting
of calibration curve of 1st ~ 4th order.
- Kinetics: Recording
curves of changing photometric values of samples against timecourse
at the selected wavelengths together with powerful data handling
- Output: With
the Windows clipboard, the measured data and graphics can be copied
to other applications software for reports.
of the Page
2 Cell Holder
8 Optical Glass Cells 10mm.
2 Quartz Cells 10mm.
1 Dust cover
1 Instruction manual available in 18 different languages
Software CD for Windows 98/2000/XP/7
Software Operation Manual available in 18 different languages
Block Light Cell
DVD of installation and how to use the Spectro
Kinetic Test System
Flow Through System
- Set of 2 performance testing filters (1 "E filter" for
photometric accuracy test and 1 didymium filter for wavelength accuracy
- Peltier constant temperature system (15 - 55 ºC
- Sipper flow through system (peristaltic pump and flow cell (Specify:
Spectro UV-Vis Double)
- Multi-purpose cell holder 20-30-40-50 Path Length
