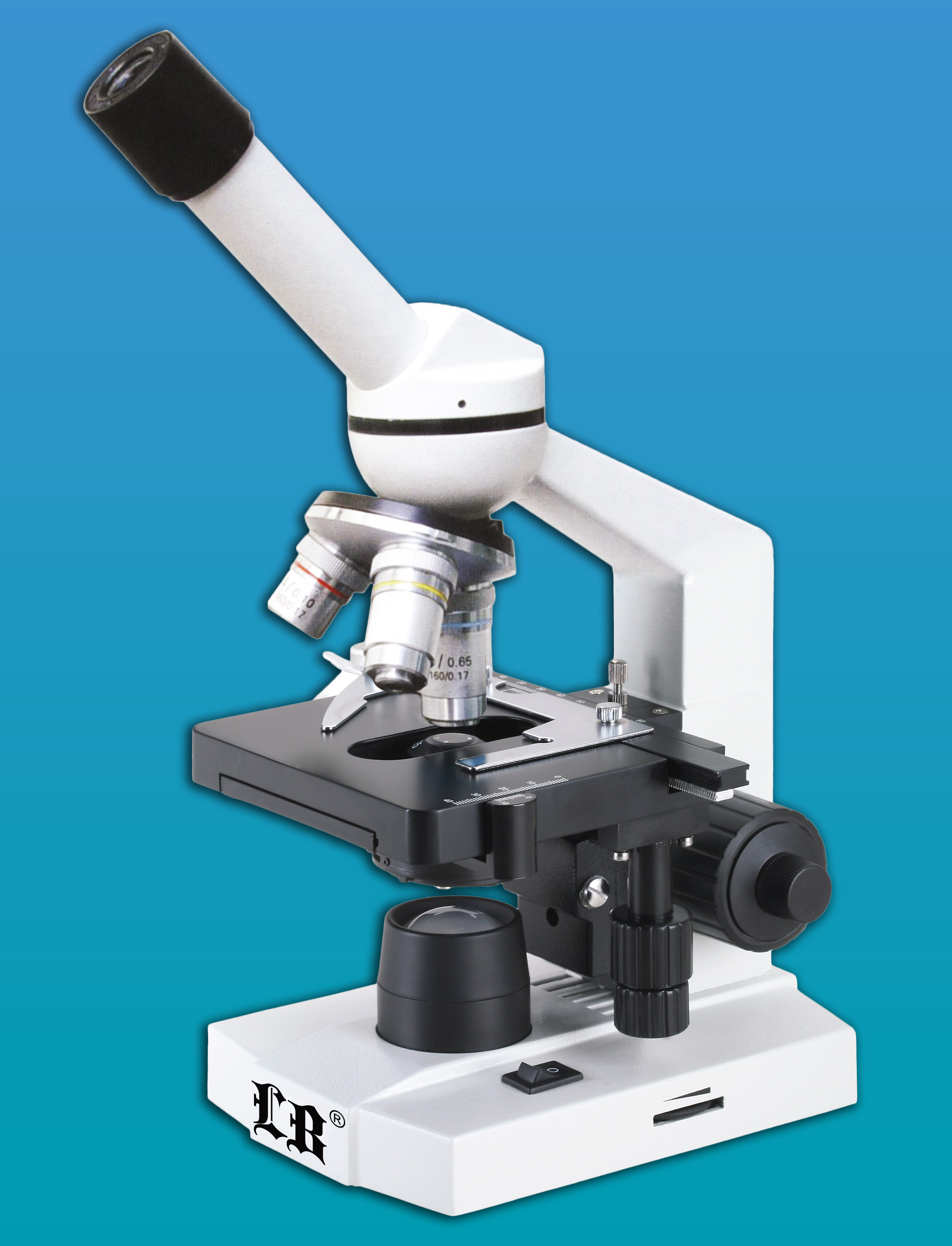

LB-114 Biological Monocular Microscope
with Wide Field and LED Illumination

LB-114 Biological Monocular Microscope with Wide Field and LED Illumination are more comfortable and reliable operation with modern design. These microscopes are economical, with all basic features for educational use in elementary and high school.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.

Top of the Page

Technical Specifications

Applications

These microscopes are economical microscope with all basic features for educational use in elementary and high school.

Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

Nosepiece

Triple Nosepiece

Eyepiece

Wide Field Eyepiece WF10×/18

Achromatic Objective

4×, 10×, 40×(S)

Stage Plain Stage with Slide Clips 110×120mm

Focusing

Coaxial Coarse and Fine Adjustment

Condenser

Single Lens NA 0.65 with Iris Diaphragm

Illumination

LED Illumination, Brightness Adjustable

Package

Styrofoam & Carton, Dimension 28×20×40cm, 3kg

Dimensions

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
