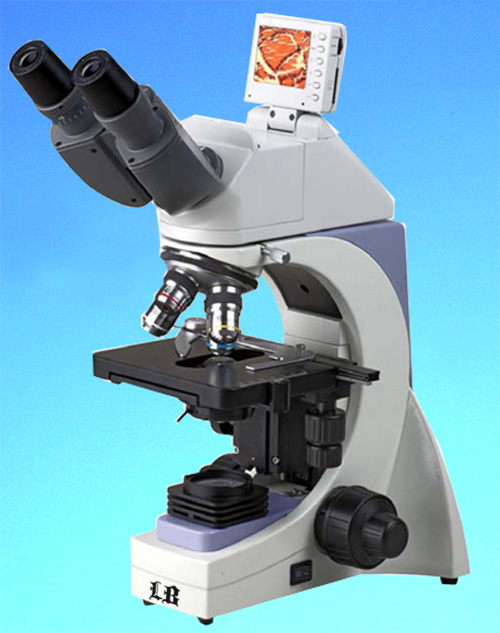

LB-1251 LCD Digital Biological Microscope
with Infinite Optical System

LB-1251 Compound LCD Digital Biological Microscope (3.0MP) with Infinite Semi-Plan Optical System (Infinity Color Corrected System) and Wide Field integrates traditional optics and digital technology. A 3.0MP digital camera is built in the head of the microscope, users can observe image on LCD screen and ocular at the same time. It support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time. These microscopes make the observation more comfortable and resolve the fatigue caused by using a traditional microscope for a long time.

These microscopes integrate magnification, digital enlarge, imaging display, capture photo and video, store captured photos and videos on the optional SD card. Users can transfer images and videos to PC via included USB cable.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Varity observation mode: Observe image on LCD screen and ocular at the same time; Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.
  • 2.5” TFT LCD screen with 4× digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
  • Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords.
  • Expandable to Max 1G SD Card slot for more storage capacity.
  • Support Windows 2000/XP/Vista and equipped with powerful image processing software.
  • Integrated traditional optics and digital technology.




Top of the Page

Technical Specifications

Applications

LB-1251 Compound LCD Digital Biological Microscope (3.0MP) with Infinite Semi-Plan Optical System (Infinity Color Corrected System) and Wide Field are widely used in teaching, medical, biological and scientific research fields.

Optical Part

Eyepiece

Wide Field Eyepiece WF10×/18

Objective

Infinite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×

Condenser

Abbe NA1.25 Condenser with Iris Diaphragm and Filter

Stage

Double Layers Mechanical Stage 140×140mm/75×50m

Nosepiece

Quadruple Nosepiece

Illumination

6V/ 20W Halogen Lamp Illumination, Adjustable Brightness

Digital Head

LCD

2.5” Color TFT LCD display, 100°maximum elevation angle, pivoting LCD screen

Output

USB, AV, S-Video and Audio are available

Image sensor

3.0 Megapixels CMOS sensor

  Resolution Static Image 2048x1536, Video 320x240
  Memory 32MB, Built-in memory and expandable to maximum 1GB SD card
  System Windows 2000, XP, Vista, Win 7, Win 8
  Software ScopeImage 9.0



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
