Labomed Inc.

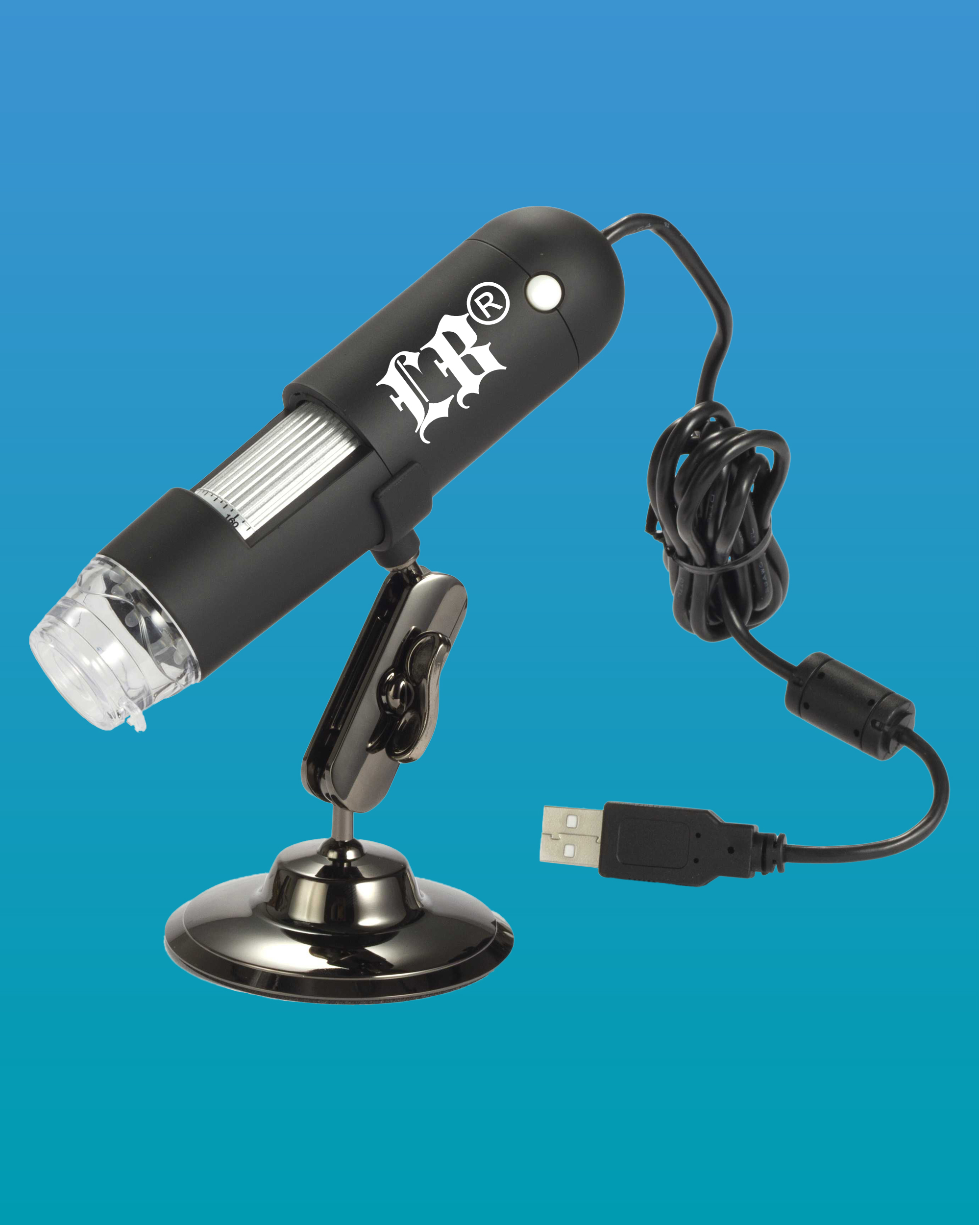

LB-130 USB Digital Microscope

LB-130 USB Digital Microscope provides powers from 10x to 400x with 1.3MP resolution. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects. A rugged, metal stand is included for holding the microscope steady at various positions for viewing and/or imaging. With the included software, you can observe the magnified images, capture video, take snapshots and do measurement with Windows Win7, Win 8, Win 10 32 bit and 64 bit, Mac OS X 10.5 or above Operating system.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Easy to use portable digital microscope with USB output interface
  • 10X to 400X Magnification;
  • 1.3 Mega Pixels CMOS sensor, interpolate to 2MP with software;
  • Manual Focus from 10mm to 500mm;
  • LED illumination with 8pcs LED lamps, brightness adjustable;
  • Photo management software, Auto White Balance and Exposure;
  • Powered by USB 2.0 cable, 5V DC;
  • Metal stand to hold the microscope steady;
  • Multi-language support: English, Germany, Spanish, French, Russian;
  • Operating System: Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above.

Top of the Page

Technical Specifications

Applications

LB-130 USB Digital Microscope can be used for: Hobbyists, Educators, Medical Labs, Industrial Inspection, Engineering Applications, Teachers, Students, Science Applications, Doctor’s Offices, Police Agencies, Government Testing, and general use by consumers. It is ideally suited for examining solid objects such as coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials, and many other objects.

Image Sensor

1.3 Mega Pixels CMOS

Capture Resolution

1600×1280, 1280×1024, 1024×960, 1024×768, 800 ×600, 640×480, 352×288, 320×240

Focus Ranger

Manual Focus From 10mm to 500mm

Frame Rate

Max30f/s under 600 Lus Brightness

Magnification Ratio

10X to 400X

Video Format

AVI format

Still Image Format

JPEG or BMP

Light Source

8 LED adjustable by control wheel

PC Interface

USB 2.0

Power Supply

5V DC from USB port

Operation System

Windows Win7, Win 8, Win 10 32 bit & 64 bit, Mac OS X 10.5 or above

OSD Language

English, German, Spanish, French, Russian

Bundled Software

MicroCapture with measurement & calibration function

Size

125 mm (L) x33mm (R)

Weight

140g

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
