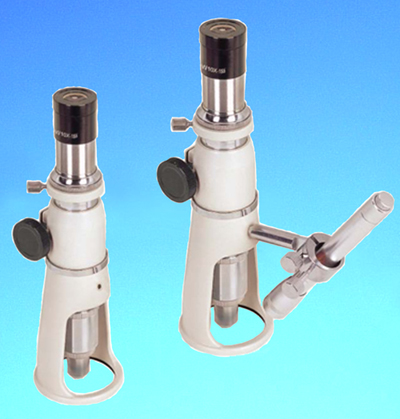

LB-132 Portable Measuring Microscope

LB-132 Portable Measuring Microscopes feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Eyepiece 10× with reticle and diopter adjustment.
  • Various kinds of reticles for eyepiece to meet different requirements.


Top of the Page

Technical Specifications

Applications

LB-132 Portable Measuring Microscopes are mainly used for measuring or viewing purposes in production and laboratory area. They are particularly suitable for examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Total Magnification

50×

Mechanical Tube Length

160mm

Eyepiece

10×

Objective

Numerical Aperture

0.12

Diameter of Viewing field in Eyepiece

φ18mm

Eyepiece Reticle

0.1mm

Fine Division

0.02mm

Working Distance

17.6mm

Focus Range

30mm

Diameter of Bearing Plane

φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, No.7 battery



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
