Labomed Inc.

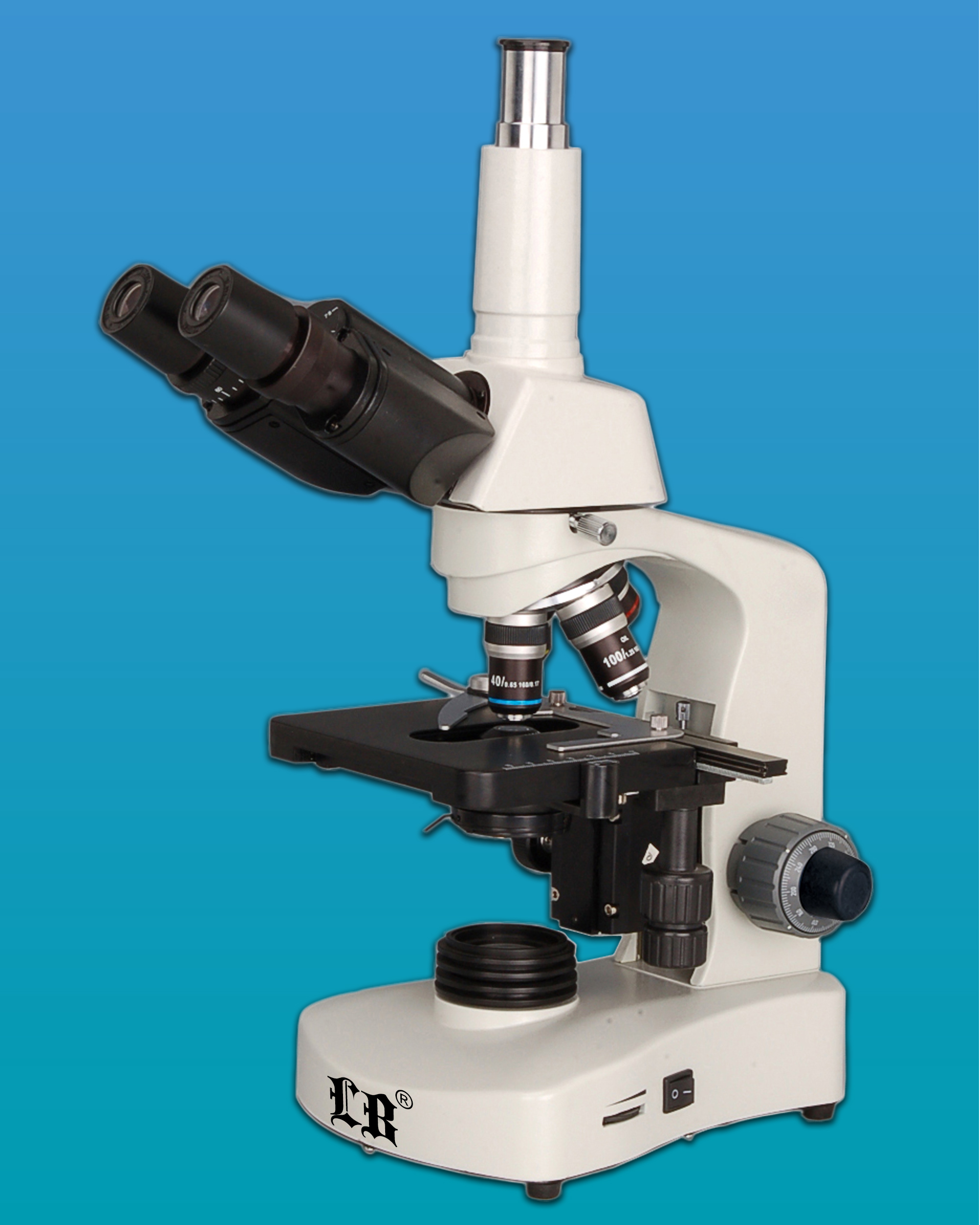

LB-226 Trinocular Biological Microscope with
LED Illumination and Six
Achromatic Objectives
(4x, 10x,
20x, 40x, 60x, 100x)

LB-226 Trinocular Biological Microscope with LED Illumination and Six Achromatic Objectives (4x, 10x, 20x, 40x, 60x, 100x) is an economic, practical and easy to operate trinocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields. With a trinocular head and a digital camera (or digital eyepiece), it can be easily converted to a digital microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Top of the Page

Technical Specifications

Applications

LB-226 Trinocular Biological Microscope with LED Illumination and Six Achromatic Objectives (4x, 10x, 20x, 40x, 60x, 100x) is ideally suited for the school biological education and medical analyses areas. We can use it to observe all kinds of slides. It can be widely used in clinics, hospitals, schools, academic labs and scientific research departments.

Viewing Head

Seidentopf  Trinocular  Head,  Inclined  at  30°,  Interpupillary Distance 55-75mm

Eyepiece

WF10×/18

Objective

Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× (oil)

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial  Coarse  &  Fine  Adjustment,  Moving  Range  24mm,  Fine Division 0.004mm, Fine Stroke 0.4mm per rotation, coarse stroke 37.7 per rotation

Condenser

Abbe NA 1.20 with Iris Diaphram & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Immersion Oil 5ml immersion oil

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY



click here to fill out the Information Request Form
