Labomed Inc.

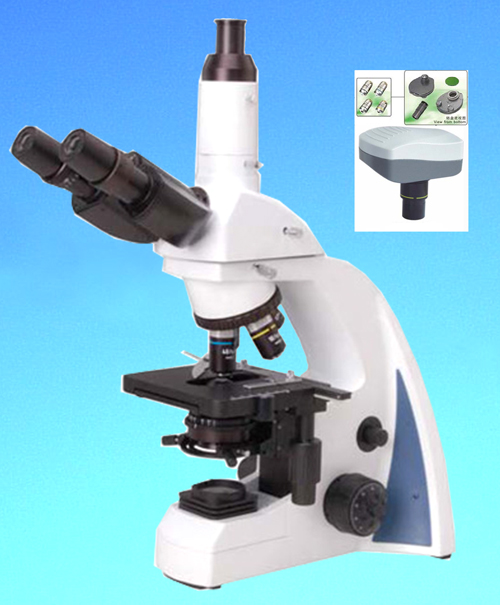

LB-243 Biological Trinocular Microscope with Simple Phase Kit, Digital Camera (3.2MP) and Infinite Optical System

LB-243 Trinocular Biological Microscope with Wide Field, Simple Phase Contrast Kit, Digital Camera (3.2MP) and Infinite Semi-Plan Optical System(Infinity Color Corrected System) With precision machining equipment, advanced alignment technology, and an infinity color corrected system, LB-243 binocular microscope is a precise biological microscope. With a trinocular head, digital cameras can be added to this microscope for digital image capture and analysis.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Extra wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and interpupillary adjustable
  • Sliding-in Centerable Condenser Adjustable
  • Handle for easy carrying
  • Lamp replacement by directly removing housing
  • The Simple Phase Contrast Kit
  • The Color Digital Camera is 3.2MP.


Top of the Page

Technical Specifications

Applications

LB-243 Trinocular Biological Microscope with Simple Phase Contrast Kit, Digital Camera (3.2MP) and Infinite Optical System is an ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm

Eyepiece

Wide Field Eyepiece WF 10×/18 with diopter adjustment

Objective

Infinitive Semi-Plan Achromatic Objectives 4× 10× 40× 100×

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in condenser NA1.25

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 20mm

Illumination

3W LED, 6V/ 20W Halogen Lamp Brightness Adjustable (optional)

Package

1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg

Optional Accessories
(must be ordered separately)

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
