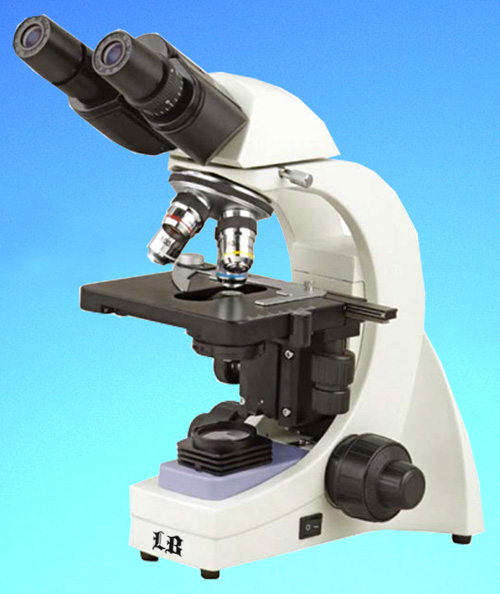

LB-250 Binocular Biological Microscope
(Anti-Fungus) with Wide Field and Sharp Image Display

LB-250 Binocular Biological Microscope (Anti-Fungus) with Wide Field and Sharp Image Display With precision machining equipment and advanced alignment technology, LB-250 biological microscopes are excellent biological microscopes.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Sharp Image Display with Excellent Optical System.
  • Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-Fungus Technology.
  • Comfortable Operation with Ergonomic Design.

Top of the Page

Technical Specifications

Applications

This microscope is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 18

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Condenser

NA 1.25 Abbe Condenser with Iris Diaphragm and Filter

Focusing

Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 2µm

Illumination

LED Illumination
Halogen Lamp 6V/ 20W (optional), Brightness Adjustable

Filter

Blue Filter & Green Filter

Dimension & G.W.

36cm*26cm*46.5cm, 10kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
