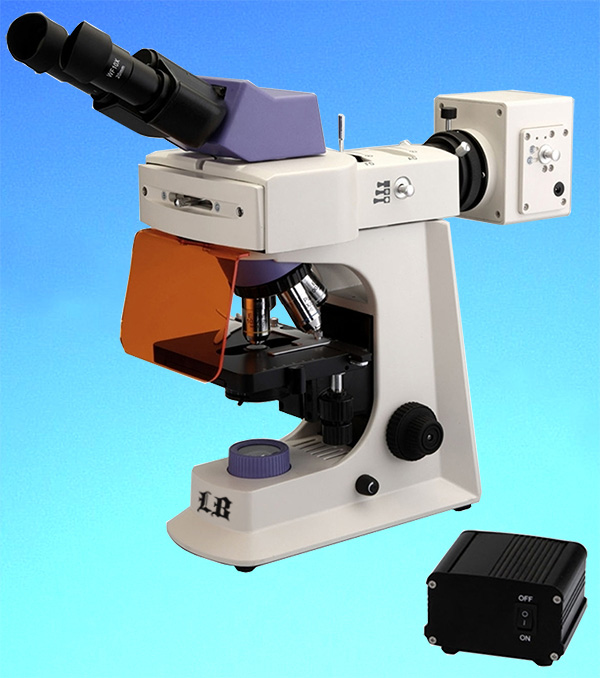

LB-263 Biological Binocular Flourescent Microscope With LED Illumination and
Infinite Optical System (Infinity Color Corrected)

LB-263 Biological Binocular Flourescent Microscope With LED Illumination and Infinite Optical System (Infinity Color Corrected) has an infinite optical system. The microscope is using LED illumination as the light source; the life span of the LED lamp (more than 50000 hours) is much longer than mercury lamp.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Excellent fluorescent image with infinite optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.

Top of the Page

Technical Specifications

Applications

LB-263 Biological Binocular Flourescent Microscope With LED Illumination and Infinite Optical System (Infinity Color Corrected) are used to study the absorbing, transportation, chemicals distribution and positioning in cells. They are widely used in disease examinations, immune diagnosis and life science areas.

Optical System

Infinite optical system

Viewing Head

Seidentopf Binocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm.

Eyepiece

WF 10X/20 with diopter adjustment
WF 16X/13 (optional)

Objective

Infinite E-Plan Achromatic objectives 4X, 10X, 40X, 100x (OIL)

Nosepiece

Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional)

Focusing

Coaxial coarse and Fine focusing knobs,
Travel range: 26mm, scale: 2um

Stage

Stage size 145X140mm, Cross Travel 76X52mm, Two slide holder

Condenser

Abbe condenser NA 1.25 with Iris Diaphragm

Illumination

6V/20W Halogen lamp, Brightness adjustable
3W LED illumination, Brightness adjustable (optional)

Reflected Light Source



Excitation

Dichroic

Mirror

Barrier

Filter

Blue excitation

BP460~490

DM505

BA515



Green excitation

BP510~550

DM570

BA590


Lamp

3W LED lamp (465-476nm)

Immersion Oil

Flourescent free oil

Package:

42cmx28cmx45cm, 40cmx20cmx40cm, 12Kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
