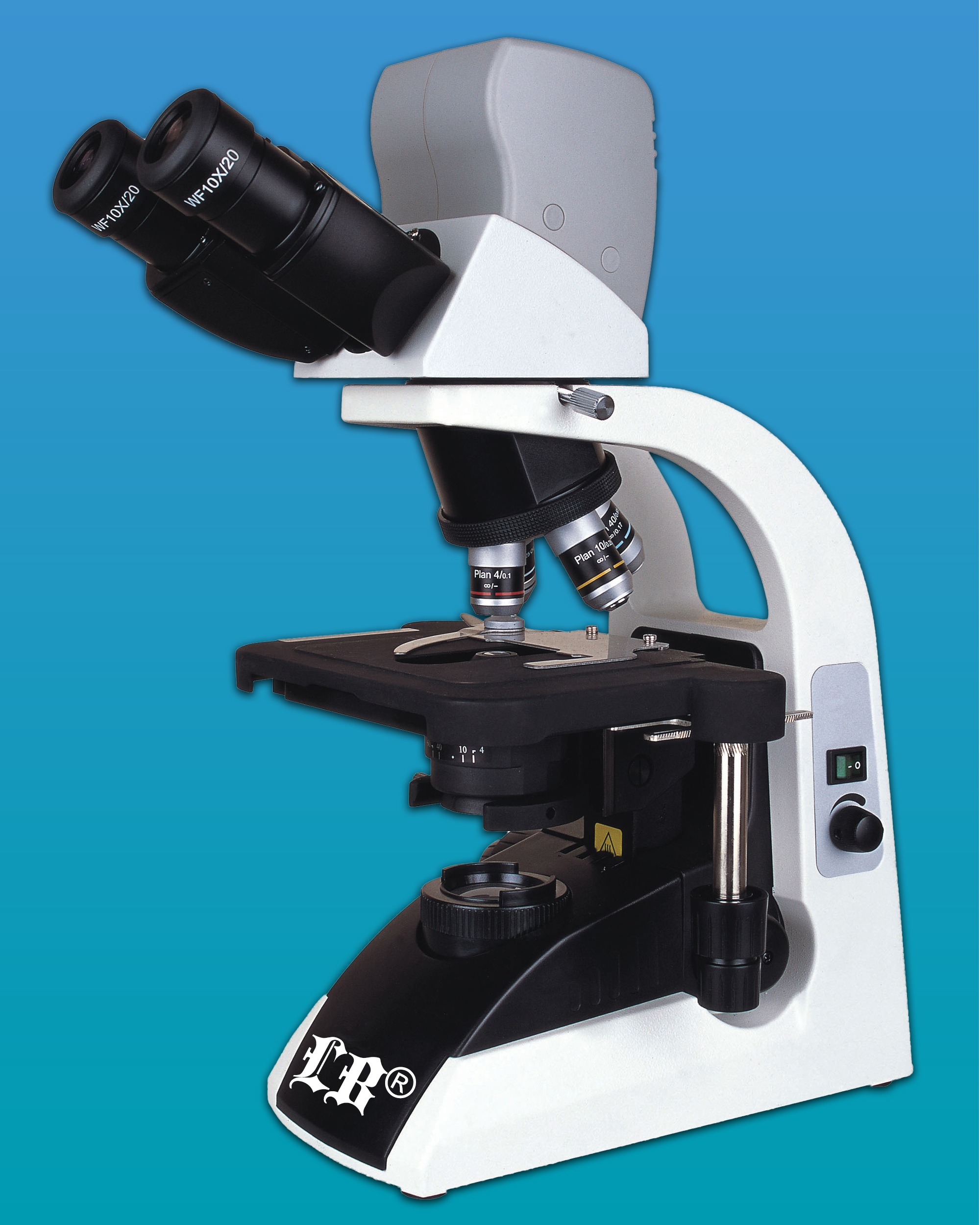

LB-272 Biological Binocular Digital Microscope with Infinite Optical System and Built-in 3.2MP Digital Camera (Anti-Fungus)

LB-272 Biological Binocular Digital Microscope with Infinite Optical System (Infinity Color Corrected System) and Built-in 3.2MP Digital Camera (Anti-Fungus) is a high level microscope which is specially designed for college education, medical and laboratory research. With a built-in 3.2MP digital camera, an infinity color corrected system, innovative structure, excellent optical performance and easy to operate system, LB-272 digital biological microscope makes your works enjoyable.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Excellent image quality with infinite optical system.
  • Comfortable operating with ergonomic design.
  • Better illumination with sliding-in centerable condenser, convenient to replace phase contrast and dark field condenser.
  • Advanced design of mechanical stage structure prevents the scratches of users.


Top of the Page

Technical Specifications

Applications

LB-272 Biological Binocular Digital Microscope with Infinite Optical System (Infinity Color Corrected System) and Built-in 3.2MP Digital Camera (Anti-Fungus) is an ideal instrument for the biological, histological, pathological, bacteriology, immunization, and pharmacy fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Viewing Head with built-in 3.2MP camera, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

Eyepiece

WF10×/20

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100

Nosepiece

Backward Quadruple Nosepiece (Can be supplied with backward quintuple nosepiece (optional))

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm

Stage

Rectangular 216×150mm, Cross Travel 78×54mm, Using Low-positioned X/Y Coaxial Control Knob, Can Hold Two Sides

Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

Illumination

LED Illumination
Halogen Lamp 12V/20W (optional)
Kohler illumination (optional)

Dimension & G.W.

38cm*26cm*51cm, 10kg

Dust Cover Supplied with dust cover

Digital Camera Parameters

Image Sensor

1/2 inch 3.2MP CMOS Image Sensor(4:3)

Resolution

2048×1536

Pixel size

3.2μm × 3.2μm

Shutter type

Electronic Rolling Shutter

Frame rate

9 fps @ 2048×1536

Sensitivity

61dB

SNR

43dB

Operating temperature

0°C ~ 60°C

Image Output

USB2.0

Software

ScopeImage 9.0

Operating System

Windows 2000/ XP/ Vista/Win7/Mac



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
