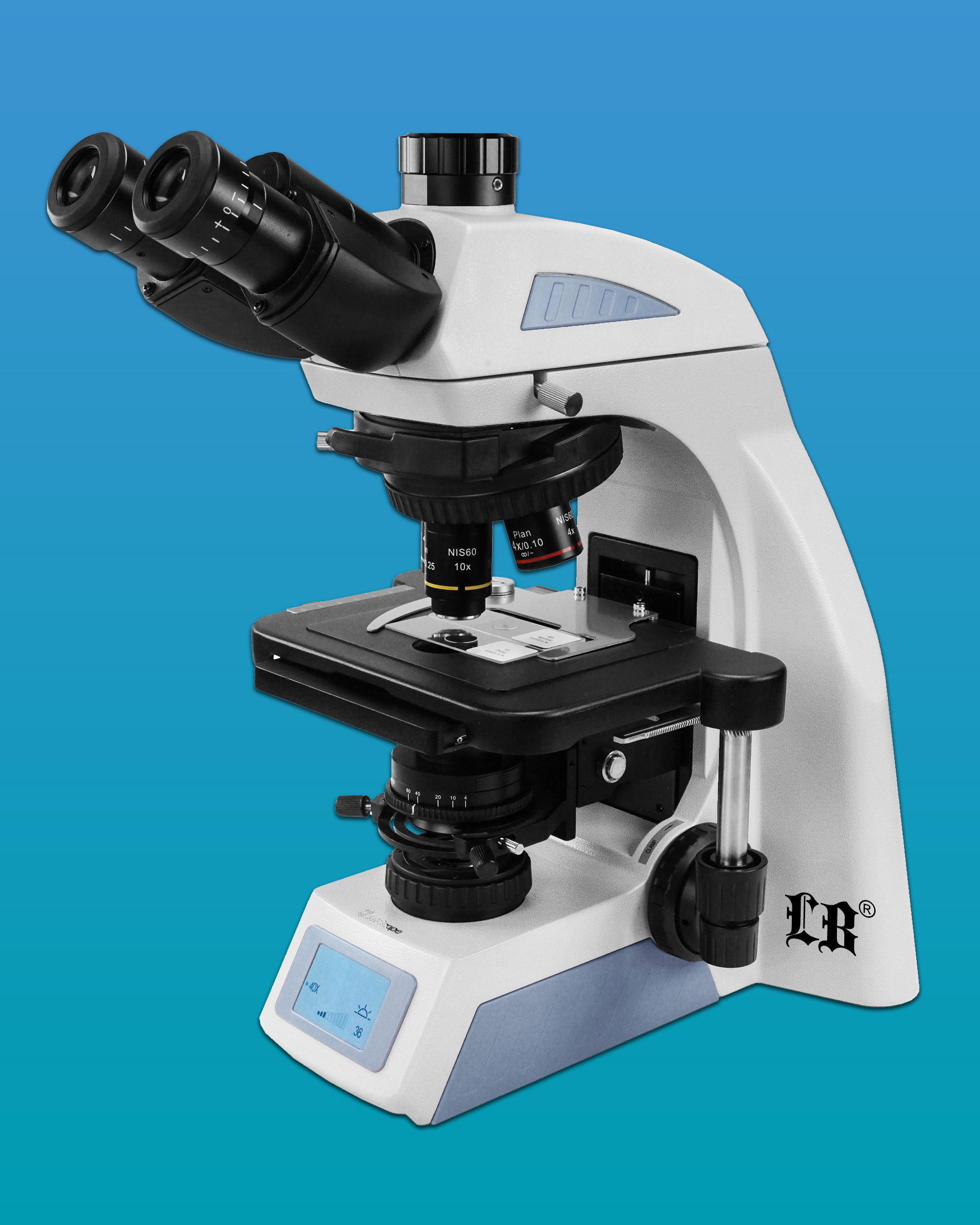

LB-279T Trinocular Biological Microscope w/ Infinite Optical System, Extra Wide Field Eyepiece & Backward Quintuple Nosepiece
LB-279T Trinocular Biological Microscope w/ Infinite Optical System, Extra Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscopes which is specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
-
Excellent Optical Design.
-
Infinite Plan Objectives.
-
This is an unbounded microscope.
-
Intelligent operating system.
-
Easier to store and transport.
-
Ergonomic Design.
|
Top
of the Page
Technical Specifications
Applications
LB-279T Trinocular Biological Microscope w/ Infinite Optical System, Extra Wide Field Eyepiece & Backward Quintuple Nosepiece is ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
| Item |
Specification |
| Optical System |
Infinite Optical System |
| Eyepiece |
Extra Wide Field Eyepiece EW10×/22mm |
| Viewing Head |
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm |
| Objective |
NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm) |
| NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm) |
| NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm) |
| NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10, W.D.:0.2mm) |
| Nosepiece |
Backward Quintuple Nosepiece(Coding) |
| Stage |
Rackless stage, Size 230×150mm, Moving Range 78×54mm |
| Condenser |
Inserted Abbe Condenser NA1.25(Including Empty Plate) |
| Focusing |
Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm |
| Illumination |
3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.) |
| Fluorescent Attachment |
3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination |
| Filter |
Green |
| Package |
1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg |
Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
|
