LB-343 Digital LCD Stereo Measuring Microscope
(5.0MP, with measuring function)
with 9 inch HD LCD screen with HD video and HDMI output

LB-343 Digital LCD Stereo Measuring Microscope (5.0MP, with measuring function) with 9 inch HD LCD screen with HD video and HDMI output has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging, a high resolution LCD screen and an accurate measurement stage. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope for a long time. It features high resolution of LCD display to generate genuine photos and videos. This unit integrates X/Y digital micrometer and moving measuring stage for measuring functions.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • It features a high resolution LCD screen to reverting genuine photo and video. This product integrates
    magnification, imaging, display, measurement and built-in LED illumination functions.
  • X/Y digital micrometer and moving stage for accurate measuring.
  • 9 Inches HD screen (1280×800) real-time display and no need to connect to computer.
  • Built in 5 Mega digital professional camera and integration of capture, video and storage.
  • 720P/30fp HD video and HDMI Output.
  • Images and videos can be stored in the SD card.

Top of the Page

Applications

LB-343 Digital LCD Stereo Measuring Microscope (5.0MP, with measuring function) with 9 inch HD LCD screen with HD video and HDMI output can be conveniently used to test and inspect product assembly, it also can be used in research and teaching fields.

Technical Specifications

LCD Screen

9 Inches HD TFT Screen

LCD Resolution

1280×800

Sensor Resolution

5 Mega Pixel(2560×1920)

Sensor Size

1/2.5 Inches

Photo Resolution

2560×1920 or 1600×1200

Video Resolution

720P/30fps

Photo/Video Playback

Yes

Data Output

HDMI

External Interface

Projector/Monitor

Language

English

Measurement

Crosshair

Positioning

Crosshair/Arrow Pointer

Coordinate Colors

Black/White/Red/Blue/Green

Date Mode

Year, Month, Day, Hour, Minute

Objectives

Continuing Zoom Range 0.7×~4.5×

Zoom Ratio

1:6.5

Total Magnification

9×-80×

Digital Magnifications

Field of View

16×12mm-2.45×1.8mm

Working Distance

With 1× objective, 100mm

Storage

SD Card (4G)

Exposure

Manual/Auto

White Balance

Manual/Auto

Color Mode

Color/Black&White/Negative

Top Illumination

Four-zone LED Ring Lighting Control

Measurement Stage

Moving range: 30mm*30mm
Measuring accuracy: 0.005mm

Voltage Input

100V-240V, 50Hz/60Hz

Optional Parts
(must be purchased separately)

Universal Stand

Precision Measuring Platform

Stage Micrometer

Bottom LED Light

0.5X objective

2X objective

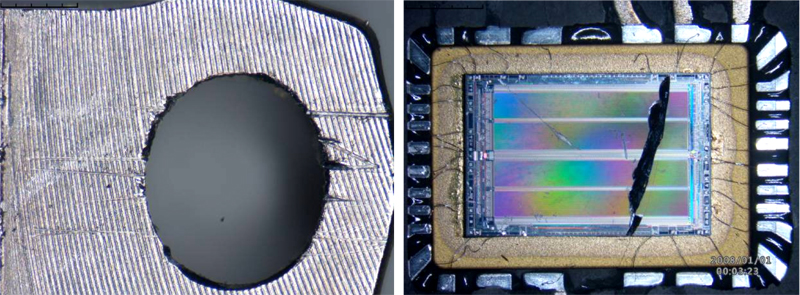

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
