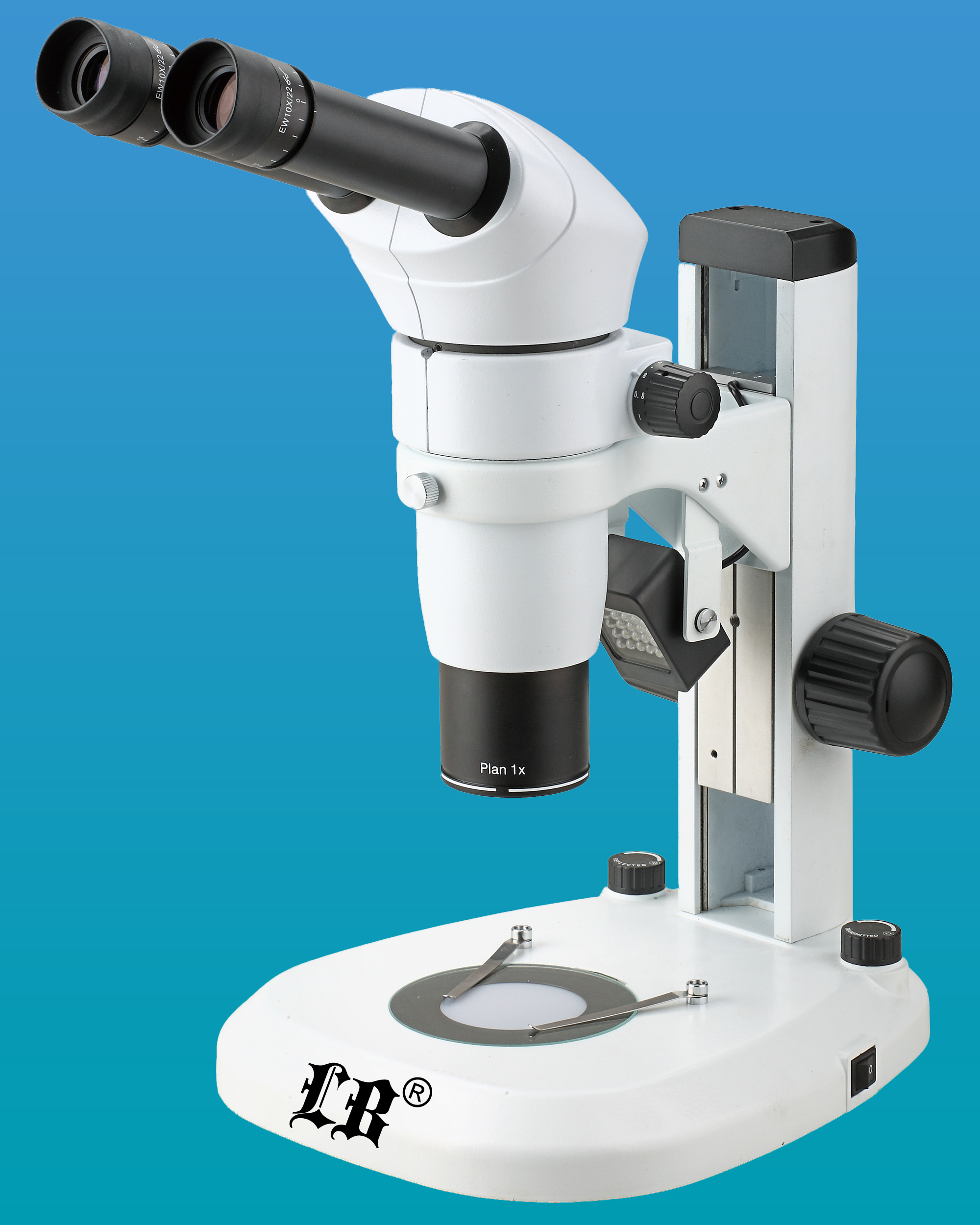

LB-360 Zoom Stereo Microscope with Infinity Parallel Zoom Optical System and LED Illumination


LB-360 Zoom Binocular Stereo Microscope with Infinity Parallel Plan Optical System
(Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes.
LB-360 Zoom Binocular Stereo Microscope with Infinity Parallel Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary LB-360 Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Top of the Page

Optional Accessories
(must be ordered separately)

Technical Specifications

Applications

LB-360 Zoom Binocular Stereo Microscope with Infinity Parallel Optical System and LED Illumination is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22

Zoom Objective

0.8×-6.4×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 8

Working Distance

78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable





Top of the Page

\

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
