Labomed Inc.

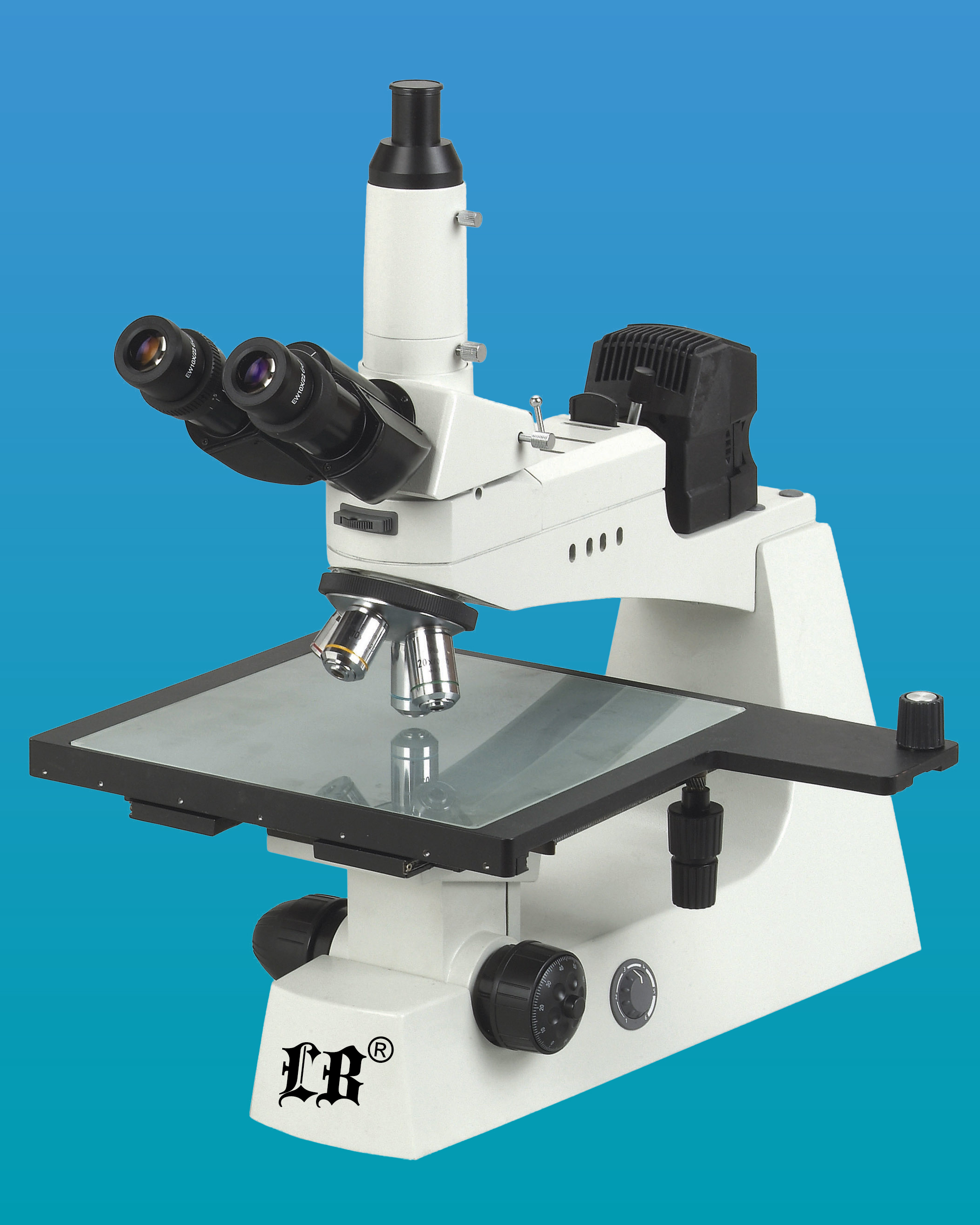

LB-400 Trinocular Industrial Inspection and Integrated Circuit Inspection Microscope with Infinity Optical System

LB-400 Trinocular Industrial Inspection and Integrated Circuit Inspection Microscope with Extra Wide Field and Infinity Plan Optical System (Infinity Color Corrected System) is specially designed for precise industrial inspection. It adopts an Infinity optical system and long working distance high-power objective lens. It provides an outstanding optical performance and available to IT industry, large-scale integrated circuits, chips observation and testing. It is stable, easy and comfortable to operate.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

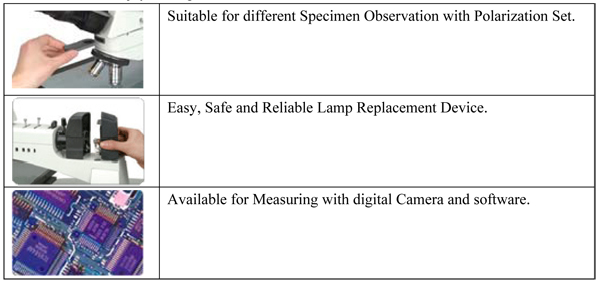

Features

  • Big Stage with Extra Large Moving Range 250×250mm.
  • Well designed structure, easy to operate. It is specially used in IT Industry for Large Area Integrated Circuits
  • Circuit, Wafer Observation and Inspection.
  • Excellent Optical Quality with Infinite Optical System
  • Stage Speedy Movement by Hand to Get Observation Point Immediately.
  • Comfortable and Enjoyable Operation with Low and Pre Position Control Knob.

Top of the Page

Technical Specifications

Applications

LB-400 Trinocular Industrial Inspection and Integrated Circuit Inspection Microscope with Infinity Optical System is specially used in IT Industry for Large Area Integrated Circuit, Wafer Observation and other industrial Inspection.

Viewing Head

Trinocular Head

Eyepiece

Extra Wide Field Eyepiece EW10X/ 22

Objective

Infinitive Plan Achromatic Objectives

4×/ 0.1     WD25.4mm

10×/ 0.25 WD11mm

20×/ 0.4 WD6mm

40×/ 0.6 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Stage 300×268mm/ 250×250mm

Focusing

Coaxial Coarse & Fine Adjustment, Range24mm

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

Filter

Blue, Green, Yellow and Ground Glass

Dimensions

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
