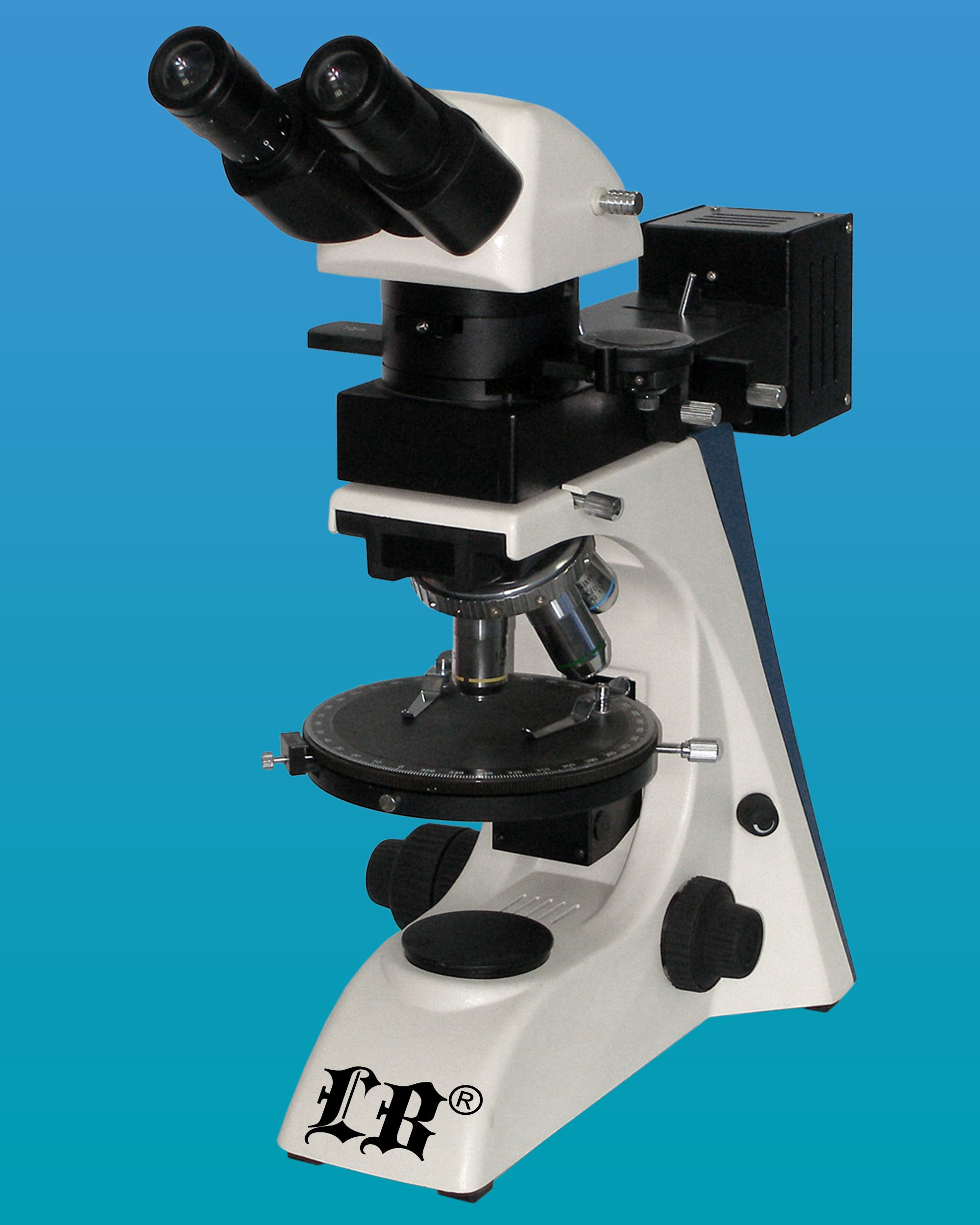

LB-530 Reflected Polarizing Binocular Microscope

with Wide Field and Bertrand Lens

with LWD Infinite Strain Free Plan Achromatic Objective 5x, 10x, 20x, 50x

The LB-530 Polarizing Binocular Microscope feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Excellent Infinite Optical System.
  • Widely used in geology, Mineralogy, Fossil fuel exploration.
  • Single polarization, othorgonal polarization or conoscopic observation is available.

Top of the Page

Technical Specifications

APPLICATION

The LB-530 Polarizing Binocular Microscope are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.

Item LB-530
Optical System Infinite Optical System
Viewing Head Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.
Eyepiece WF10×/20 mm
WF10×/20 mm (Reticule 0.1mm)
LWD Infinite Strain Free Plan Achromatic Objective (Reflected) 5×/0.13 (S)      W.D=24.23mm
10×/0.25 (S)      W.D=18.48mm
20×/0.40 (S)      W.D=8.35mm
50×/0.70 (S)     W.D=1.95mm
Nosepiece Backward Quintuple nosepiece, center adjustable
Analyzer Unit Rotatable 360°, module type, can be locked
Bertrand Lens Built In, Center Adjustable
Optical Compensator λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)
Revolving Round Stage Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
Focusing Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm
Reflecting Polarizing Unit  With field diaphragm, aperture diaphragm, polarizer,
12V/50W halogen lamp (Input voltage:100V~240V)
Filter Blue
Packing Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs



Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
