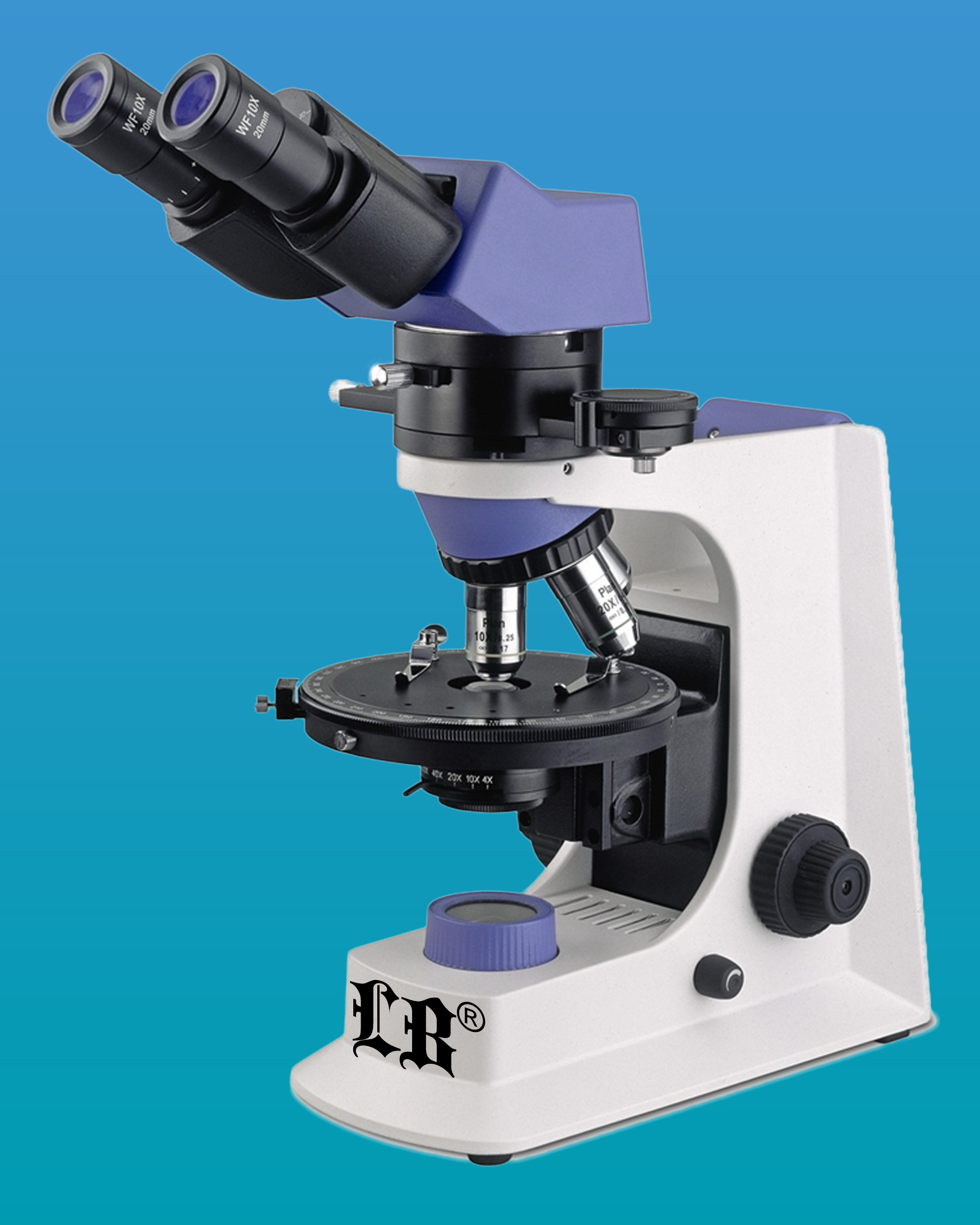

LB-540 Binocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System

LB-540 Binocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is equipped with a smooth, rotating, graduated stage and a set of polarizers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates. It is equipped with an infinite optical system, a comfortable viewing head and a set of Strain-free Infinity Plan Objectives which give a magnification range of 40X – 400X.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Color corrected infinity optical system.
  • Infinity strain free plan objectives, ensuring excellent resolution and clarity.
  • Center adjustable nosepiece and center adjustable rotating platform make the operation more accurate and reliable.

Top of the Page

LB-540 Binocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is an ideal instrument in the biological, histological, and pathological fields and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Technical Specifications

Optical system: Infinity color corrected optical system
Viewing Head: Seidentopf  Binocular head, inclined 30 degree, rotatable 360 degree, Interpupillary  distance 50-75mm.
Eyepiece: WF 10X/18mm
WF 10X/18mm (graticule 0.1mm)
Objective: Strain free plan objectives 4x, 10x, 20x, 40x(s)
Nosepiece: Center adjustable Quadruple nosepiece
Analyzing Unit: Rotatable 90 degree (Module type, can be locked)
Bertrand Lens: Inbuilt, Center adjustable
Optical components: λ slip first class red
¼ λ slip
(I-IV class) Quartz wedge
Stage: Revolving round stage, rotatable 360 degree, center adjustable, division 1 degree, Vernier division 6 degree
Condenser: Abbe N.A. 1.25 Non-stress
Polarizing unit: With scale rotatable 360 degree, can be locked
Illumination: 6V/20W Halogen Lamp OR can be supplied with LED Illumination
Filter: Blue (built-in)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
