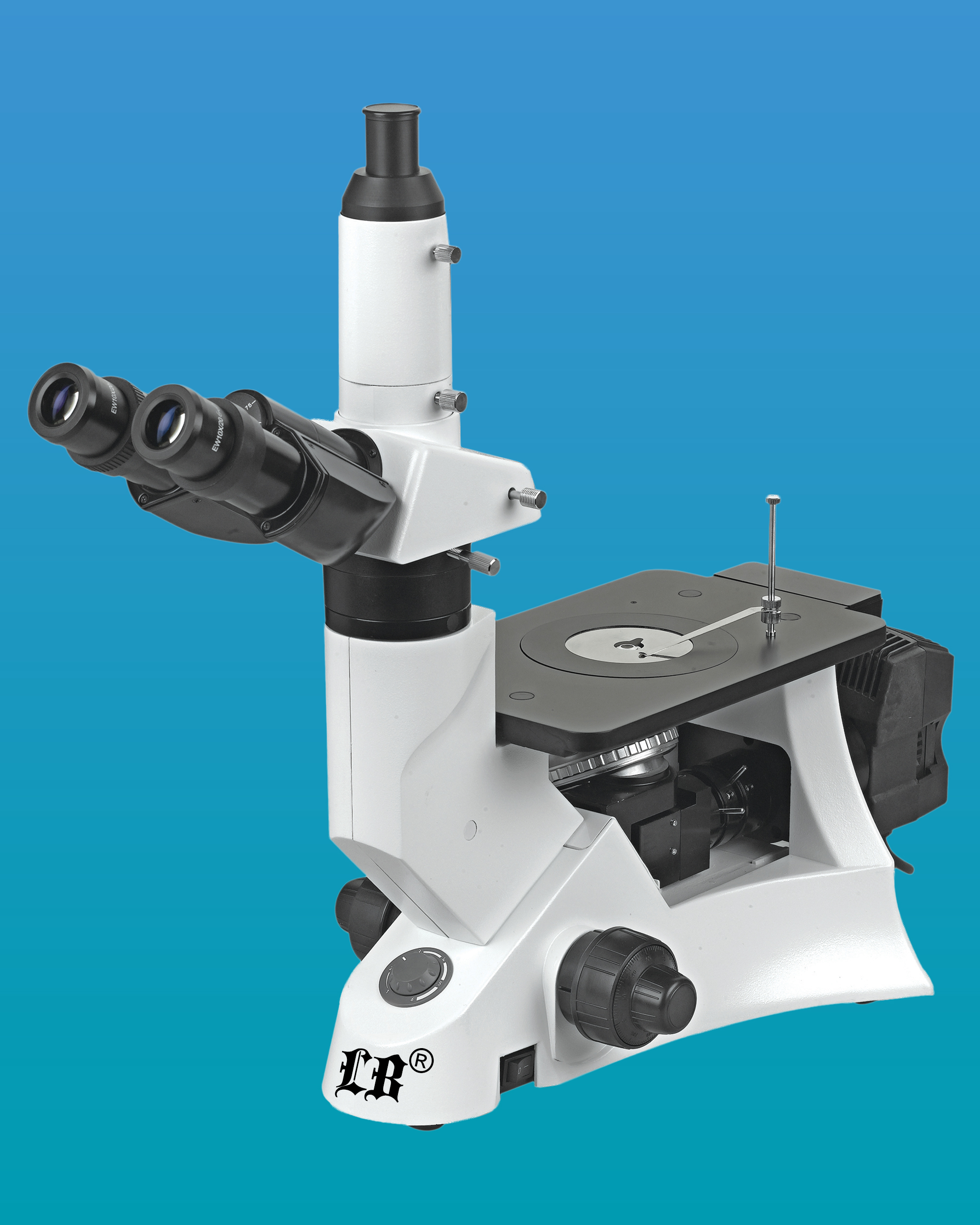

LB-602 Trinocular Inverted Metallurgical Microscope with Infinite Optical System

LB-602 Trinocular Inverted Metallurgical Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. To facilitate the users to save images such as metallographic analysis, and operational needs, LB-602 Trinocular Inverted Metallurgical Microscope with Infinite Plan Optical System can be fit to a imaging system with optional digital camera system, which makes the microscope to enlarge image analysis.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Infinitive optical system provides excellent optical functions.
  • With the stable stand structure, advanced stage design and comfortable operation.

Top of the Page

Technical Specifications

Applications

LB-602 Trinocular Inverted Metallurgical Microscope with Infinite Optical System is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Viewing Head

Trinocular head inclined at 30°, interpupillary distance 48-75mm

Eyepiece

High-point , extra wide field eyepiece EW10×/ 20

Infinite Plan Achromatic Objective

4×/ 0.1, 10×/ 0.25, 20×/ 0.40, 40×/ 0.60

Nosepiece

Quintuple nosepiece

Stage

Plain stage with slide clips

Focusing

Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation

Kohler Illumination

Halogen lamp 6V/ 30W

Filter

Blue, Yellow, Green and Frosted

Attachments Polarization Attachment

Dimensions

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
