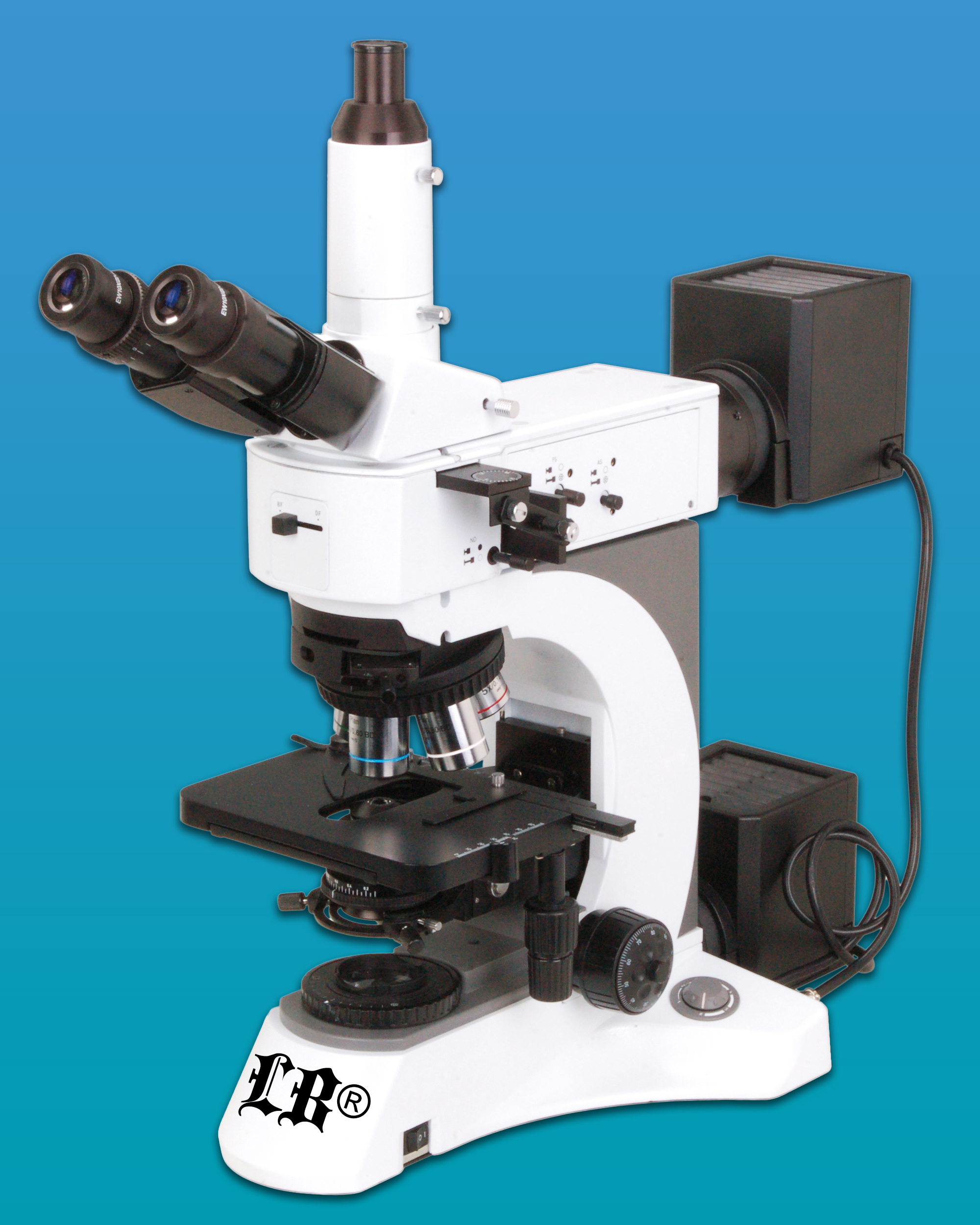

LB-615 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives with Reflected and Kohler Illumination

LB-615 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives, Extra Wide Field, Reflected and Kohler Illumination are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice. DIC observation attachment is optional for these microscopes to meet some special requirements.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Laboratory metallurgical microscope, including bright field, dark field and polarization observation system, DIC attachment is also optional.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.

Top of the Page

Technical Specifications

Applications

LB-615 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives, Extra Wide Field, Reflected and Kohler Illumination is widely used in institutes and laboratories to observe and identify the structure of various metals and alloys. It also can be widely used in the electronics, chemical and instrumentation industry to observe opaque materials and transparent materials, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Optical System:

Infinite optical system

Viewing Head:

Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm

Eyepiece:

Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm

Infinite Plan Achromatic Objective:

5×/ 0.12/∞/ - (BF/DF)   WD 12mm

10×/ 0.25/∞/ - (BF/DF)  WD 10.0mm

20×/ 0.4/∞/ 0 (BF/DF)   WD 4.3mm

50×/ 0.75/∞/ 0 (BF/DF)  WD 0.32mm

100×/ 0.8/∞/ 0 (BF/DF)  WD 2mm

Maximum Sample Height:

50mm

Reflected Light:

24V/100W Halogen light, Brightness adjustable

Kohler illumination and aspherical condenser

Blue, Green, Yellow and Frosted filter

Focusing:

Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Nosepiece: Backward quintuple nosepiece
Stage: Double layer mechanical stage(without hole) 186×138mm/ 74mm×50mm



Optional Accessories
(must be ordered separately)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
