Labomed Inc.

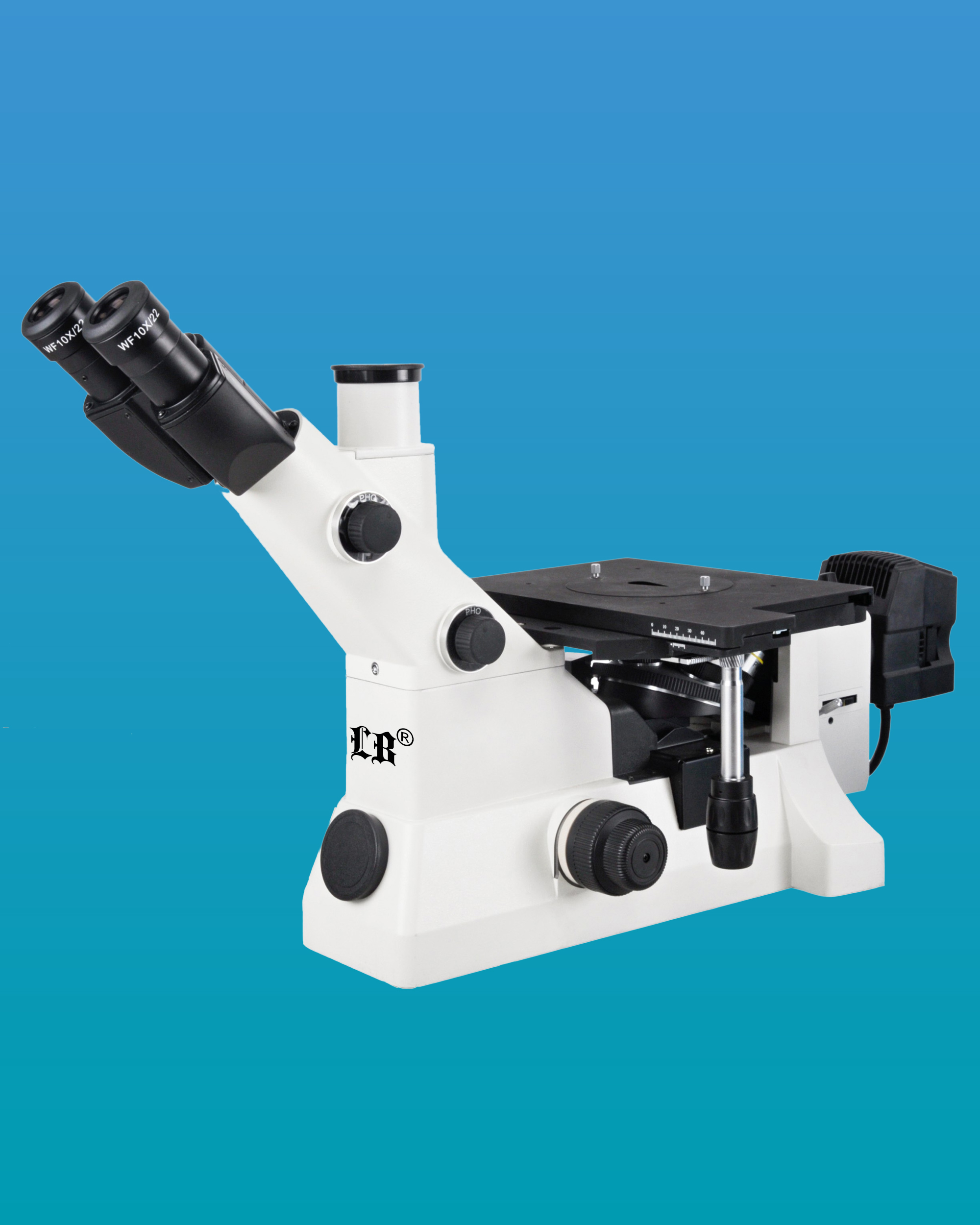

LB-619 Inverted Trinocular Metallurgical Microscope with Infinite Plan Optical System, Extra Wide Field and Kohler Illumination

LB-619 Inverted Trinocular Metallurgical Microscope with Infinite Plan Optical System (Infinity Color Corrected System), Extra Wide Field and Kohler Illumination can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Infinite optical system provides excellent optical functions.
  • DIC observation is optional.
  • Meet most of your requirements by high performance optical system, technological innovation and high stability.

Top of the Page

Technical Specifications

Applications

LB-619 Inverted Trinocular Metallurgical Microscope with Infinite Plan Optical System, Extra Wide Field and Kohler Illumination can be used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Optical System

Infinite optical system

Viewing Head

Seidentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm

Extra Wide Field Eyepiece

EW10×/ 22

EW10×/ 20 Eyepiece with scale of cross hair

Infinite LWD Plan Achromatic Objective

5×/0.12/∞/0 (BF/DF)    LWD 10.0mm

10×/0.25/∞/0 (BF/DF)   LWD 10.0mm

20×/0.40/∞/0 (BF/DF)   LWD 5.0mm

50×/0.75/∞/0 (BF/DF)   LWD 1.3mm

100×/0.90/∞/0 (BF/DF)  LWD 0.7mm

Nosepiece

Backward quintuple nosepiece

Stage

Double layer mechanical stage 226×178mm, Moving range 40mm×40mm

Small stage plate, Φ20mm, Φ30mm,

Focusing

Coaxial coarse & fine adjustment, fine division 2μm, move up 1mm, down 7mm

Kohler Reflected Illumination

12V/50W Halogen lamp, center and brightness adjustable

Polarizer and analyzer

Built-in Green, Blue, Yellow, Gray and Frosted filters

Optional Accessories (must be purchased separately)

Micrometer scale 0.01mm
Photo Attachment
Video Attachment with C Mount

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
