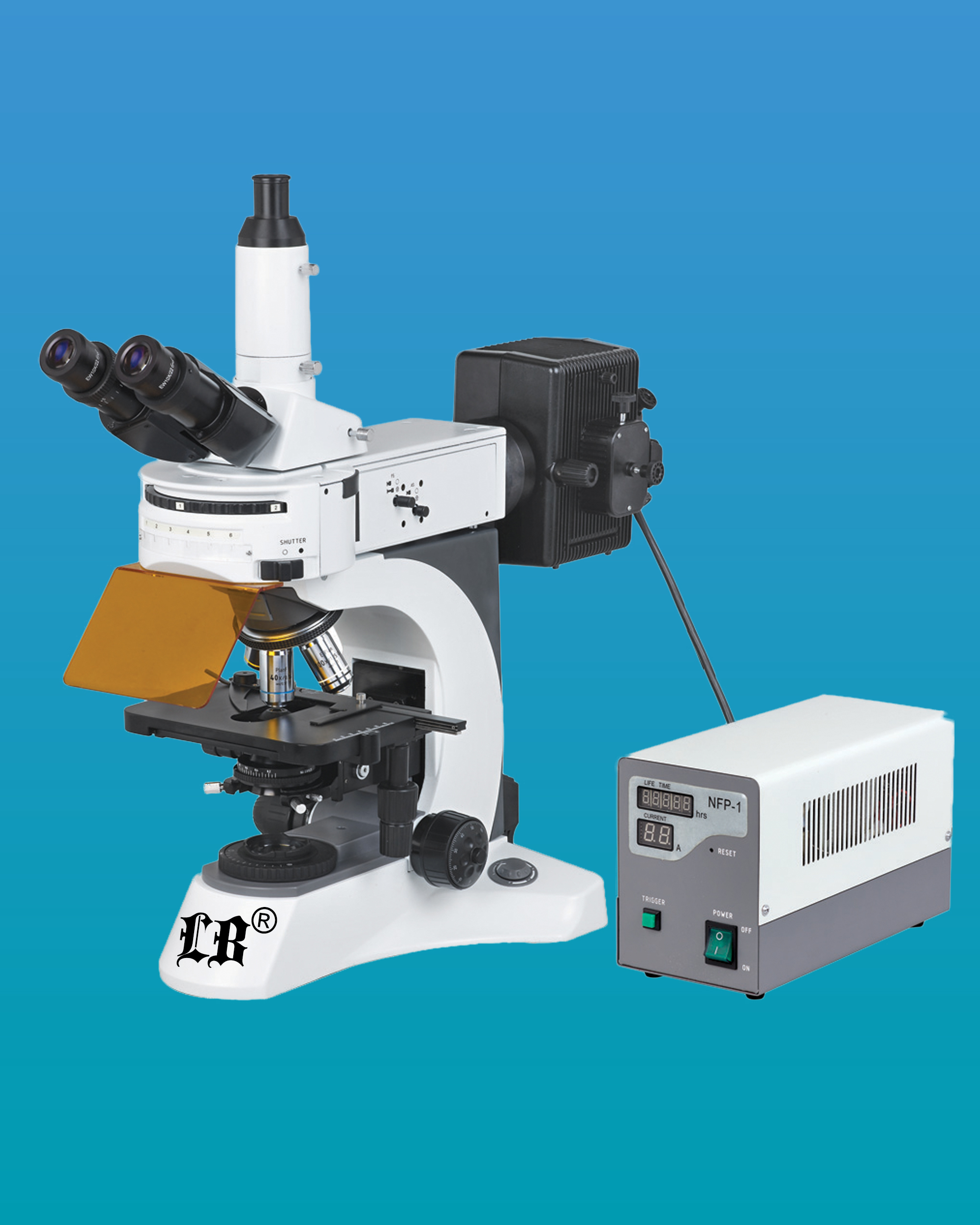

LB-701 Trinocular Upright Flourescent Biological Microscope with Infinite Optical System

LB-701 Trinocular Upright Fluorescent Biological Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.

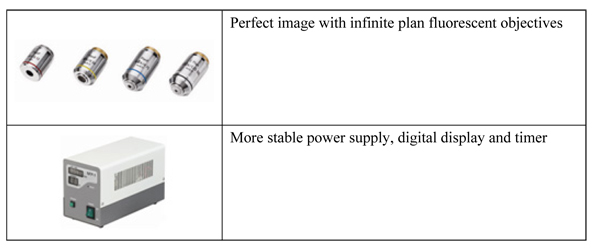

  • Perfect image with infinite plan fluorescent objective.
  • More stable power supply, digital display and timer.




Top of the Page



Technical Specifications

Applications

LB-701 Trinocular Upright Fluorescent Biological Microscope with Infinite Optical System is used to study the absorbing, transportation, chemical distribution, and positioning in cells. It is widely used in disease examination and immune diagnosis.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10×/22

Nosepiece

Backward Quintuple Nosepiece

Objective

Infinite Plan Achromatic Objective 4× 10× 40× 100×

Condenser

Swing Condenser NA 0.9/ 0.25

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

Kohler Illumination

External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W

Reflected Light Source



Excitation

Dichroic

Mirror

Barrier

Filter

Blue excitation

BP460~490

DM500

BA520



Green excitation

BP510~550

DM570

BA590



Lamp

100W HBO Ultra Hi-voltage Spherical Mercury Lamp

Protection barrier

Barrier to Resist the Ultraviolet Light

Power Supplier

Power Supplier NFP-1, 220V/ 110V interchangeable , Digital Display

Immersion Oil

Fluorescent Free Oil

Filter ND25 Filter (optional)
Ultraviolet Excitation Filter (optional)
Violet Excitation Filter (optional)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
