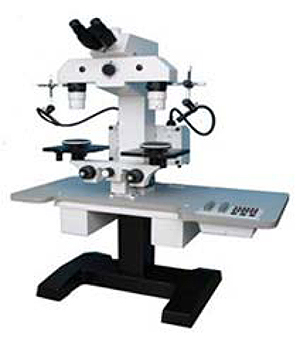

LBC-8 Digital Comparison Microscope

LBC-8 Digital Comparison Microscope is a high level Digital Comparison Microscope, it has a built-in digital image analysis system, it is basically used for forensic science and police departments. It is also provided to these departments such as police training schools, banks, tax, print, coinage, archaeology and etc.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.



Features

• 3Megapixel CCD camera, supports USB/VGA/AV/DAI output, has camera connector
• 9×-118× (Can be expanded to 2.7×-236×) Optical Magnification Range
• NC infrared optical enhancement system Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm

Top of the Page

Technical Specifications

Optical Magnification Range	9×-118× (Can be expanded to 2.7×-236×)
Eyepiece	WF10×/Ф24mm WF20×Ф12.5mm
Objective	0.7×～4.5× zoom，zoom ratio is 1：6.5
Field of view Diameter	Ф0.6mm～Ф92mm
Built-in image capture system	3Megapixel CCD camera, supports USB/VGA/AV/DAI output, has camera connector
NC infrared optical enhancement system	Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm
Working Distance	95mm
Object Stage	180mm×180mm, moving range: 80mm×80mm, vertically 70mm
Horizontally Moving Range	45mm
Power-driven Elevating Range	Whole stage 170mm, Bridge 70mm
Illumination	24V 300W cold light source, adjustable
Power Supply	220V AC input, 12V/24V DC stable Voltage Output, fit for International safety standard
Optional Accessories	0.3×, 2× Objective
	Bullet marks Analyzer
	Digital Camera Connector
	Folding Laptop Stand

Sample Images
