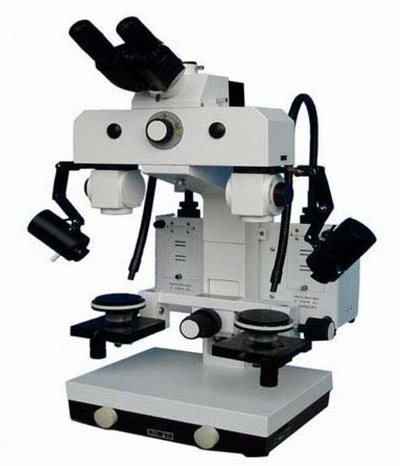

LBC-6 Digital Comparison Microscope

LBC-6 Digital Comparison Microscope has a built-in digital image analysis system, it is basically used for forensic science and police departments. It is also provided to these departments such as police training schools, banks, tax, print, coinage, archaeology and etc.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.



Features

• 3Megapixel, supports USB/VGA/AV/DAI output, has camera connector
• 2.5×-120×Optical Magnification Range

Top of the Page

Technical Specifications

Optical Magnification Range	2.5×-120×
Eyepiece	WF10× /Ф22mm ，WF20×/Ф14mm
Objective	0.6×, 1.2×, 2×, 3.5×, 5×(0.3×, 2.0×optional)
Field of view Diameter	Φ2.5mm～Φ90mm
Built-in image capture system	3Megapixel, support USB/VGA/AV/DAI output, have camera connector
Working Distance	100mm
Object Stage	100mm×100mm, moving range: 50mm×50mm, vertically 50mm
Horizontally Moving Range	50mm
Coarse Elevating Range	50mm
Illumination	300W cold light source
Power Supply	220V AC input, 24V DC stable Voltage Output, fit for International safety standard

Sample Images
