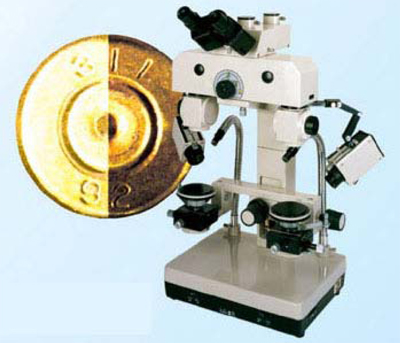

LBC-5B Comparison Microscope

LBC-5B Comparison Microscope is basically used for forensic science and police departments. It is also provided to these departments such as police training schools, banks, tax, print, coinage, archaeology and etc.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

Top of the Page

Optional Attachments

Color Video Recording System	Matched with CCD color video recording head and professional monitor and video frequency print, to realize multi people observing images, discuss, study and images real-time output.
Images processing system	Matched with computer and images processing software, to realize intelligent dealing analyzing of images, and saving of analysis result, share or outputting of results to remote Internet.
Images photographing system	Optic or digital camera and video recording camera of various types.

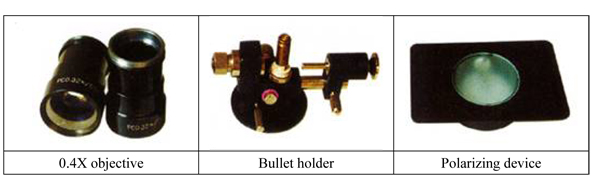

0.4X wide view field low magnification objectives	Use with 10X standard eyepiece, objectives vision field nears Φ60mm.
Bullet holder	Used for observation of warhead and shellcase.
Trans-illumination	Use for observation of transparent and semi transparent objectives
Polarization	Wipe away stray light
Light	Use some objectives with deep hole trace, small trace or with smooth surface

Accessories

Technical Specifications

Optical Magnification Range	3.1×-120×
Eyepiece	10×,16×, 25×
Objective	0.64×, 1×, 1.6×, 2.5×, 4×, 0.4×(Optional)
Bridge Magnification	1.2×
Photograph Magnification	3×
Video Magnification	0.44×
Working Distance	100mm
Object Stage	70mm×70mm, moving range: 51mm×51mm, vertically 54mm
Horizontally Moving Range	45mm
Coarse Elevating Range	49mm
Illumination	12V 50W Halogen, adjustable, air-blast strong light source
Cold Light Source	12V 50W, adjustable, Φ10mm
Power Supply	220V AC input, 12V DC stable Voltage Output, fit for International safety standard
