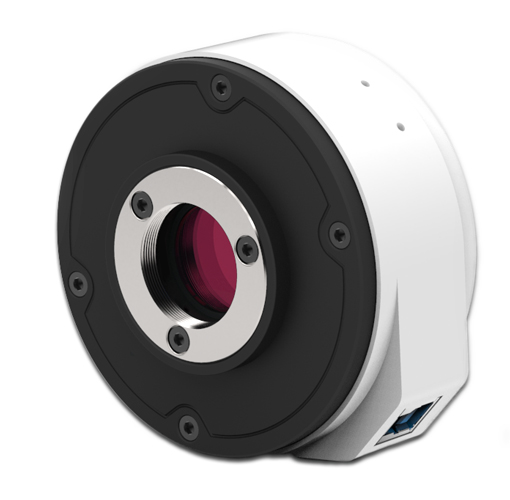

LC-20 USB2.0 Industrial Color Digital Camera
(14.0MP, Frame Buffer)

LC-20 USB2.0 Industrial Color Digital Cameras (14.0MP, Frame Buffer) have hardware frame buffer, the speed is much higher than common digital cameras. LC-20 digital cameras are widely used in machine vision and a variety of image acquisition areas.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

    • Multiple  mounting  angles,  suitable  for  all  kinds  of  industrial  production equipments’ installation requirements;
    • Real industrial Color/mono CMOS image sensor with high sensitivity, high dynamic range, no compression, no interpolation. 0.36 mega-pixel digital camera is global shutter, other digital cameras are rolling shutter;
    • With board frame buffer, double buffer preview, real-time acquisition with external trigger;
    • High-speed USB2.0 interface, up to 480Mb/s;
    • Support extraction modes, users can choose AOI area(Area of Interest), the image frame rate is greatly speeded up after the extraction;
    • Separate image capture and preview, support high-speed preview, high-quality acquisition;
    • Support SKIP2/SKIP4/SKIP8 extraction modes, the image frame rate multiplied after the extraction;
    • The brightness of all modes and resolution switch is the same;
    • Gamma correction, extended RGB gain, color reproduction more realistic;
    • Support for still image capture (JPG, BMP), image color is rich and vivid;
    • Support 8-bit, 24-bit, 32-bit bitmap preview and capture(Mono camera support 8-bit bitmap);
    • Support uncompressed, compressed videos:
    • Provide completed API for users’ Secondary development, provide Demo Source Code;
    • Hardware automatic gain control (AGC) and Exposure Control (AEC);
    • Software auto white balance, auto exposure, continuous auto exposure control;
    • Users can program to control white balance and exposure area;
    • Support the plug recovery during acquisition and preview;
    • Support firmware upgrade on-line;
    • Plug and play, dispense with external power supply;
    • Support Windows XP / Vista / 7 Operation System;
    • Support VC, VB, DELPHI, LABVIEW and other development language;
    • Fix the USB cable on the camera with bolt, USB cable can not fall off;
    • Support Twain;
    • Support for standard C-mount lenses and all kinds of customized lenses;
    • Durable aluminum alloy shell;
    • Support external trigger acquisition and flash light control.


Top of the Page

Applications

  • License image capture
  • Medical diagnosis
  • Microscope system
  • Notes image capture
  • Industrial production line image capture
  • Fingerprint, palm print image capture
  • Public Security investigation image capture
  • Desktop images, portraits, iris image capture
  • High speed vehicle license plate capture



Technical Specifications

Model

LC-20

Description

USB2.0 colorful CMOS 14.0MP industrial digital camera with board frame buffer

Image Sensor

1/2.3 inch, colorful 14.0MP CMOS Image Sensor

Pixel Size

1.4μm×1.4μm

Spectral Response

400nm~1000nm

Sensitivity

0.724V/lux-sec@550nm

Scan Mode

Progressive Scan

Exposure Mode

Electronic rolling shutter

Max Resolution

4608×3288

Frame Rate

2.5fps@4608×3288
6fps@4608×3288(SKIP2)
11.5fps@4608×3288(SKIP4)

White Balance

Auto / Manual

Exposure Control

Auto / Manual, software/hardware

Image Output

USB2.0, 480Mb/s

Power

USB2.0 Power Supply, 500mW

Dynamic Range

65.3dB

Signal-to-Noise

34dB

Programmable control

Image size, Contrast, brightness, gain, exposure time

Software Function

Image display, image processing, video

Working Temperature

0°C~70°C

Accessories

Equipped with standard infrared filter, C/CS mount connecting ring, 2m USB cable, 1 CD with software and SDK

Camera Net Weight

200g

Camera Dimension

62mm×62mm×45mm (length × width × height)

Box Dimension

118mm×108mm×96mm (length × width × height)



Spectral Response Curve

Shell Dimensions

Module Dimensions
